SDO HMI 2014-07-03 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.63 | 589.64 | 152.18 | 797.22 | -7.84 | 219.53 | -67.59 | 99.75 | 0.9295 | 193.6 | 16.6 | |
|
previous
or next observation for the same group /

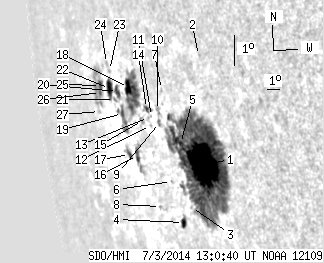

back to the solar disc SDO HMI 2014-07-03 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.12 | 428.02 | 92.79 | 533.58 | -8.34 | 221.62 | -65.50 | 100.52 | 0.9174 | 595.3 | 143.8 | |
| 0.00 | 1.09 | 0.00 | 1.30 | -4.95 | 222.13 | -64.99 | 96.89 | 0.9111 | -303.0 | -178.5 | |
| 0.00 | 0.73 | 0.00 | 0.96 | -9.75 | 220.17 | -66.95 | 101.84 | 0.9282 | -276.0 | -254.4 | |
| 3.63 | 6.09 | 4.98 | 8.33 | -10.26 | 219.30 | -67.82 | 102.27 | 0.9340 | 67.6 | 49.3 | |
| 1.18 | -1.00 | 1.55 | -1.00 | -7.77 | 220.03 | -67.09 | 99.70 | 0.9275 | 149.4 | 999999 | |
| 0.00 | 0.73 | 0.00 | 1.01 | -9.01 | 218.83 | -68.29 | 100.88 | 0.9359 | -443.0 | -442.5 | |
| 0.00 | 0.91 | 0.00 | 1.24 | -6.15 | 218.97 | -68.15 | 97.85 | 0.9331 | -345.0 | -351.5 | |
| 0.00 | 1.09 | 0.00 | 1.62 | -9.86 | 217.50 | -69.62 | 101.60 | 0.9443 | -461.0 | -458.2 | |
| 0.00 | 2.73 | 0.00 | 3.82 | -7.20 | 218.48 | -68.64 | 98.91 | 0.9367 | -272.0 | -284.8 | |
| 0.00 | 4.00 | 0.00 | 5.59 | -6.83 | 218.43 | -68.69 | 98.51 | 0.9368 | 83.0 | 0.9 | |
| 0.00 | 0.27 | 0.00 | 0.39 | -7.05 | 217.84 | -69.28 | 98.67 | 0.9405 | 178.0 | 184.3 | |
| 0.00 | 1.09 | 0.00 | 1.58 | -7.33 | 217.65 | -69.47 | 98.96 | 0.9417 | -472.0 | -374.6 | |
| 0.00 | 0.64 | 0.00 | 0.93 | -7.09 | 217.56 | -69.56 | 98.69 | 0.9421 | -70.0 | -123.7 | |
| 1.64 | 5.45 | 2.39 | 7.95 | -6.82 | 217.47 | -69.65 | 98.39 | 0.9425 | -15.6 | -86.6 | |
| 0.00 | 3.27 | 0.00 | 4.92 | -7.21 | 216.97 | -70.15 | 98.76 | 0.9455 | -295.0 | -253.7 | |
| 3.63 | 13.08 | 5.75 | 20.63 | -8.35 | 216.05 | -71.07 | 99.85 | 0.9512 | -502.6 | -442.4 | |
| 1.91 | 5.54 | 3.15 | 9.19 | -8.36 | 215.26 | -71.86 | 99.77 | 0.9553 | -438.7 | -352.5 | |
| 7.63 | 47.96 | 12.03 | 74.41 | -6.25 | 215.99 | -71.13 | 97.64 | 0.9504 | -545.4 | -528.0 | |
| 2.27 | 14.72 | 3.76 | 24.37 | -7.10 | 215.09 | -72.03 | 98.44 | 0.9555 | -562.2 | -516.5 | |
| 3.72 | 6.36 | 6.24 | 10.65 | -6.43 | 214.83 | -72.28 | 97.72 | 0.9565 | -558.1 | -477.6 | |
| 0.00 | 1.73 | 0.00 | 2.95 | -6.70 | 214.42 | -72.70 | 97.96 | 0.9587 | -383.0 | -406.4 | |
| 7.18 | 11.45 | 12.58 | 20.07 | -6.38 | 214.01 | -73.10 | 97.59 | 0.9605 | -198.0 | -102.4 | |
| 0.00 | 1.45 | 0.00 | 2.51 | -5.81 | 214.22 | -72.90 | 97.02 | 0.9593 | -163.0 | -153.8 | |
| 0.00 | 1.45 | 0.00 | 2.54 | -5.61 | 213.96 | -73.15 | 96.79 | 0.9604 | -168.0 | -137.1 | |
| 2.63 | 28.61 | 4.91 | 54.41 | -6.34 | 213.03 | -74.08 | 97.46 | 0.9651 | -213.6 | 201.3 | |
| 1.09 | -25.00 | 2.05 | -25.00 | -6.56 | 212.94 | -74.17 | 97.68 | 0.9656 | -138.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 2.27 | -7.17 | 212.56 | -74.56 | 98.27 | 0.9675 | 242.0 | 210.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
