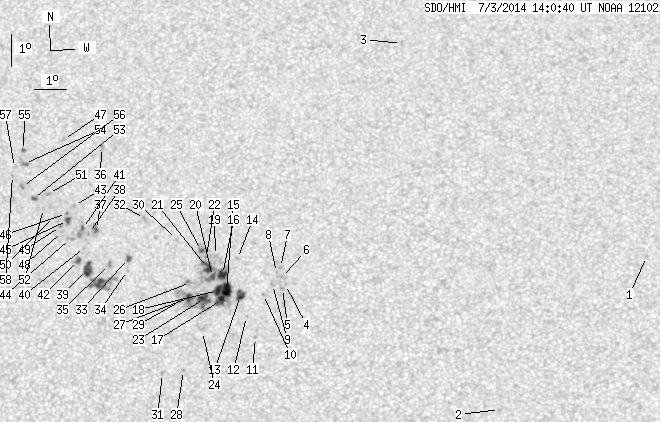

SDO HMI 2014-07-03 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.38 | 261.66 | 36.69 | 133.02 | 12.14 | 277.60 | -8.96 | 104.71 | 0.2222 | -292.3 | -38.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 0.96 | 12.47 | 292.51 | 5.95 | 328.13 | 0.1925 | -845.0 | -560.0 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 7.80 | 287.89 | 1.33 | 344.29 | 0.0850 | -946.0 | -782.4 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 19.16 | 284.81 | -1.76 | 5.99 | 0.2790 | -723.0 | -612.6 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 11.63 | 281.25 | -5.32 | 31.51 | 0.1745 | -853.0 | -667.5 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 11.50 | 281.15 | -5.41 | 32.33 | 0.1735 | -1102.0 | -848.2 | |
| 0.00 | 3.54 | 0.00 | 1.78 | 11.84 | 281.12 | -5.45 | 31.47 | 0.1788 | -977.0 | -776.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.15 | 281.08 | -5.49 | 30.74 | 0.1837 | -854.0 | -727.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 12.00 | 280.96 | -5.61 | 31.74 | 0.1825 | -728.0 | -641.5 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 11.63 | 280.84 | -5.73 | 33.41 | 0.1782 | -1070.0 | -794.3 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.32 | 280.56 | -6.00 | 35.67 | 0.1766 | -915.0 | -777.8 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.99 | 280.34 | -6.22 | 41.68 | 0.1613 | -873.0 | -692.4 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 10.64 | 280.05 | -6.52 | 40.39 | 0.1729 | -790.0 | -619.9 | |
| 5.63 | 8.08 | 2.84 | 4.07 | 11.28 | 279.85 | -6.72 | 38.88 | 0.1836 | -1160.6 | -811.1 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 12.42 | 279.72 | -6.84 | 35.68 | 0.2003 | -703.0 | -568.1 | |
| 11.17 | 75.66 | 5.64 | 38.23 | 11.43 | 279.40 | -7.16 | 40.13 | 0.1904 | -1297.3 | -723.2 | |
| 6.09 | -15.00 | 3.08 | -15.00 | 11.93 | 279.27 | -7.30 | 39.01 | 0.1984 | -1114.6 | 999999 | |
| 6.90 | -15.00 | 3.48 | -15.00 | 11.12 | 279.22 | -7.34 | 41.92 | 0.1885 | -1116.7 | 999999 | |
| 6.54 | -15.00 | 3.30 | -15.00 | 11.43 | 279.15 | -7.41 | 41.10 | 0.1932 | -1119.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 12.51 | 279.03 | -7.53 | 38.05 | 0.2086 | -136.0 | -135.2 | |
| 2.54 | -15.00 | 1.29 | -15.00 | 11.86 | 278.95 | -7.61 | 40.38 | 0.2010 | -1117.8 | 999999 | |
| 5.90 | -15.00 | 2.99 | -15.00 | 12.14 | 278.79 | -7.78 | 40.08 | 0.2064 | -980.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 12.48 | 278.75 | -7.82 | 39.16 | 0.2112 | -840.0 | -744.7 | |
| 6.99 | 43.23 | 3.53 | 21.85 | 11.18 | 278.72 | -7.84 | 43.58 | 0.1951 | -1097.1 | -504.7 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 10.17 | 278.68 | -7.88 | 47.62 | 0.1835 | -407.0 | -437.2 | |
| 1.09 | 5.45 | 0.55 | 2.76 | 12.66 | 278.58 | -7.98 | 39.17 | 0.2154 | -903.5 | -639.8 | |
| 0.00 | 5.27 | 0.00 | 2.67 | 11.67 | 278.27 | -8.30 | 43.44 | 0.2065 | -682.0 | -560.7 | |
| 4.09 | -23.00 | 2.07 | -23.00 | 11.21 | 278.25 | -8.32 | 45.12 | 0.2011 | -887.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 8.97 | 278.12 | -8.45 | 54.78 | 0.1784 | -861.0 | -630.9 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 11.09 | 277.94 | -8.63 | 46.61 | 0.2034 | -750.0 | -537.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.00 | 277.78 | -8.78 | 40.83 | 0.2285 | -833.0 | -553.2 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 8.87 | 277.46 | -9.10 | 57.16 | 0.1868 | -805.0 | -627.0 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 13.64 | 276.74 | -9.82 | 42.12 | 0.2482 | -717.0 | -556.1 | |
| 1.54 | 3.18 | 0.79 | 1.62 | 12.40 | 276.29 | -10.28 | 47.08 | 0.2390 | 1194.5 | 934.0 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 12.03 | 276.27 | -10.30 | 48.32 | 0.2351 | 888.0 | 697.1 | |
| 0.00 | 2.27 | 0.00 | 1.16 | 12.21 | 275.69 | -10.87 | 49.25 | 0.2445 | 1179.0 | 940.9 | |
| 0.00 | 3.00 | 0.00 | 1.55 | 15.84 | 275.26 | -11.30 | 40.46 | 0.2919 | 852.0 | 661.6 | |
| 1.00 | 4.36 | 0.51 | 2.24 | 13.29 | 275.23 | -11.34 | 47.14 | 0.2621 | 1071.3 | 879.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 13.16 | 274.98 | -11.58 | 48.11 | 0.2638 | 926.0 | 777.0 | |
| 7.81 | 35.06 | 4.00 | 17.91 | 12.05 | 275.00 | -11.57 | 51.46 | 0.2518 | 1150.0 | 897.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 12.73 | 274.87 | -11.69 | 49.65 | 0.2605 | 817.0 | 655.9 | |
| 0.64 | 6.90 | 0.33 | 3.55 | 13.31 | 274.78 | -11.78 | 48.14 | 0.2680 | 1061.6 | 880.6 | |
| 1.27 | 3.63 | 0.65 | 1.86 | 12.32 | 274.70 | -11.87 | 51.29 | 0.2586 | 883.9 | 652.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 14.02 | 274.49 | -12.08 | 46.85 | 0.2794 | 835.0 | 695.5 | |
| 0.00 | 3.00 | 0.00 | 1.54 | 13.00 | 274.41 | -12.15 | 49.90 | 0.2693 | 950.0 | 723.9 | |
| 1.82 | 3.27 | 0.94 | 1.69 | 13.56 | 274.29 | -12.28 | 48.59 | 0.2768 | 1193.5 | 984.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 13.77 | 274.24 | -12.32 | 48.09 | 0.2797 | 979.0 | 822.7 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 16.08 | 274.01 | -12.55 | 42.81 | 0.3086 | -750.0 | -607.6 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 13.21 | 274.14 | -12.42 | 49.88 | 0.2750 | 856.0 | 711.7 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 13.37 | 274.07 | -12.49 | 49.60 | 0.2776 | 924.0 | 779.8 | |
| 0.00 | 0.64 | 0.00 | 0.33 | 13.68 | 273.86 | -12.70 | 49.19 | 0.2835 | 749.0 | 595.7 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 14.39 | 273.63 | -12.93 | 47.79 | 0.2940 | 1019.0 | 841.9 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 13.92 | 273.50 | -13.07 | 49.31 | 0.2907 | 862.0 | 709.0 | |
| 0.82 | 3.36 | 0.42 | 1.74 | 14.23 | 273.16 | -13.41 | 49.20 | 0.2982 | 958.7 | 809.8 | |
| 0.00 | 4.54 | 0.00 | 2.37 | 15.31 | 272.80 | -13.77 | 47.19 | 0.3143 | 916.0 | 802.9 | |
| 0.54 | 1.82 | 0.28 | 0.95 | 15.72 | 272.74 | -13.83 | 46.34 | 0.3194 | 970.3 | 852.5 | |
| 0.00 | 2.36 | 0.00 | 1.23 | 14.60 | 272.78 | -13.79 | 49.01 | 0.3069 | 975.0 | 806.0 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 15.18 | 272.48 | -14.09 | 48.13 | 0.3168 | 712.0 | 552.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 14.93 | 272.43 | -14.13 | 48.84 | 0.3148 | 834.0 | 611.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
