SDO HMI 2014-07-03 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.53 | 455.49 | 52.88 | 257.93 | 15.41 | 260.18 | -26.39 | 62.83 | 0.4830 | -283.9 | -117.4 | |
|
previous
or next observation for the same group /

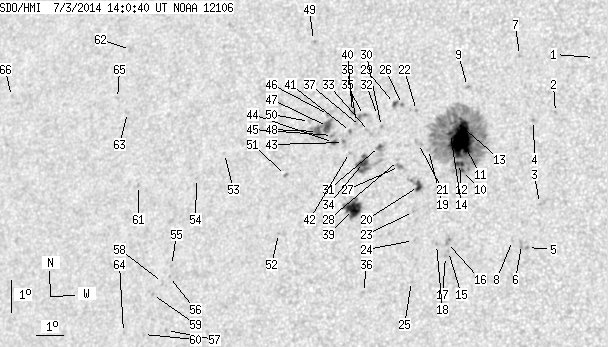

back to the solar disc SDO HMI 2014-07-03 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.60 | 18.45 | 266.00 | -20.57 | 51.23 | 0.4292 | -809.0 | -650.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 16.70 | 264.87 | -21.69 | 56.05 | 0.4286 | -869.0 | -741.4 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 13.85 | 264.63 | -21.93 | 62.35 | 0.4111 | -712.0 | -680.4 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 16.43 | 264.15 | -22.42 | 57.37 | 0.4361 | -794.0 | -632.1 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 12.48 | 264.36 | -22.21 | 65.70 | 0.4066 | -977.0 | -822.9 | |
| 0.00 | 3.18 | 0.00 | 1.73 | 12.57 | 264.15 | -22.42 | 65.68 | 0.4101 | -617.0 | -647.9 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 18.47 | 263.40 | -23.17 | 54.24 | 0.4618 | -740.0 | -605.6 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 12.69 | 263.83 | -22.73 | 65.69 | 0.4154 | -616.0 | -468.7 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 17.45 | 261.72 | -24.85 | 57.82 | 0.4756 | -668.0 | -423.2 | |
| 1.09 | 277.47 | 0.61 | 155.17 | 14.82 | 261.89 | -24.68 | 62.78 | 0.4557 | -859.4 | -342.5 | |
| 47.32 | -10.00 | 26.44 | -10.00 | 15.79 | 261.73 | -24.83 | 60.99 | 0.4640 | -1236.9 | 999999 | |
| 4.00 | -10.00 | 2.23 | -10.00 | 15.04 | 261.76 | -24.81 | 62.45 | 0.4588 | -1060.8 | 999999 | |
| 0.91 | -10.00 | 0.51 | -10.00 | 16.35 | 261.45 | -25.12 | 60.15 | 0.4715 | -340.8 | 999999 | |
| 1.63 | -10.00 | 0.92 | -10.00 | 15.97 | 261.32 | -25.24 | 60.99 | 0.4707 | -698.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 12.31 | 261.68 | -24.88 | 68.19 | 0.4446 | -812.0 | -710.3 | |
| 0.00 | 2.91 | 0.00 | 1.61 | 12.58 | 261.62 | -24.94 | 67.64 | 0.4469 | -852.0 | -753.1 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 12.15 | 261.60 | -24.97 | 68.58 | 0.4451 | -644.0 | -434.4 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 12.51 | 261.25 | -25.32 | 68.05 | 0.4519 | -841.0 | -779.1 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 15.45 | 260.62 | -25.94 | 62.58 | 0.4770 | 32.0 | -2.3 | |
| 3.81 | 9.45 | 2.14 | 5.31 | 14.29 | 260.42 | -26.15 | 65.00 | 0.4731 | -909.3 | -598.6 | |
| 0.00 | 4.36 | 0.00 | 2.46 | 15.63 | 260.24 | -26.32 | 62.53 | 0.4832 | -13.0 | -18.0 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 16.66 | 260.03 | -26.54 | 60.76 | 0.4925 | 821.0 | 694.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 13.51 | 260.34 | -26.23 | 66.61 | 0.4700 | -673.0 | -510.2 | |
| 0.00 | 0.45 | 0.00 | 0.25 | 12.62 | 260.44 | -26.13 | 68.37 | 0.4641 | -691.0 | -623.2 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 11.35 | 260.50 | -26.06 | 70.97 | 0.4576 | -756.0 | -460.8 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 16.84 | 259.50 | -27.07 | 60.86 | 0.5006 | 770.0 | 686.8 | |
| 0.00 | 3.54 | 0.00 | 2.01 | 14.90 | 259.67 | -26.89 | 64.36 | 0.4868 | 36.0 | -258.7 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 15.09 | 259.61 | -26.95 | 64.05 | 0.4887 | -290.0 | -370.6 | |
| 1.18 | 3.09 | 0.68 | 1.77 | 16.86 | 259.21 | -27.36 | 61.04 | 0.5046 | 804.1 | 640.7 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 16.13 | 258.85 | -27.71 | 62.65 | 0.5049 | 761.0 | 568.6 | |
| 1.00 | 6.63 | 0.57 | 3.79 | 15.51 | 258.87 | -27.69 | 63.79 | 0.5011 | 671.4 | 276.8 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 16.47 | 258.66 | -27.91 | 62.17 | 0.5095 | 667.0 | 507.1 | |
| 0.00 | 3.54 | 0.00 | 2.04 | 15.96 | 258.45 | -28.12 | 63.24 | 0.5094 | 530.0 | 630.2 | |
| 4.81 | 23.80 | 2.76 | 13.63 | 14.99 | 258.38 | -28.19 | 65.09 | 0.5051 | 1093.7 | 617.8 | |
| 0.00 | 4.36 | 0.00 | 2.52 | 16.46 | 258.15 | -28.41 | 62.56 | 0.5162 | 764.0 | 586.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 10.98 | 258.86 | -27.70 | 72.63 | 0.4801 | -671.0 | -526.1 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 16.11 | 258.10 | -28.46 | 63.22 | 0.5149 | 777.0 | 592.5 | |
| 0.00 | 2.00 | 0.00 | 1.16 | 16.23 | 257.94 | -28.63 | 63.11 | 0.5178 | 821.0 | 677.4 | |
| 16.53 | 24.16 | 9.45 | 13.81 | 13.53 | 258.22 | -28.35 | 67.95 | 0.5000 | -973.2 | -580.0 | |
| 0.00 | 2.63 | 0.00 | 1.53 | 16.54 | 257.74 | -28.82 | 62.70 | 0.5221 | 732.0 | 571.6 | |
| 0.45 | 1.63 | 0.26 | 0.95 | 15.95 | 257.76 | -28.80 | 63.75 | 0.5185 | 948.0 | 826.1 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 15.29 | 257.83 | -28.74 | 64.90 | 0.5141 | 853.0 | 660.2 | |
| 0.00 | 3.00 | 0.00 | 1.73 | 15.60 | 257.56 | -29.00 | 64.51 | 0.5193 | 1007.0 | 837.5 | |
| 1.63 | 3.09 | 0.95 | 1.79 | 15.59 | 257.20 | -29.36 | 64.76 | 0.5242 | 972.1 | 855.6 | |
| 0.00 | 2.18 | 0.00 | 1.27 | 15.81 | 257.13 | -29.43 | 64.42 | 0.5262 | 942.0 | 824.7 | |
| 0.00 | 1.73 | 0.00 | 1.01 | 16.46 | 256.88 | -29.68 | 63.43 | 0.5331 | 723.0 | 505.5 | |
| 5.36 | 23.71 | 3.13 | 13.86 | 16.08 | 256.91 | -29.66 | 64.07 | 0.5307 | 966.7 | 646.0 | |
| 3.81 | -47.00 | 2.23 | -47.00 | 15.92 | 256.57 | -30.00 | 64.58 | 0.5344 | 838.5 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.32 | 18.77 | 255.90 | -30.67 | 60.17 | 0.5588 | -517.0 | -529.0 | |
| 0.00 | 1.91 | 0.00 | 1.12 | 16.22 | 256.22 | -30.34 | 64.26 | 0.5405 | 610.0 | 494.5 | |
| 0.00 | 1.82 | 0.00 | 1.07 | 14.52 | 255.61 | -30.95 | 67.61 | 0.5405 | 766.0 | 665.0 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 12.72 | 255.62 | -30.95 | 70.84 | 0.5331 | -624.0 | -410.3 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 15.14 | 253.24 | -33.33 | 67.76 | 0.5751 | 466.0 | 501.3 | |
| 0.00 | 0.64 | 0.00 | 0.39 | 14.34 | 252.31 | -34.25 | 69.53 | 0.5842 | 657.0 | 585.7 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 11.62 | 251.79 | -34.77 | 74.27 | 0.5825 | 813.0 | 614.9 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 11.28 | 251.76 | -34.80 | 74.86 | 0.5820 | 797.0 | 681.2 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 9.62 | 251.86 | -34.70 | 77.67 | 0.5768 | 671.0 | 587.8 | |
| 0.00 | 1.63 | 0.00 | 1.00 | 11.09 | 251.52 | -35.04 | 75.26 | 0.5848 | 660.0 | 568.1 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 10.71 | 251.19 | -35.37 | 75.99 | 0.5884 | 722.0 | 623.1 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 9.47 | 251.01 | -35.56 | 78.13 | 0.5883 | 649.0 | 474.6 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 14.05 | 250.12 | -36.44 | 70.87 | 0.6121 | 746.0 | 586.2 | |
| 0.00 | 3.09 | 0.00 | 1.99 | 18.29 | 248.88 | -37.69 | 64.86 | 0.6434 | 572.0 | 461.9 | |
| 0.00 | 1.73 | 0.00 | 1.10 | 16.31 | 249.23 | -37.33 | 67.69 | 0.6314 | 720.0 | 535.8 | |
| 0.00 | 0.64 | 0.00 | 0.39 | 9.51 | 250.24 | -36.33 | 78.23 | 0.5990 | 556.0 | 419.4 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 16.73 | 248.73 | -37.83 | 67.25 | 0.6392 | 629.0 | 487.4 | |
| 0.00 | 1.18 | 0.00 | 0.81 | 16.65 | 244.33 | -42.23 | 68.98 | 0.6922 | 444.0 | 322.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
