SDO HMI 2014-07-03 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 26.32 | 0.00 | 14.30 | 6.20 | 263.33 | -22.68 | 81.45 | 0.3891 | 481.5 | 402.1 | |
|
previous
or next observation for the same group /

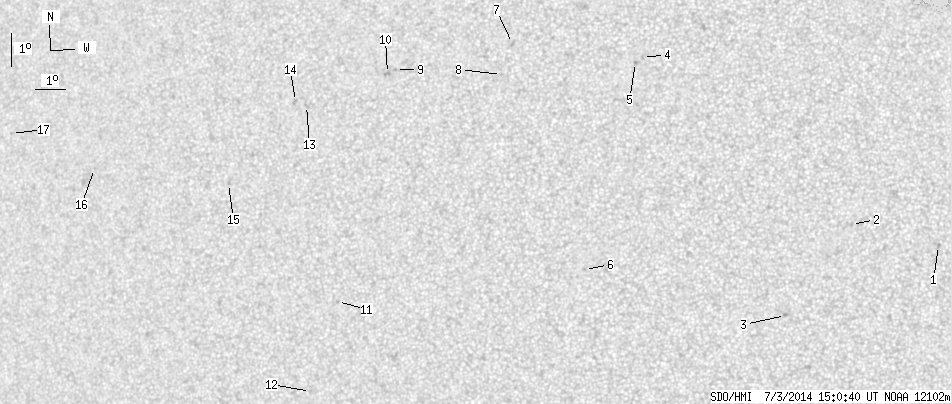

back to the solar disc SDO HMI 2014-07-03 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.77 | 3.64 | 278.82 | -7.19 | 85.72 | 0.1258 | -876.0 | -684.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 4.26 | 276.13 | -9.88 | 83.15 | 0.1732 | -848.0 | -633.0 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 1.47 | 274.10 | -11.91 | 97.67 | 0.2091 | -905.0 | -722.1 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 9.28 | 269.39 | -16.62 | 68.79 | 0.3041 | 789.0 | 637.5 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 9.13 | 269.17 | -16.84 | 69.51 | 0.3066 | 870.0 | 702.6 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 2.79 | 267.73 | -18.28 | 90.58 | 0.3146 | 785.0 | 521.7 | |
| 0.00 | 2.09 | 0.00 | 1.11 | 9.64 | 265.13 | -20.88 | 71.58 | 0.3720 | 815.0 | 637.6 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 8.69 | 264.82 | -21.19 | 74.28 | 0.3728 | 810.0 | 604.7 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 8.77 | 261.26 | -24.75 | 75.98 | 0.4282 | 818.0 | 631.6 | |
| 0.00 | 2.91 | 0.00 | 1.59 | 8.64 | 261.00 | -25.01 | 76.39 | 0.4318 | 890.0 | 733.2 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 1.65 | 259.59 | -26.42 | 92.58 | 0.4470 | 784.0 | 629.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -1.12 | 258.67 | -27.34 | 98.41 | 0.4661 | 645.0 | 505.5 | |
| 0.00 | 1.91 | 0.00 | 1.07 | 7.60 | 258.29 | -27.72 | 79.65 | 0.4706 | 779.0 | 592.0 | |
| 0.00 | 2.45 | 0.00 | 1.38 | 7.71 | 257.90 | -28.11 | 79.52 | 0.4768 | 766.0 | 624.9 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 5.15 | 255.70 | -30.31 | 85.13 | 0.5065 | 837.0 | 561.6 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 5.47 | 250.79 | -35.22 | 84.94 | 0.5785 | 638.0 | 530.5 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 6.44 | 247.53 | -38.48 | 83.58 | 0.6245 | 588.0 | 553.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
