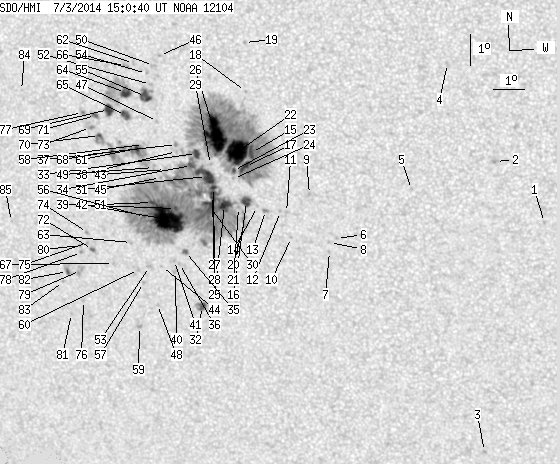

SDO HMI 2014-07-03 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 249.75 | 1311.15 | 134.22 | 705.56 | -11.30 | 268.25 | -17.76 | 129.54 | 0.3898 | 432.1 | 126.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.66 | -12.65 | 279.36 | -6.65 | 157.39 | 0.2954 | 847.0 | 617.4 | |
| 0.00 | 2.63 | 0.00 | 1.36 | -10.73 | 277.87 | -8.14 | 149.80 | 0.2777 | 902.0 | 730.9 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -20.07 | 277.12 | -8.89 | 159.74 | 0.4210 | 766.0 | 635.6 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -7.69 | 276.45 | -9.56 | 138.63 | 0.2501 | 844.0 | 698.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -11.64 | 275.20 | -10.81 | 144.10 | 0.3147 | 767.0 | 538.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -13.21 | 272.73 | -13.28 | 141.36 | 0.3598 | 827.0 | 656.8 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -13.63 | 272.48 | -13.53 | 141.58 | 0.3676 | 756.0 | 623.1 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -13.34 | 272.49 | -13.52 | 141.11 | 0.3638 | 606.0 | 547.4 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -11.83 | 271.94 | -14.08 | 137.13 | 0.3514 | 940.0 | 707.1 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -13.20 | 271.27 | -14.74 | 138.44 | 0.3749 | 670.0 | 532.7 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -12.41 | 271.16 | -14.85 | 136.74 | 0.3668 | 896.0 | 635.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -12.38 | 270.97 | -15.04 | 136.32 | 0.3686 | 887.0 | 696.5 | |
| 0.00 | 2.45 | 0.00 | 1.31 | -12.35 | 270.49 | -15.53 | 135.38 | 0.3738 | 1043.0 | 864.0 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -12.23 | 270.23 | -15.78 | 134.68 | 0.3753 | 736.0 | 560.1 | |
| 4.99 | 444.92 | 2.65 | 236.32 | -10.53 | 270.14 | -15.87 | 131.04 | 0.3580 | 1267.2 | 526.3 | |
| 6.36 | 608.48 | 3.40 | 329.50 | -12.08 | 269.89 | -16.12 | 133.77 | 0.3777 | 1108.8 | -190.1 | |
| 6.72 | -15.00 | 3.57 | -15.00 | -10.97 | 269.92 | -16.09 | 131.60 | 0.3654 | 1024.7 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -8.63 | 270.04 | -15.97 | 126.55 | 0.3400 | -598.0 | -435.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -7.11 | 270.07 | -15.94 | 122.79 | 0.3256 | 788.0 | 584.1 | |
| 0.00 | 8.45 | 0.00 | 4.53 | -12.71 | 269.78 | -16.23 | 134.80 | 0.3859 | 737.0 | 586.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -12.27 | 269.61 | -16.40 | 133.67 | 0.3830 | 739.0 | 631.6 | |
| 38.23 | -15.00 | 20.32 | -15.00 | -10.51 | 269.69 | -16.32 | 130.20 | 0.3633 | 1399.9 | 999999 | |
| 1.45 | -15.00 | 0.77 | -15.00 | -11.11 | 269.53 | -16.49 | 131.18 | 0.3716 | 591.3 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -11.36 | 269.51 | -16.50 | 131.68 | 0.3744 | 668.0 | 533.0 | |
| 10.90 | -16.00 | 5.85 | -16.00 | -12.21 | 269.16 | -16.85 | 132.79 | 0.3877 | 989.0 | 999999 | |
| 42.50 | -15.00 | 22.62 | -15.00 | -9.98 | 269.01 | -17.00 | 127.93 | 0.3667 | 1390.5 | 999999 | |
| 2.09 | -16.00 | 1.12 | -16.00 | -11.65 | 268.84 | -17.17 | 131.15 | 0.3856 | 986.3 | 999999 | |
| 6.54 | -16.00 | 3.51 | -16.00 | -11.90 | 268.79 | -17.22 | 131.57 | 0.3888 | 838.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -10.93 | 268.79 | -17.22 | 129.60 | 0.3788 | 837.0 | 662.6 | |
| 7.63 | -16.00 | 4.11 | -16.00 | -12.22 | 268.67 | -17.34 | 132.00 | 0.3936 | 364.4 | 999999 | |
| 16.17 | -16.00 | 8.67 | -16.00 | -11.31 | 268.64 | -17.37 | 130.13 | 0.3846 | 1044.7 | 999999 | |
| 3.91 | 8.08 | 2.15 | 4.44 | -15.45 | 268.18 | -17.83 | 136.96 | 0.4341 | 860.2 | 573.7 | |
| 4.54 | -16.00 | 2.43 | -16.00 | -10.59 | 268.36 | -17.66 | 128.20 | 0.3810 | 952.7 | 999999 | |
| 3.18 | -16.00 | 1.71 | -16.00 | -10.97 | 268.17 | -17.84 | 128.70 | 0.3870 | 629.1 | 999999 | |
| 1.45 | 2.91 | 0.79 | 1.59 | -13.70 | 267.77 | -18.24 | 133.32 | 0.4197 | -1112.2 | -855.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -14.08 | 267.54 | -18.47 | 133.65 | 0.4264 | -837.0 | -682.9 | |
| 0.00 | 1.91 | 0.00 | 1.02 | -10.32 | 267.72 | -18.29 | 126.66 | 0.3865 | 808.0 | 686.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -10.54 | 267.71 | -18.30 | 127.10 | 0.3888 | 583.0 | 380.2 | |
| 1.73 | -16.00 | 0.94 | -16.00 | -12.34 | 267.55 | -18.46 | 130.46 | 0.4083 | -1128.1 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.30 | -14.34 | 267.39 | -18.62 | 133.86 | 0.4309 | -714.0 | -656.4 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -13.99 | 267.38 | -18.63 | 133.25 | 0.4272 | -884.0 | -589.0 | |
| 51.86 | -16.00 | 28.22 | -16.00 | -12.69 | 267.26 | -18.75 | 130.69 | 0.4154 | -1256.7 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.23 | -11.11 | 267.31 | -18.70 | 127.69 | 0.3993 | -114.0 | -91.6 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -14.19 | 266.93 | -19.08 | 132.92 | 0.4345 | -631.0 | -497.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -11.36 | 267.13 | -18.88 | 127.94 | 0.4040 | -667.0 | -441.2 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -7.55 | 267.32 | -18.69 | 119.86 | 0.3679 | 879.0 | 735.0 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -9.61 | 267.14 | -18.87 | 124.30 | 0.3876 | 743.0 | 676.3 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -15.41 | 266.69 | -19.32 | 134.63 | 0.4501 | -437.0 | -379.5 | |
| 0.00 | 2.18 | 0.00 | 1.18 | -11.05 | 266.92 | -19.09 | 127.01 | 0.4037 | -490.0 | -536.0 | |
| 0.00 | 2.45 | 0.00 | 1.31 | -7.87 | 267.11 | -18.90 | 120.33 | 0.3734 | 850.0 | 701.6 | |
| 1.36 | -16.00 | 0.74 | -16.00 | -12.16 | 266.80 | -19.21 | 129.02 | 0.4157 | -838.5 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -8.46 | 266.98 | -19.03 | 121.52 | 0.3800 | 887.0 | 711.8 | |
| 0.00 | 2.00 | 0.00 | 1.10 | -14.19 | 266.53 | -19.48 | 132.35 | 0.4392 | -851.0 | -642.3 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -8.12 | 266.87 | -19.14 | 120.60 | 0.3788 | 880.0 | 715.8 | |
| 8.26 | 13.80 | 4.43 | 7.41 | -8.83 | 266.80 | -19.22 | 122.13 | 0.3857 | 1066.3 | 818.6 | |
| 1.82 | -16.00 | 0.99 | -16.00 | -12.61 | 266.50 | -19.51 | 129.44 | 0.4237 | -606.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -14.71 | 266.29 | -19.73 | 132.89 | 0.4474 | -890.0 | -644.6 | |
| 0.00 | 2.27 | 0.00 | 1.23 | -10.34 | 266.64 | -19.37 | 125.15 | 0.4008 | 677.0 | 562.7 | |
| 0.00 | 2.09 | 0.00 | 1.17 | -16.13 | 266.01 | -20.00 | 134.82 | 0.4652 | -946.0 | -793.6 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -14.30 | 266.16 | -19.85 | 132.00 | 0.4446 | -794.0 | -638.8 | |
| 2.27 | 33.78 | 1.23 | 18.31 | -10.47 | 266.40 | -19.61 | 125.09 | 0.4051 | 896.3 | 134.3 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -7.81 | 266.46 | -19.55 | 119.38 | 0.3821 | 756.0 | 625.4 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -13.44 | 266.00 | -20.01 | 130.27 | 0.4380 | -692.0 | -532.2 | |
| 6.90 | 57.03 | 3.72 | 30.79 | -8.72 | 266.15 | -19.86 | 121.04 | 0.3936 | 1006.8 | 349.9 | |
| 4.72 | 7.54 | 2.55 | 4.07 | -9.44 | 266.10 | -19.91 | 122.54 | 0.4001 | 1057.0 | 818.2 | |
| 0.00 | 3.27 | 0.00 | 1.75 | -7.88 | 266.19 | -19.82 | 119.20 | 0.3864 | 717.0 | 586.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -14.12 | 265.34 | -20.68 | 130.56 | 0.4525 | -828.0 | -667.5 | |
| 2.09 | 27.88 | 1.14 | 15.19 | -10.58 | 265.57 | -20.44 | 124.21 | 0.4170 | 905.7 | 367.0 | |
| 6.81 | -64.00 | 3.69 | -64.00 | -9.26 | 265.56 | -20.46 | 121.47 | 0.4061 | 897.8 | 999999 | |
| 1.36 | -68.00 | 0.74 | -68.00 | -10.08 | 265.20 | -20.81 | 122.75 | 0.4176 | 1020.3 | 999999 | |
| 1.73 | 3.27 | 0.94 | 1.78 | -9.46 | 265.11 | -20.90 | 121.35 | 0.4137 | 920.1 | 672.5 | |
| 1.00 | 2.36 | 0.56 | 1.31 | -13.69 | 264.67 | -21.34 | 128.93 | 0.4564 | -949.8 | -715.2 | |
| 0.00 | 3.00 | 0.00 | 1.63 | -9.84 | 264.92 | -21.09 | 121.90 | 0.4193 | 880.0 | 767.7 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -13.15 | 264.55 | -21.46 | 127.83 | 0.4528 | -890.0 | -686.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -13.47 | 264.52 | -21.49 | 128.36 | 0.4561 | -849.0 | -707.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -15.33 | 264.20 | -21.82 | 131.11 | 0.4776 | -851.0 | -709.1 | |
| 0.00 | 2.54 | 0.00 | 1.39 | -9.37 | 264.69 | -21.32 | 120.66 | 0.4188 | 860.0 | 651.1 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -13.79 | 264.29 | -21.72 | 128.63 | 0.4620 | -780.0 | -710.3 | |
| 0.00 | 6.18 | 0.00 | 3.46 | -14.37 | 264.20 | -21.81 | 129.50 | 0.4684 | -798.0 | -689.3 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -13.57 | 264.28 | -21.73 | 128.22 | 0.4600 | -669.0 | -475.6 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -15.75 | 263.74 | -22.27 | 131.23 | 0.4870 | -702.0 | -554.7 | |
| 1.18 | 5.18 | 0.66 | 2.91 | -14.41 | 263.75 | -22.26 | 129.02 | 0.4741 | -834.3 | -624.9 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -14.73 | 263.58 | -22.43 | 129.35 | 0.4792 | -617.0 | -436.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -8.73 | 262.70 | -23.32 | 117.19 | 0.4416 | -756.0 | -554.4 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -12.85 | 262.00 | -24.01 | 124.31 | 0.4822 | -599.0 | -522.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
