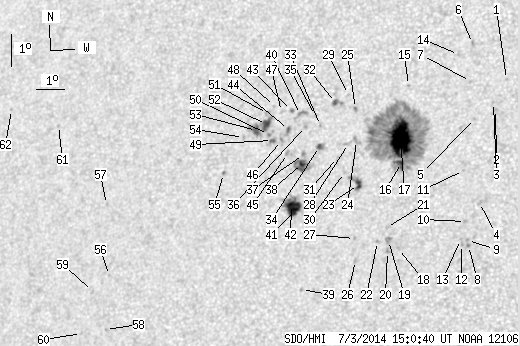

SDO HMI 2014-07-03 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.17 | 477.44 | 50.18 | 268.07 | 15.41 | 260.60 | -25.41 | 62.11 | 0.4697 | -398.7 | -161.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.45 | 17.69 | 265.13 | -20.88 | 53.11 | 0.4263 | -752.0 | -611.2 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 16.74 | 264.87 | -21.15 | 55.34 | 0.4217 | -789.0 | -726.3 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 16.96 | 264.77 | -21.24 | 55.00 | 0.4248 | -570.0 | -464.3 | |
| 0.00 | 2.18 | 0.00 | 1.18 | 13.83 | 264.63 | -21.38 | 61.85 | 0.4032 | -733.0 | -666.2 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 16.44 | 264.18 | -21.83 | 56.72 | 0.4284 | -826.0 | -703.7 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 18.80 | 263.81 | -22.20 | 52.54 | 0.4524 | -792.0 | -624.7 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 17.60 | 263.90 | -22.11 | 54.72 | 0.4413 | -748.0 | -504.2 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 12.49 | 264.38 | -21.63 | 65.17 | 0.3982 | -946.0 | -754.7 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 12.65 | 264.33 | -21.68 | 64.85 | 0.3998 | -738.0 | -649.3 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 13.23 | 264.21 | -21.80 | 63.61 | 0.4052 | -804.0 | -651.8 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 14.81 | 263.99 | -22.02 | 60.34 | 0.4189 | -700.0 | -557.8 | |
| 0.00 | 1.73 | 0.00 | 0.93 | 12.52 | 264.14 | -21.87 | 65.32 | 0.4018 | -715.0 | -601.3 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 12.67 | 264.10 | -21.91 | 65.01 | 0.4034 | -616.0 | -505.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 18.44 | 263.37 | -22.64 | 53.70 | 0.4549 | -737.0 | -601.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 17.43 | 261.77 | -24.24 | 57.28 | 0.4675 | -670.0 | -576.4 | |
| 2.00 | 300.52 | 1.11 | 167.37 | 15.02 | 261.84 | -24.17 | 61.95 | 0.4500 | -1148.7 | -320.3 | |
| 49.22 | -16.00 | 27.38 | -16.00 | 15.77 | 261.71 | -24.30 | 60.56 | 0.4566 | -1261.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 12.36 | 262.02 | -23.99 | 67.44 | 0.4318 | -623.0 | -564.9 | |
| 0.00 | 4.18 | 0.00 | 2.30 | 12.60 | 261.66 | -24.35 | 67.19 | 0.4384 | -947.0 | -786.8 | |
| 0.00 | 2.45 | 0.00 | 1.35 | 12.26 | 261.66 | -24.36 | 67.93 | 0.4367 | -921.0 | -744.0 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 13.00 | 261.55 | -24.46 | 66.41 | 0.4421 | -644.0 | -520.5 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 12.56 | 261.28 | -24.73 | 67.55 | 0.4436 | -872.0 | -685.8 | |
| 3.54 | 10.81 | 1.98 | 6.05 | 14.31 | 260.43 | -25.58 | 64.55 | 0.4652 | -967.8 | -642.8 | |
| 0.00 | 4.72 | 0.00 | 2.66 | 15.67 | 260.18 | -25.83 | 62.06 | 0.4767 | -147.0 | -155.4 | |
| 0.00 | 2.00 | 0.00 | 1.13 | 16.67 | 260.01 | -26.00 | 60.30 | 0.4854 | 816.0 | 554.7 | |
| 0.00 | 2.00 | 0.00 | 1.11 | 11.95 | 260.58 | -25.43 | 69.31 | 0.4509 | -744.0 | -586.6 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 12.63 | 260.48 | -25.53 | 67.95 | 0.4556 | -795.0 | -680.3 | |
| 0.00 | 3.27 | 0.00 | 1.84 | 15.57 | 259.92 | -26.10 | 62.46 | 0.4798 | 311.0 | 269.2 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 17.11 | 259.70 | -26.32 | 59.76 | 0.4924 | 619.0 | 458.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 14.67 | 259.89 | -26.12 | 64.24 | 0.4748 | -637.0 | -468.6 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 15.13 | 259.59 | -26.42 | 63.58 | 0.4816 | -586.0 | -423.4 | |
| 1.45 | 5.36 | 0.83 | 3.05 | 16.84 | 259.27 | -26.74 | 60.59 | 0.4963 | 813.9 | 654.8 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 16.11 | 258.85 | -27.17 | 62.28 | 0.4975 | 687.0 | 546.3 | |
| 1.91 | 4.63 | 1.08 | 2.63 | 15.46 | 258.90 | -27.11 | 63.46 | 0.4929 | 564.0 | 327.7 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 16.42 | 258.62 | -27.39 | 61.88 | 0.5023 | 590.0 | 539.1 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 16.07 | 258.32 | -27.70 | 62.75 | 0.5044 | 821.0 | 615.5 | |
| 0.00 | 2.72 | 0.00 | 1.56 | 15.20 | 258.37 | -27.64 | 64.34 | 0.4987 | 823.0 | 677.4 | |
| 3.09 | 15.80 | 1.76 | 9.01 | 14.91 | 258.37 | -27.64 | 64.86 | 0.4971 | 1110.8 | 694.0 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 11.02 | 258.80 | -27.21 | 72.30 | 0.4730 | -672.0 | -528.4 | |
| 0.00 | 5.72 | 0.00 | 3.29 | 16.44 | 258.08 | -27.93 | 62.25 | 0.5097 | 675.0 | 654.2 | |
| 9.26 | 28.15 | 5.26 | 16.01 | 13.45 | 258.28 | -27.73 | 67.73 | 0.4909 | -1052.3 | -468.7 | |
| 6.72 | -41.00 | 3.82 | -41.00 | 13.63 | 258.15 | -27.86 | 67.46 | 0.4936 | -937.0 | 999999 | |
| 0.36 | 2.00 | 0.21 | 1.15 | 16.56 | 257.74 | -28.28 | 62.29 | 0.5149 | 735.5 | 538.0 | |
| 1.09 | 3.91 | 0.63 | 2.25 | 15.96 | 257.72 | -28.29 | 63.38 | 0.5117 | 920.5 | 785.6 | |
| 0.00 | 2.27 | 0.00 | 1.30 | 15.21 | 257.80 | -28.21 | 64.70 | 0.5066 | 852.0 | 720.7 | |
| 0.00 | 3.27 | 0.00 | 1.88 | 15.61 | 257.52 | -28.49 | 64.15 | 0.5125 | 957.0 | 833.5 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 16.52 | 257.38 | -28.63 | 62.61 | 0.5194 | 466.0 | 335.6 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 16.67 | 257.10 | -28.91 | 62.54 | 0.5240 | 434.0 | 383.2 | |
| 1.00 | 3.63 | 0.58 | 2.10 | 15.60 | 257.20 | -28.81 | 64.38 | 0.5168 | 975.5 | 774.8 | |
| 0.00 | 1.63 | 0.00 | 0.95 | 15.79 | 257.02 | -28.99 | 64.16 | 0.5201 | 874.0 | 782.5 | |
| 0.00 | 2.18 | 0.00 | 1.27 | 16.44 | 256.88 | -29.13 | 63.09 | 0.5256 | 580.0 | 505.3 | |
| 5.72 | 23.16 | 3.32 | 13.47 | 16.10 | 256.90 | -29.11 | 63.69 | 0.5234 | 963.8 | 652.6 | |
| 3.81 | -52.00 | 2.22 | -52.00 | 15.90 | 256.57 | -29.44 | 64.26 | 0.5268 | 828.7 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.06 | 15.67 | 256.13 | -29.88 | 64.95 | 0.5315 | 527.0 | 386.0 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 14.53 | 255.58 | -30.43 | 67.30 | 0.5335 | 759.0 | 724.4 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 11.27 | 251.82 | -34.19 | 74.69 | 0.5735 | 739.0 | 650.8 | |
| 0.00 | 0.64 | 0.00 | 0.39 | 13.45 | 251.38 | -34.63 | 71.15 | 0.5862 | 584.0 | 482.9 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 9.61 | 251.88 | -34.13 | 77.55 | 0.5687 | 733.0 | 564.0 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 10.76 | 251.25 | -34.76 | 75.74 | 0.5801 | 752.0 | 568.7 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 9.46 | 250.99 | -35.02 | 78.03 | 0.5808 | 563.0 | 457.9 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 15.85 | 249.06 | -36.95 | 68.24 | 0.6248 | 595.0 | 499.0 | |
| 0.00 | 0.64 | 0.00 | 0.41 | 16.29 | 247.07 | -38.94 | 68.36 | 0.6513 | 543.0 | 506.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
