SDO HMI 2014-07-03 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 151.95 | 782.84 | 92.65 | 479.59 | -19.44 | 257.70 | -28.31 | 130.31 | 0.5884 | 582.2 | 223.7 | |
|
previous
or next observation for the same group /

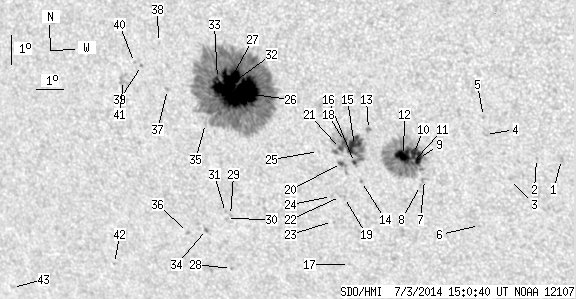

back to the solar disc SDO HMI 2014-07-03 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 1.35 | -20.89 | 267.62 | -18.39 | 143.92 | 0.5023 | 787.0 | 644.5 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -20.87 | 266.76 | -19.25 | 142.67 | 0.5099 | 644.0 | 486.3 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -21.59 | 265.76 | -20.25 | 142.20 | 0.5272 | 676.0 | 627.6 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -20.10 | 265.10 | -20.91 | 139.40 | 0.5170 | 573.0 | 565.1 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -19.51 | 265.12 | -20.89 | 138.61 | 0.5105 | 765.0 | 637.8 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -23.17 | 264.41 | -21.60 | 142.40 | 0.5568 | 381.0 | 406.4 | |
| 0.00 | 2.91 | 0.00 | 1.73 | -21.65 | 262.71 | -23.30 | 138.46 | 0.5565 | 741.0 | 573.0 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -21.86 | 262.53 | -23.48 | 138.51 | 0.5604 | 651.0 | 539.5 | |
| 7.27 | 129.14 | 4.30 | 76.81 | -20.95 | 262.61 | -23.40 | 137.44 | 0.5503 | 1046.6 | 221.0 | |
| 5.72 | -9.00 | 3.39 | -9.00 | -20.79 | 262.46 | -23.55 | 137.04 | 0.5502 | 1066.8 | 999999 | |
| 1.00 | -9.00 | 0.59 | -9.00 | -21.09 | 262.38 | -23.63 | 137.34 | 0.5541 | 578.3 | 999999 | |
| 16.17 | -9.00 | 9.61 | -9.00 | -20.86 | 262.10 | -23.92 | 136.72 | 0.5546 | 929.5 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.73 | -20.03 | 260.99 | -25.02 | 134.34 | 0.5578 | 153.0 | -176.7 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -21.77 | 260.41 | -25.60 | 136.04 | 0.5801 | -822.0 | -695.1 | |
| 14.71 | 60.48 | 8.85 | 36.44 | -20.57 | 260.39 | -25.62 | 134.43 | 0.5691 | -989.8 | -552.2 | |
| 1.27 | -15.00 | 0.77 | -15.00 | -21.14 | 260.28 | -25.73 | 135.07 | 0.5755 | -703.4 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -24.62 | 259.37 | -26.65 | 138.47 | 0.6171 | -590.0 | -448.9 | |
| 3.27 | -15.00 | 1.97 | -15.00 | -20.45 | 260.05 | -25.96 | 133.90 | 0.5714 | -913.1 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -22.33 | 259.68 | -26.33 | 135.98 | 0.5926 | -830.0 | -649.1 | |
| 1.36 | 6.36 | 0.83 | 3.86 | -21.18 | 259.80 | -26.21 | 134.62 | 0.5808 | -812.3 | -651.9 | |
| 1.82 | -15.00 | 1.10 | -15.00 | -20.68 | 259.86 | -26.15 | 134.02 | 0.5756 | -845.9 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.39 | -22.30 | 259.54 | -26.47 | 135.80 | 0.5937 | -701.0 | -589.1 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -23.16 | 259.06 | -26.95 | 136.38 | 0.6063 | -434.0 | -470.0 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -22.31 | 259.21 | -26.80 | 135.46 | 0.5971 | -487.0 | -372.5 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -20.80 | 259.03 | -26.98 | 133.33 | 0.5852 | -497.0 | -361.9 | |
| 55.58 | 539.00 | 34.21 | 332.54 | -18.95 | 256.63 | -29.38 | 128.51 | 0.5951 | 1253.3 | 350.9 | |
| 18.44 | -26.00 | 11.34 | -26.00 | -18.43 | 256.29 | -29.72 | 127.48 | 0.5949 | 1285.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -24.88 | 254.76 | -31.25 | 134.50 | 0.6620 | -569.0 | -494.3 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -23.06 | 255.22 | -30.79 | 132.67 | 0.6429 | -753.0 | -583.0 | |
| 0.00 | 1.54 | 0.00 | 1.00 | -23.16 | 255.04 | -30.98 | 132.64 | 0.6455 | -517.0 | -436.4 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -22.96 | 255.05 | -30.96 | 132.40 | 0.6437 | -654.0 | -577.1 | |
| 25.07 | -26.00 | 15.52 | -26.00 | -18.80 | 255.96 | -30.05 | 127.71 | 0.6014 | 967.3 | 999999 | |
| 0.27 | -26.00 | 0.17 | -26.00 | -18.48 | 255.76 | -30.25 | 127.08 | 0.6011 | 817.0 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.31 | -23.56 | 254.15 | -31.86 | 132.39 | 0.6573 | -765.0 | -689.0 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -19.98 | 255.00 | -31.02 | 128.49 | 0.6210 | -170.0 | -167.6 | |
| 0.00 | 1.73 | 0.00 | 1.14 | -23.69 | 253.37 | -32.65 | 131.90 | 0.6659 | -639.0 | -529.9 | |
| 0.00 | 1.73 | 0.00 | 1.09 | -18.90 | 253.79 | -32.22 | 126.04 | 0.6261 | 620.0 | 404.7 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -17.36 | 253.77 | -32.24 | 123.88 | 0.6156 | -544.0 | -467.5 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -18.14 | 252.96 | -33.05 | 124.35 | 0.6300 | -708.0 | -626.1 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -18.04 | 252.71 | -33.30 | 124.04 | 0.6322 | -856.0 | -729.4 | |
| 0.00 | 9.17 | 0.00 | 5.91 | -18.65 | 252.15 | -33.86 | 124.45 | 0.6425 | -577.0 | -549.0 | |
| 0.00 | 1.45 | 0.00 | 1.01 | -24.85 | 250.04 | -35.97 | 130.78 | 0.7061 | -532.0 | -441.8 | |
| 0.00 | 1.00 | 0.00 | 0.75 | -25.85 | 245.26 | -40.75 | 128.82 | 0.7562 | -465.0 | -455.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
