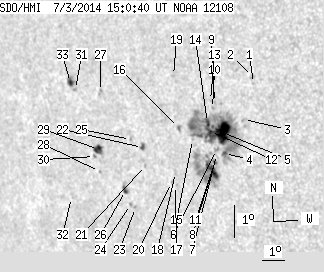

SDO HMI 2014-07-03 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.23 | 257.93 | 35.79 | 185.84 | -7.92 | 240.81 | -45.20 | 104.04 | 0.7264 | 303.2 | 180.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.56 | -6.04 | 243.29 | -42.72 | 102.12 | 0.6924 | 553.0 | 515.3 | |
| 0.00 | 3.00 | 0.00 | 2.05 | -5.82 | 243.27 | -42.74 | 101.81 | 0.6921 | 493.0 | 455.2 | |
| 0.00 | 1.91 | 0.00 | 1.32 | -7.17 | 242.74 | -43.27 | 103.56 | 0.7019 | 622.0 | 470.1 | |
| 1.36 | 150.39 | 0.96 | 106.54 | -8.26 | 241.78 | -44.23 | 104.78 | 0.7162 | 819.7 | 304.4 | |
| 20.62 | -4.00 | 14.54 | -4.00 | -7.61 | 241.79 | -44.22 | 103.89 | 0.7144 | 967.5 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.94 | -8.15 | 241.45 | -44.56 | 104.53 | 0.7198 | 623.0 | 602.3 | |
| 0.00 | 2.09 | 0.00 | 1.49 | -8.31 | 241.43 | -44.58 | 104.74 | 0.7204 | 437.0 | 483.0 | |
| 1.00 | 53.86 | 0.71 | 38.76 | -8.56 | 241.31 | -44.70 | 105.04 | 0.7226 | 792.4 | 38.1 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -6.69 | 241.56 | -44.45 | 102.56 | 0.7149 | 556.0 | 428.7 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -6.88 | 241.45 | -44.56 | 102.79 | 0.7166 | 582.0 | 430.5 | |
| 9.81 | -8.00 | 7.03 | -8.00 | -8.85 | 241.13 | -44.88 | 105.38 | 0.7254 | 685.1 | 999999 | |
| 1.73 | -4.00 | 1.23 | -4.00 | -7.60 | 241.27 | -44.74 | 103.73 | 0.7205 | 482.5 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -6.64 | 241.39 | -44.62 | 102.44 | 0.7167 | 487.0 | 398.5 | |
| 2.91 | -4.00 | 2.07 | -4.00 | -7.32 | 241.18 | -44.83 | 103.33 | 0.7209 | 510.3 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -7.88 | 240.44 | -45.57 | 103.87 | 0.7309 | 178.0 | 122.3 | |
| 0.54 | 2.36 | 0.40 | 1.72 | -7.53 | 239.87 | -46.14 | 103.25 | 0.7366 | -644.7 | -554.9 | |
| 0.00 | 0.54 | 0.00 | 0.40 | -9.35 | 239.45 | -46.56 | 105.54 | 0.7459 | 467.0 | 467.2 | |
| 0.00 | 2.00 | 0.00 | 1.48 | -8.94 | 239.52 | -46.49 | 105.02 | 0.7441 | 209.0 | 262.6 | |
| 0.00 | 1.45 | 0.00 | 1.06 | -5.92 | 239.85 | -46.16 | 101.09 | 0.7333 | 74.0 | 152.0 | |
| 0.00 | 0.64 | 0.00 | 0.47 | -9.26 | 239.28 | -46.73 | 105.38 | 0.7475 | 334.0 | 246.7 | |
| 0.00 | 1.09 | 0.00 | 0.83 | -8.78 | 238.18 | -47.83 | 104.43 | 0.7586 | -273.0 | -283.2 | |
| 1.54 | 3.09 | 1.17 | 2.33 | -8.22 | 238.14 | -47.87 | 103.70 | 0.7578 | -740.5 | -542.9 | |
| 0.00 | 1.18 | 0.00 | 0.91 | -10.12 | 237.46 | -48.55 | 105.95 | 0.7697 | -587.0 | -561.0 | |
| 0.00 | 1.09 | 0.00 | 0.85 | -10.03 | 237.24 | -48.77 | 105.78 | 0.7718 | -536.0 | -424.0 | |
| 0.00 | 1.18 | 0.00 | 0.90 | -7.99 | 237.62 | -48.39 | 103.27 | 0.7631 | -514.0 | -383.1 | |
| 2.00 | 4.72 | 1.55 | 3.67 | -9.60 | 237.09 | -48.92 | 105.20 | 0.7724 | -495.8 | -355.5 | |
| 0.00 | 2.72 | 0.00 | 2.12 | -6.56 | 236.42 | -49.59 | 101.15 | 0.7733 | 554.0 | 333.6 | |
| 0.00 | 1.00 | 0.00 | 0.79 | -9.06 | 235.96 | -50.05 | 104.21 | 0.7832 | 352.0 | 304.5 | |
| 5.09 | 7.63 | 4.02 | 6.02 | -8.37 | 236.04 | -49.97 | 103.37 | 0.7809 | -723.8 | -568.9 | |
| 0.00 | 1.18 | 0.00 | 0.94 | -8.60 | 235.80 | -50.21 | 103.60 | 0.7839 | -501.0 | -421.3 | |
| 0.00 | 1.73 | 0.00 | 1.38 | -6.54 | 235.22 | -50.79 | 100.89 | 0.7862 | -663.0 | -532.5 | |
| 0.00 | 0.54 | 0.00 | 0.45 | -9.93 | 234.40 | -51.61 | 104.91 | 0.8012 | -452.0 | -448.3 | |
| 2.63 | 5.27 | 2.11 | 4.22 | -6.34 | 235.00 | -51.01 | 100.58 | 0.7881 | -760.0 | -591.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
