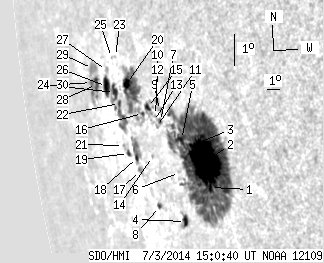

SDO HMI 2014-07-03 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 126.31 | 648.04 | 164.87 | 840.09 | -7.77 | 219.31 | -66.70 | 99.78 | 0.9238 | 233.5 | -14.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.72 | 448.00 | 3.22 | 535.53 | -9.12 | 221.74 | -64.27 | 101.54 | 0.9096 | 488.0 | 146.9 | |
| 75.74 | -1.00 | 89.55 | -1.00 | -8.32 | 221.64 | -64.37 | 100.65 | 0.9095 | 656.9 | 999999 | |
| 0.27 | -1.00 | 0.33 | -1.00 | -7.86 | 220.76 | -65.25 | 100.04 | 0.9153 | 24.3 | 999999 | |
| 3.91 | 8.17 | 5.08 | 10.66 | -10.30 | 219.41 | -66.60 | 102.47 | 0.9264 | 121.9 | -63.3 | |
| 6.36 | -1.00 | 7.96 | -1.00 | -7.71 | 220.05 | -65.96 | 99.78 | 0.9200 | 142.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.28 | -8.76 | 219.55 | -66.47 | 100.85 | 0.9242 | -354.0 | -350.1 | |
| 1.00 | 2.54 | 1.33 | 3.38 | -7.23 | 218.55 | -67.46 | 99.08 | 0.9295 | -426.8 | -293.9 | |
| 1.09 | 2.63 | 1.54 | 3.73 | -9.93 | 217.44 | -68.58 | 101.81 | 0.9383 | -496.4 | -472.4 | |
| 0.00 | 3.54 | 0.00 | 4.69 | -6.89 | 218.57 | -67.44 | 98.72 | 0.9291 | 341.0 | 205.9 | |
| 0.00 | 3.54 | 0.00 | 4.71 | -6.62 | 218.41 | -67.60 | 98.41 | 0.9300 | -316.0 | -192.6 | |
| 0.00 | 1.27 | 0.00 | 1.72 | -7.41 | 218.17 | -67.84 | 99.22 | 0.9320 | 115.0 | 53.9 | |
| 0.00 | 0.54 | 0.00 | 0.73 | -7.06 | 218.19 | -67.82 | 98.86 | 0.9316 | 183.0 | 154.8 | |
| 0.00 | 1.09 | 0.00 | 1.48 | -7.26 | 217.96 | -68.05 | 99.04 | 0.9332 | 9.0 | -40.8 | |
| 0.00 | 1.00 | 0.00 | 1.40 | -8.37 | 217.49 | -68.52 | 100.17 | 0.9368 | -271.0 | -322.4 | |
| 2.63 | 8.90 | 3.64 | 12.25 | -6.85 | 217.59 | -68.42 | 98.56 | 0.9352 | 70.4 | -54.1 | |
| 0.91 | 65.30 | 1.29 | 95.32 | -7.06 | 217.10 | -68.91 | 98.73 | 0.9383 | -88.5 | -487.8 | |
| 0.00 | 3.63 | 0.00 | 5.41 | -8.87 | 216.23 | -69.78 | 100.54 | 0.9445 | -585.0 | -448.5 | |
| 2.63 | 16.53 | 3.94 | 24.69 | -8.47 | 216.13 | -69.88 | 100.11 | 0.9448 | -454.3 | -522.6 | |
| 1.54 | 2.72 | 2.39 | 4.22 | -8.39 | 215.33 | -70.68 | 99.93 | 0.9492 | -339.9 | -288.7 | |
| 5.63 | -16.00 | 8.39 | -16.00 | -6.19 | 215.95 | -70.06 | 97.69 | 0.9445 | -601.1 | 999999 | |
| 0.00 | 0.91 | 0.00 | 1.44 | -8.16 | 214.95 | -71.06 | 99.65 | 0.9511 | -466.0 | -403.3 | |
| 1.63 | 44.68 | 2.55 | 71.28 | -6.85 | 215.08 | -70.93 | 98.30 | 0.9497 | -571.3 | -470.9 | |
| 0.00 | 0.91 | 0.00 | 1.40 | -5.40 | 215.16 | -70.85 | 96.78 | 0.9485 | -398.0 | -397.8 | |
| 5.72 | -22.00 | 9.08 | -22.00 | -6.53 | 214.71 | -71.30 | 97.92 | 0.9515 | -576.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.71 | -5.45 | 214.77 | -71.24 | 96.79 | 0.9506 | -229.0 | -232.7 | |
| 9.17 | -22.00 | 15.14 | -22.00 | -6.39 | 213.97 | -72.04 | 97.70 | 0.9553 | -181.6 | 999999 | |
| 0.00 | 2.72 | 0.00 | 4.44 | -5.88 | 214.14 | -71.87 | 97.19 | 0.9541 | -265.0 | -187.9 | |
| 4.27 | 18.25 | 7.47 | 32.53 | -6.38 | 212.93 | -73.08 | 97.59 | 0.9604 | -137.1 | 284.1 | |
| 0.00 | 9.08 | 0.00 | 16.09 | -5.90 | 212.68 | -73.33 | 97.07 | 0.9614 | 180.0 | 131.1 | |
| 1.09 | -28.00 | 1.97 | -28.00 | -6.35 | 212.40 | -73.61 | 97.51 | 0.9629 | 475.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
