SDO HMI 2014-07-03 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.72 | 33.15 | 13.16 | 29.41 | -16.07 | 232.76 | -53.25 | 111.80 | 0.8306 | -73.0 | 70.1 | |
|
previous
or next observation for the same group /

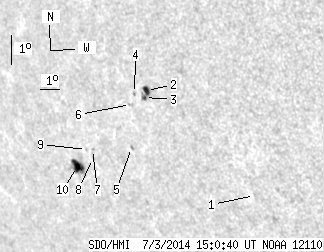

back to the solar disc SDO HMI 2014-07-03 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.49 | -17.56 | 239.69 | -46.33 | 116.06 | 0.7698 | 402.0 | 339.4 | |
| 4.00 | 9.54 | 3.29 | 7.86 | -14.36 | 235.55 | -50.47 | 110.63 | 0.8005 | 768.5 | 529.1 | |
| 1.27 | -2.00 | 1.05 | -2.00 | -14.59 | 235.37 | -50.64 | 110.85 | 0.8029 | 558.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.91 | -14.48 | 234.91 | -51.11 | 110.57 | 0.8071 | 428.0 | 402.8 | |
| 0.00 | 1.09 | 0.00 | 0.94 | -16.24 | 234.14 | -51.88 | 112.42 | 0.8192 | 384.0 | 334.7 | |
| 0.00 | 1.63 | 0.00 | 1.38 | -14.85 | 234.58 | -51.43 | 110.91 | 0.8112 | 421.0 | 293.9 | |
| 0.00 | 1.27 | 0.00 | 1.15 | -16.40 | 232.00 | -54.01 | 111.95 | 0.8389 | -682.0 | -523.1 | |
| 0.00 | 0.45 | 0.00 | 0.41 | -16.70 | 231.88 | -54.13 | 112.25 | 0.8407 | -440.0 | -435.0 | |
| 0.00 | 0.73 | 0.00 | 0.66 | -16.42 | 231.67 | -54.34 | 111.86 | 0.8418 | -204.0 | -239.9 | |
| 9.45 | 16.71 | 8.82 | 15.61 | -17.00 | 230.92 | -55.09 | 112.31 | 0.8497 | -555.1 | -152.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
