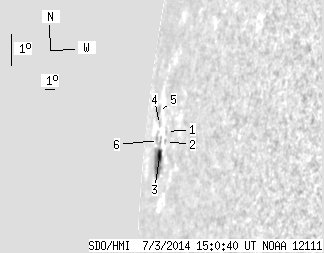

SDO HMI 2014-07-03 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.63 | 34.32 | 20.50 | 133.05 | 6.07 | 203.25 | -82.76 | 84.28 | 0.9919 | 53.6 | 93.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 3.55 | 6.53 | 204.54 | -81.47 | 83.87 | 0.9889 | -288.0 | -287.4 | |
| 0.00 | 1.36 | 0.00 | 4.42 | 6.22 | 204.56 | -81.45 | 84.19 | 0.9888 | -345.0 | -343.4 | |
| 5.63 | 19.98 | 20.50 | 75.75 | 5.70 | 203.58 | -82.43 | 84.67 | 0.9913 | 71.6 | 102.7 | |
| 0.00 | 1.91 | 0.00 | 7.69 | 6.65 | 202.75 | -83.26 | 83.68 | 0.9930 | -16.0 | -6.8 | |
| 0.00 | 4.99 | 0.00 | 22.02 | 6.98 | 202.10 | -83.91 | 83.32 | 0.9942 | 239.0 | 185.4 | |
| 0.00 | 4.99 | 0.00 | 19.62 | 6.16 | 202.95 | -83.06 | 84.18 | 0.9926 | 308.0 | 171.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
