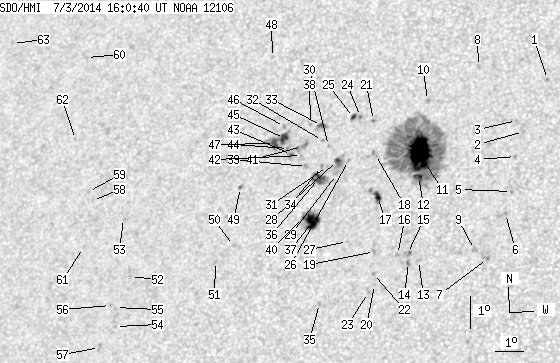

SDO HMI 2014-07-03 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.35 | 458.30 | 50.07 | 256.68 | 15.27 | 260.37 | -25.09 | 62.04 | 0.4646 | -336.6 | -187.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.74 | 18.12 | 265.82 | -19.63 | 50.67 | 0.4146 | -881.0 | -662.2 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 16.47 | 265.19 | -20.26 | 54.83 | 0.4080 | -799.0 | -532.5 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 16.81 | 264.92 | -20.54 | 54.46 | 0.4145 | -823.0 | -688.0 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 15.69 | 265.01 | -20.45 | 56.73 | 0.4041 | -750.0 | -547.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 14.59 | 264.98 | -20.48 | 59.16 | 0.3960 | -839.0 | -691.5 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 13.91 | 264.84 | -20.61 | 60.87 | 0.3929 | -986.0 | -800.9 | |
| 0.00 | 1.73 | 0.00 | 0.93 | 12.51 | 264.36 | -21.09 | 64.64 | 0.3905 | -913.0 | -772.8 | |
| 0.00 | 2.00 | 0.00 | 1.11 | 18.49 | 263.41 | -22.05 | 52.96 | 0.4479 | -758.0 | -502.5 | |
| 0.00 | 3.36 | 0.00 | 1.81 | 12.78 | 263.90 | -21.55 | 64.44 | 0.3988 | -658.0 | -547.7 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 17.38 | 261.78 | -23.68 | 56.82 | 0.4598 | -628.0 | -521.7 | |
| 44.68 | 284.50 | 24.74 | 157.76 | 15.72 | 261.72 | -23.74 | 60.14 | 0.4486 | -1305.5 | -348.3 | |
| 4.45 | -11.00 | 2.46 | -11.00 | 15.00 | 261.77 | -23.69 | 61.56 | 0.4431 | -1084.6 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.14 | 12.40 | 262.04 | -23.41 | 66.90 | 0.4237 | -807.0 | -657.1 | |
| 0.00 | 2.45 | 0.00 | 1.34 | 12.33 | 261.71 | -23.75 | 67.31 | 0.4282 | -889.0 | -793.3 | |
| 0.00 | 4.63 | 0.00 | 2.54 | 12.61 | 261.65 | -23.81 | 66.75 | 0.4305 | -824.0 | -746.8 | |
| 0.00 | 1.91 | 0.00 | 1.05 | 12.57 | 261.31 | -24.15 | 67.09 | 0.4352 | -729.0 | -607.9 | |
| 3.90 | 9.81 | 2.17 | 5.46 | 14.35 | 260.43 | -25.03 | 64.04 | 0.4577 | -897.7 | -624.5 | |
| 0.00 | 2.91 | 0.00 | 1.63 | 15.66 | 260.20 | -25.26 | 61.63 | 0.4689 | -219.0 | -190.0 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 12.65 | 260.51 | -24.94 | 67.51 | 0.4472 | -788.0 | -662.7 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 11.63 | 260.61 | -24.84 | 69.63 | 0.4408 | -732.0 | -548.4 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 16.72 | 259.98 | -25.48 | 59.77 | 0.4787 | 962.0 | 747.2 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 11.97 | 260.55 | -24.91 | 68.94 | 0.4433 | -815.0 | -570.4 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 11.38 | 260.43 | -25.03 | 70.30 | 0.4423 | -655.0 | -537.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 16.83 | 259.50 | -25.95 | 59.97 | 0.4858 | 745.0 | 645.2 | |
| 1.54 | 2.63 | 0.88 | 1.49 | 16.80 | 259.26 | -26.20 | 60.24 | 0.4888 | 753.5 | 596.5 | |
| 0.00 | 1.82 | 0.00 | 1.02 | 15.45 | 259.27 | -26.18 | 62.78 | 0.4802 | -514.0 | -330.4 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 12.93 | 259.55 | -25.91 | 67.58 | 0.4626 | -667.0 | -471.4 | |
| 1.73 | 9.35 | 0.98 | 5.29 | 15.44 | 258.89 | -26.57 | 63.10 | 0.4854 | 515.5 | 262.6 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 15.00 | 258.91 | -26.55 | 63.92 | 0.4826 | 136.0 | 157.9 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 15.90 | 258.50 | -26.95 | 62.52 | 0.4934 | 802.0 | 686.2 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 15.24 | 258.56 | -26.90 | 63.71 | 0.4888 | 684.0 | 598.8 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 16.05 | 258.27 | -27.19 | 62.41 | 0.4974 | 803.0 | 625.1 | |
| 1.73 | 6.08 | 0.99 | 3.48 | 16.52 | 258.16 | -27.30 | 61.63 | 0.5017 | 783.9 | 622.8 | |
| 0.00 | 1.91 | 0.00 | 1.08 | 15.24 | 258.35 | -27.11 | 63.88 | 0.4917 | 780.0 | 636.9 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 11.00 | 258.77 | -26.68 | 72.06 | 0.4652 | -763.0 | -594.1 | |
| 6.90 | 13.89 | 3.92 | 7.89 | 14.86 | 258.29 | -27.17 | 64.63 | 0.4903 | 985.4 | 678.6 | |
| 14.44 | 24.61 | 8.17 | 13.93 | 13.53 | 258.25 | -27.20 | 67.26 | 0.4839 | -1032.7 | -562.4 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 16.54 | 257.76 | -27.69 | 61.89 | 0.5071 | 675.0 | 561.6 | |
| 0.00 | 2.54 | 0.00 | 1.45 | 15.23 | 257.81 | -27.64 | 64.28 | 0.4989 | 851.0 | 734.6 | |
| 0.27 | -37.00 | 0.15 | -37.00 | 13.64 | 257.92 | -27.54 | 67.24 | 0.4892 | -638.3 | 999999 | |
| 0.00 | 7.26 | 0.00 | 4.17 | 15.85 | 257.58 | -27.88 | 63.30 | 0.5055 | 960.0 | 821.6 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 15.57 | 257.59 | -27.87 | 63.81 | 0.5038 | 879.0 | 703.5 | |
| 0.45 | 1.45 | 0.26 | 0.83 | 15.59 | 257.22 | -28.23 | 64.02 | 0.5089 | 996.0 | 865.4 | |
| 0.00 | 2.36 | 0.00 | 1.36 | 15.77 | 257.09 | -28.37 | 63.78 | 0.5117 | 875.0 | 763.3 | |
| 4.90 | 21.34 | 2.83 | 12.35 | 16.08 | 256.90 | -28.56 | 63.35 | 0.5160 | 977.1 | 639.0 | |
| 0.00 | 1.82 | 0.00 | 1.05 | 16.46 | 256.84 | -28.62 | 62.72 | 0.5189 | 703.0 | 523.8 | |
| 4.36 | -45.00 | 2.52 | -45.00 | 15.92 | 256.56 | -28.90 | 63.88 | 0.5196 | 837.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 18.61 | 256.02 | -29.44 | 59.56 | 0.5423 | -700.0 | -532.9 | |
| 0.00 | 1.73 | 0.00 | 1.00 | 14.52 | 255.54 | -29.92 | 67.05 | 0.5264 | 791.0 | 663.1 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 12.72 | 255.54 | -29.92 | 70.36 | 0.5187 | -620.0 | -437.8 | |
| 0.00 | 1.73 | 0.00 | 1.00 | 12.21 | 254.95 | -30.51 | 71.59 | 0.5250 | 710.0 | 540.4 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 11.66 | 251.89 | -33.56 | 73.81 | 0.5660 | 471.0 | 507.5 | |
| 0.00 | 0.45 | 0.00 | 0.28 | 13.44 | 251.36 | -34.09 | 70.96 | 0.5789 | 580.0 | 483.8 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 10.11 | 251.53 | -33.93 | 76.63 | 0.5669 | 125.0 | 145.8 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 10.69 | 251.46 | -34.00 | 75.63 | 0.5694 | 556.0 | 540.5 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 10.75 | 251.26 | -34.19 | 75.59 | 0.5722 | 796.0 | 615.6 | |
| 0.00 | 3.27 | 0.00 | 1.97 | 9.45 | 251.01 | -34.45 | 77.91 | 0.5728 | 419.0 | 339.2 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 13.96 | 250.09 | -35.37 | 70.61 | 0.5977 | 679.0 | 597.9 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 14.24 | 249.89 | -35.57 | 70.24 | 0.6013 | 513.0 | 428.3 | |
| 0.00 | 1.36 | 0.00 | 0.87 | 18.42 | 248.92 | -36.54 | 64.14 | 0.6300 | 632.0 | 567.1 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 12.50 | 249.99 | -35.47 | 73.04 | 0.5945 | 541.0 | 443.0 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 15.84 | 249.07 | -36.39 | 68.03 | 0.6177 | 498.0 | 447.7 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 18.76 | 245.79 | -39.66 | 65.03 | 0.6689 | 42.0 | 99.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
