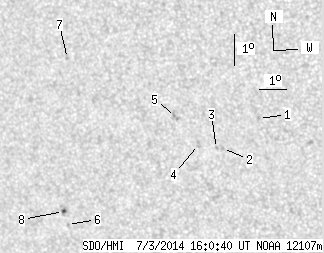

SDO HMI 2014-07-03 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.18 | 14.97 | 0.76 | 9.08 | -12.69 | 253.86 | -31.60 | 117.42 | 0.5773 | 349.7 | 351.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.84 | -11.68 | 257.65 | -27.80 | 118.63 | 0.5225 | 789.0 | 604.2 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -12.66 | 256.26 | -29.20 | 119.14 | 0.5470 | 730.0 | 597.8 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -12.67 | 256.04 | -29.42 | 118.97 | 0.5498 | 584.0 | 457.2 | |
| 0.00 | 2.72 | 0.00 | 1.62 | -12.56 | 255.41 | -30.05 | 118.30 | 0.5572 | 593.0 | 529.0 | |
| 0.00 | 3.54 | 0.00 | 2.12 | -11.69 | 254.69 | -30.77 | 116.36 | 0.5613 | 648.0 | 595.6 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -15.26 | 250.07 | -35.39 | 118.69 | 0.6391 | -739.0 | -568.3 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -9.98 | 250.91 | -34.55 | 111.27 | 0.6015 | 713.0 | 594.6 | |
| 1.18 | 2.45 | 0.76 | 1.57 | -14.85 | 249.99 | -35.46 | 118.05 | 0.6377 | -795.3 | -660.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
