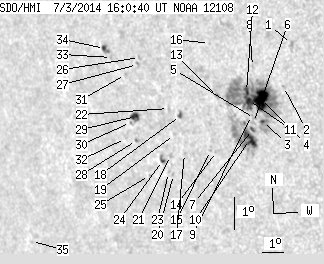

SDO HMI 2014-07-03 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.58 | 257.53 | 36.33 | 184.23 | -7.98 | 240.70 | -44.76 | 104.25 | 0.7213 | 288.1 | 141.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.72 | 0.00 | 1.85 | -5.83 | 243.30 | -42.16 | 101.98 | 0.6849 | 611.0 | 526.3 | |
| 0.00 | 1.18 | 0.00 | 0.81 | -7.15 | 242.82 | -42.63 | 103.72 | 0.6941 | 515.0 | 446.7 | |
| 1.09 | 150.02 | 0.76 | 105.31 | -8.27 | 241.79 | -43.67 | 104.97 | 0.7096 | 877.7 | 285.9 | |
| 20.80 | -3.00 | 14.53 | -3.00 | -7.59 | 241.80 | -43.66 | 104.03 | 0.7076 | 969.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -8.19 | 241.46 | -44.00 | 104.76 | 0.7133 | 673.0 | 627.4 | |
| 0.00 | 1.73 | 0.00 | 1.22 | -8.32 | 241.40 | -44.06 | 104.91 | 0.7144 | 591.0 | 531.7 | |
| 1.09 | 57.57 | 0.77 | 41.04 | -8.54 | 241.32 | -44.13 | 105.19 | 0.7158 | 780.2 | 14.9 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -6.58 | 241.58 | -43.88 | 102.56 | 0.7077 | 378.0 | 347.5 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -8.10 | 241.34 | -44.11 | 104.60 | 0.7144 | 604.0 | 532.6 | |
| 10.44 | -7.00 | 7.41 | -7.00 | -8.85 | 241.14 | -44.31 | 105.57 | 0.7188 | 702.5 | 999999 | |
| 4.00 | -3.00 | 2.82 | -3.00 | -7.64 | 241.28 | -44.18 | 103.95 | 0.7140 | 551.2 | 999999 | |
| 2.91 | -3.00 | 2.05 | -3.00 | -7.36 | 241.23 | -44.23 | 103.55 | 0.7139 | 499.0 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.38 | -7.57 | 239.94 | -45.52 | 103.47 | 0.7296 | -785.0 | -693.0 | |
| 0.00 | 1.36 | 0.00 | 1.00 | -9.29 | 239.63 | -45.83 | 105.68 | 0.7375 | 295.0 | 287.7 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -9.27 | 239.36 | -46.09 | 105.57 | 0.7405 | 248.0 | 221.7 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -5.93 | 239.79 | -45.67 | 101.22 | 0.7277 | 413.0 | 329.7 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -9.41 | 238.16 | -47.30 | 105.40 | 0.7543 | -598.0 | -456.8 | |
| 1.45 | 3.36 | 1.09 | 2.51 | -8.23 | 238.18 | -47.28 | 103.87 | 0.7512 | -723.3 | -524.8 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -8.83 | 237.80 | -47.65 | 104.55 | 0.7568 | 219.0 | 232.6 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -10.09 | 237.52 | -47.93 | 106.10 | 0.7630 | -496.0 | -531.9 | |
| 0.00 | 1.82 | 0.00 | 1.38 | -9.50 | 237.50 | -47.96 | 105.33 | 0.7618 | -399.0 | -343.9 | |
| 0.00 | 1.54 | 0.00 | 1.16 | -8.03 | 237.66 | -47.79 | 103.48 | 0.7565 | -383.0 | -238.4 | |
| 0.00 | 1.09 | 0.00 | 0.83 | -10.04 | 237.30 | -48.16 | 105.96 | 0.7652 | -659.0 | -531.2 | |
| 1.36 | 3.36 | 1.05 | 2.58 | -9.67 | 237.09 | -48.36 | 105.44 | 0.7666 | -530.1 | -438.0 | |
| 0.00 | 0.64 | 0.00 | 0.50 | -10.17 | 236.38 | -49.08 | 105.87 | 0.7754 | -401.0 | -329.9 | |
| 0.00 | 1.82 | 0.00 | 1.39 | -6.50 | 236.54 | -48.92 | 101.22 | 0.7658 | 313.0 | 306.5 | |
| 0.00 | 1.54 | 0.00 | 1.19 | -6.72 | 236.41 | -49.04 | 101.48 | 0.7676 | 498.0 | 258.3 | |
| 0.45 | 1.36 | 0.36 | 1.07 | -9.09 | 235.98 | -49.48 | 104.41 | 0.7772 | 373.0 | 333.3 | |
| 4.99 | 7.26 | 3.90 | 5.67 | -8.34 | 236.07 | -49.39 | 103.48 | 0.7747 | -750.0 | -562.3 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -8.54 | 235.79 | -49.66 | 103.66 | 0.7780 | -394.0 | -316.7 | |
| 0.00 | 1.18 | 0.00 | 0.92 | -7.05 | 235.80 | -49.66 | 101.77 | 0.7749 | -613.0 | -442.3 | |
| 0.00 | 0.54 | 0.00 | 0.43 | -9.05 | 235.46 | -50.00 | 104.22 | 0.7827 | -170.0 | -61.2 | |
| 0.00 | 1.63 | 0.00 | 1.29 | -6.55 | 235.20 | -50.26 | 101.01 | 0.7805 | -641.0 | -600.9 | |
| 2.00 | 4.81 | 1.59 | 3.82 | -6.29 | 234.90 | -50.56 | 100.61 | 0.7832 | -660.7 | -618.8 | |
| 0.00 | 1.09 | 0.00 | 1.01 | -12.53 | 229.70 | -55.76 | 106.99 | 0.8459 | -477.0 | -395.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
