SDO HMI 2014-07-03 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.02 | 298.29 | 32.31 | 151.00 | 12.12 | 277.80 | -7.10 | 259.20 | 0.2029 | -163.2 | -99.7 | |
|
previous
or next observation for the same group /

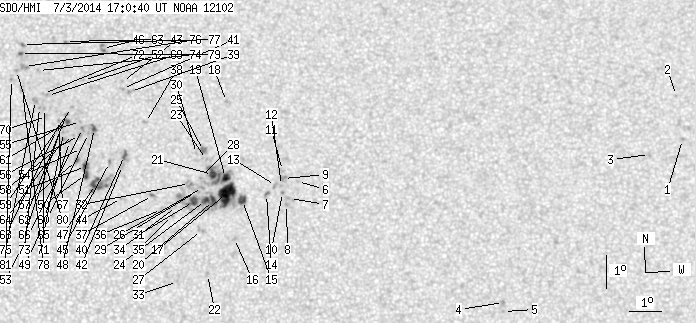

back to the solar disc SDO HMI 2014-07-03 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.74 | 13.01 | 293.67 | 8.77 | 319.22 | 0.2285 | -768.0 | -647.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.38 | 293.53 | 8.63 | 323.38 | 0.2448 | -728.0 | -487.5 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 12.56 | 292.61 | 7.71 | 321.43 | 0.2111 | -839.0 | -627.4 | |
| 0.00 | 2.00 | 0.00 | 0.99 | 8.04 | 287.99 | 3.08 | 328.13 | 0.1014 | -946.0 | -803.1 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 7.77 | 287.98 | 3.08 | 326.64 | 0.0973 | -908.0 | -780.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.76 | 281.61 | -3.29 | 20.51 | 0.1611 | -782.0 | -555.2 | |
| 0.00 | 3.27 | 0.00 | 1.64 | 11.24 | 281.37 | -3.53 | 23.19 | 0.1542 | -895.0 | -723.5 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 11.05 | 281.28 | -3.62 | 24.22 | 0.1519 | -1006.0 | -775.1 | |
| 0.00 | 3.18 | 0.00 | 1.60 | 11.85 | 281.17 | -3.73 | 22.75 | 0.1653 | -957.0 | -822.9 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 11.42 | 281.15 | -3.75 | 23.97 | 0.1587 | -1157.0 | -888.2 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 12.10 | 281.14 | -3.76 | 22.35 | 0.1695 | -825.0 | -615.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.64 | 281.11 | -3.79 | 23.60 | 0.1623 | -1019.0 | -807.8 | |
| 0.00 | 2.63 | 0.00 | 1.32 | 11.64 | 280.93 | -3.97 | 24.63 | 0.1636 | -867.0 | -811.3 | |
| 0.00 | 2.36 | 0.00 | 1.19 | 11.36 | 280.65 | -4.25 | 26.90 | 0.1614 | -955.0 | -779.0 | |
| 4.27 | 7.17 | 2.14 | 3.60 | 11.17 | 279.91 | -5.00 | 31.38 | 0.1648 | -1207.8 | -847.0 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 10.00 | 279.67 | -5.23 | 36.81 | 0.1504 | -864.0 | -751.0 | |
| 23.25 | 119.04 | 11.69 | 59.92 | 11.39 | 279.40 | -5.50 | 33.15 | 0.1726 | -1263.2 | -666.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 14.23 | 279.34 | -5.56 | 25.97 | 0.2154 | -779.0 | -666.8 | |
| 4.72 | -17.00 | 2.38 | -17.00 | 11.88 | 279.36 | -5.54 | 31.80 | 0.1801 | -1118.9 | 999999 | |
| 4.36 | -17.00 | 2.19 | -17.00 | 11.17 | 279.00 | -5.90 | 35.75 | 0.1734 | -1158.2 | 999999 | |
| 4.72 | -17.00 | 2.38 | -17.00 | 11.97 | 278.95 | -5.95 | 33.37 | 0.1852 | -992.7 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 8.90 | 278.85 | -6.05 | 45.93 | 0.1455 | -776.0 | -590.9 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 12.43 | 278.76 | -6.15 | 32.85 | 0.1936 | -913.0 | -759.1 | |
| 3.45 | -17.00 | 1.74 | -17.00 | 11.17 | 278.75 | -6.15 | 36.88 | 0.1760 | -1077.3 | 999999 | |
| 0.00 | 4.36 | 0.00 | 2.20 | 12.71 | 278.66 | -6.25 | 32.49 | 0.1985 | -995.0 | -790.1 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 11.57 | 278.65 | -6.25 | 35.97 | 0.1825 | -927.0 | -730.3 | |
| 0.00 | 4.27 | 0.00 | 2.14 | 10.25 | 278.64 | -6.26 | 40.82 | 0.1648 | -852.0 | -659.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 11.88 | 278.58 | -6.32 | 35.27 | 0.1874 | -620.0 | -529.9 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 11.44 | 278.46 | -6.44 | 37.17 | 0.1827 | -585.0 | -594.3 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 12.62 | 278.44 | -6.46 | 33.64 | 0.1992 | -623.0 | -519.2 | |
| 4.18 | -17.00 | 2.10 | -17.00 | 11.14 | 278.38 | -6.52 | 38.61 | 0.1795 | -971.6 | 999999 | |
| 0.00 | 4.90 | 0.00 | 2.47 | 11.69 | 278.24 | -6.66 | 37.29 | 0.1884 | -592.0 | -547.7 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 8.68 | 277.93 | -6.98 | 51.04 | 0.1551 | -716.0 | -544.5 | |
| 0.00 | 0.36 | 0.00 | 0.18 | 10.98 | 277.85 | -7.05 | 41.35 | 0.1833 | -76.0 | -44.8 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 10.70 | 277.73 | -7.17 | 42.87 | 0.1811 | 730.0 | 548.5 | |
| 0.00 | 3.36 | 0.00 | 1.69 | 10.88 | 277.38 | -7.52 | 43.51 | 0.1875 | -224.0 | -272.0 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 11.31 | 277.09 | -7.81 | 43.02 | 0.1962 | 873.0 | 671.9 | |
| 0.00 | 2.09 | 0.00 | 1.06 | 13.57 | 276.80 | -8.10 | 37.02 | 0.2285 | -856.0 | -604.5 | |
| 0.00 | 3.45 | 0.00 | 1.76 | 14.52 | 276.29 | -8.61 | 36.18 | 0.2466 | -997.0 | -672.1 | |
| 1.27 | 4.27 | 0.65 | 2.17 | 12.54 | 276.17 | -8.73 | 42.08 | 0.2221 | 1150.6 | 876.7 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 14.62 | 276.03 | -8.87 | 36.76 | 0.2504 | -751.0 | -605.1 | |
| 0.00 | 3.36 | 0.00 | 1.71 | 12.23 | 276.12 | -8.78 | 43.22 | 0.2189 | 892.0 | 719.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.83 | 276.02 | -8.88 | 36.25 | 0.2534 | -462.0 | -402.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 11.21 | 276.12 | -8.78 | 46.68 | 0.2068 | 863.0 | 702.5 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 12.32 | 275.71 | -9.20 | 44.23 | 0.2248 | 1091.0 | 853.7 | |
| 0.00 | 4.36 | 0.00 | 2.24 | 15.86 | 275.34 | -9.56 | 35.87 | 0.2739 | 900.0 | 778.5 | |
| 4.81 | 23.97 | 2.44 | 12.17 | 11.64 | 275.29 | -9.62 | 47.73 | 0.2221 | 1103.6 | 805.2 | |
| 1.36 | 5.63 | 0.70 | 2.87 | 13.37 | 275.19 | -9.71 | 42.59 | 0.2435 | 1080.9 | 874.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 13.21 | 275.01 | -9.89 | 43.57 | 0.2438 | 940.0 | 775.0 | |
| 2.63 | 9.72 | 1.34 | 4.95 | 11.95 | 274.96 | -9.94 | 47.64 | 0.2296 | 1104.6 | 874.4 | |
| 2.45 | -50.00 | 1.25 | -50.00 | 12.19 | 274.95 | -9.95 | 46.86 | 0.2325 | 1146.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 14.86 | 274.78 | -10.12 | 39.79 | 0.2667 | -445.0 | -410.0 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 13.37 | 274.81 | -10.09 | 43.68 | 0.2479 | 1117.0 | 934.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 12.75 | 274.80 | -10.10 | 45.53 | 0.2407 | 941.0 | 722.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.58 | 274.74 | -10.16 | 43.27 | 0.2514 | 873.0 | 636.4 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 13.15 | 274.72 | -10.18 | 44.55 | 0.2464 | 1016.0 | 943.3 | |
| 0.73 | 2.18 | 0.37 | 1.11 | 12.37 | 274.66 | -10.24 | 47.09 | 0.2382 | 982.6 | 746.0 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.15 | 274.53 | -10.37 | 45.08 | 0.2486 | 923.0 | 717.5 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 14.01 | 274.43 | -10.47 | 42.91 | 0.2601 | 916.0 | 726.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 12.96 | 274.41 | -10.49 | 45.95 | 0.2479 | 892.0 | 762.1 | |
| 1.09 | 3.09 | 0.56 | 1.58 | 13.58 | 274.32 | -10.58 | 44.40 | 0.2562 | 1280.3 | 1022.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 13.79 | 274.28 | -10.62 | 43.91 | 0.2592 | 1021.0 | 804.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 16.07 | 274.14 | -10.76 | 38.60 | 0.2889 | -850.0 | -734.9 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 13.02 | 274.22 | -10.68 | 46.29 | 0.2510 | 908.0 | 748.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 13.24 | 274.21 | -10.69 | 45.67 | 0.2535 | 842.0 | 691.9 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 13.42 | 274.14 | -10.76 | 45.33 | 0.2566 | 878.0 | 765.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 13.61 | 274.04 | -10.87 | 45.07 | 0.2599 | 987.0 | 847.3 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 13.30 | 273.99 | -10.92 | 46.09 | 0.2570 | 705.0 | 556.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 14.38 | 273.65 | -11.26 | 43.96 | 0.2736 | 799.0 | 740.7 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 13.73 | 273.65 | -11.26 | 45.72 | 0.2660 | 635.0 | 623.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 13.97 | 273.57 | -11.33 | 45.23 | 0.2698 | 945.0 | 763.0 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.44 | 273.51 | -11.39 | 44.12 | 0.2758 | 739.0 | 592.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 14.00 | 273.41 | -11.49 | 45.54 | 0.2720 | 753.0 | 678.0 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 15.15 | 273.32 | -11.59 | 42.79 | 0.2866 | 715.0 | 584.1 | |
| 0.00 | 3.90 | 0.00 | 2.01 | 14.22 | 273.27 | -11.63 | 45.30 | 0.2762 | 966.0 | 763.6 | |
| 0.00 | 3.90 | 0.00 | 2.02 | 15.27 | 272.86 | -12.04 | 43.58 | 0.2933 | 845.0 | 779.2 | |
| 0.00 | 2.54 | 0.00 | 1.32 | 15.96 | 272.75 | -12.15 | 42.19 | 0.3026 | 972.0 | 751.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 14.53 | 272.84 | -12.07 | 45.52 | 0.2849 | 1046.0 | 826.7 | |
| 0.73 | 1.73 | 0.38 | 0.90 | 15.68 | 272.71 | -12.20 | 42.96 | 0.2998 | 994.6 | 853.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 15.15 | 272.61 | -12.29 | 44.47 | 0.2947 | 868.0 | 671.0 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 14.87 | 272.46 | -12.44 | 45.50 | 0.2932 | 873.0 | 725.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
