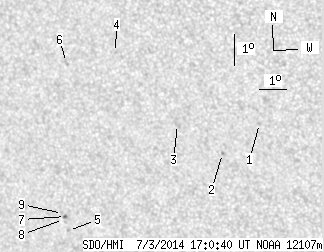

SDO HMI 2014-07-03 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 12.98 | 0.35 | 7.93 | -12.41 | 252.58 | -32.32 | 116.46 | 0.5851 | 80.6 | 200.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.79 | -11.66 | 257.66 | -27.24 | 119.08 | 0.5150 | 810.0 | 603.0 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -12.64 | 256.24 | -28.66 | 119.55 | 0.5400 | 746.0 | 652.6 | |
| 0.00 | 2.72 | 0.00 | 1.62 | -11.77 | 254.74 | -30.17 | 116.93 | 0.5539 | 649.0 | 625.6 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -9.56 | 252.74 | -32.16 | 111.95 | 0.5681 | 784.0 | 602.2 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -15.27 | 250.13 | -34.77 | 119.10 | 0.6319 | -640.0 | -539.6 | |
| 0.00 | 2.36 | 0.00 | 1.45 | -9.93 | 250.89 | -34.02 | 111.48 | 0.5943 | 561.0 | 498.2 | |
| 0.54 | 1.63 | 0.35 | 1.04 | -14.82 | 250.10 | -34.80 | 118.44 | 0.6297 | -856.7 | -734.9 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -14.92 | 250.01 | -34.90 | 118.52 | 0.6314 | -438.0 | -502.8 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -14.73 | 250.00 | -34.90 | 118.24 | 0.6303 | -562.0 | -541.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
