SDO HMI 2014-07-03 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 146.18 | 730.42 | 184.50 | 908.77 | -7.78 | 219.06 | -65.85 | 99.91 | 0.9180 | 163.5 | -8.3 | |
|
previous
or next observation for the same group /

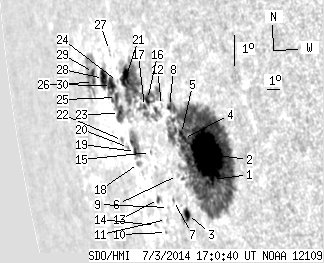

back to the solar disc SDO HMI 2014-07-03 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.27 | 483.61 | 0.31 | 555.17 | -9.09 | 221.78 | -63.13 | 101.68 | 0.9012 | 568.7 | 155.5 | |
| 82.63 | -1.00 | 93.79 | -1.00 | -8.32 | 221.67 | -63.23 | 100.82 | 0.9012 | 726.6 | 999999 | |
| 4.99 | 10.90 | 6.20 | 13.59 | -10.29 | 219.54 | -65.36 | 102.66 | 0.9182 | 185.2 | -173.5 | |
| 2.91 | -1.00 | 3.48 | -1.00 | -7.90 | 220.09 | -64.81 | 100.14 | 0.9123 | 169.6 | 999999 | |
| 1.63 | -1.00 | 1.97 | -1.00 | -7.75 | 219.99 | -64.91 | 99.96 | 0.9129 | 311.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.47 | -9.09 | 219.25 | -65.65 | 101.32 | 0.9191 | -480.0 | -444.5 | |
| 0.00 | 1.18 | 0.00 | 1.51 | -9.90 | 218.63 | -66.27 | 102.10 | 0.9239 | -119.0 | -126.3 | |
| 2.54 | -1.00 | 3.12 | -1.00 | -6.95 | 219.33 | -65.58 | 99.00 | 0.9168 | 122.6 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.36 | -10.14 | 218.14 | -66.76 | 102.29 | 0.9273 | -446.0 | -468.7 | |
| 0.00 | 0.91 | 0.00 | 1.22 | -10.95 | 217.62 | -67.29 | 103.08 | 0.9313 | -432.0 | -482.9 | |
| 0.00 | 0.64 | 0.00 | 0.85 | -10.54 | 217.81 | -67.09 | 102.66 | 0.9298 | -456.0 | -401.4 | |
| 0.00 | 1.18 | 0.00 | 1.48 | -6.95 | 218.72 | -66.18 | 98.93 | 0.9209 | 270.0 | 229.0 | |
| 1.36 | 3.18 | 1.84 | 4.29 | -9.93 | 217.42 | -67.48 | 101.96 | 0.9317 | -562.6 | -508.9 | |
| 0.00 | 0.27 | 0.00 | 0.38 | -10.78 | 216.79 | -68.11 | 102.78 | 0.9362 | -432.0 | -364.3 | |
| 0.00 | 0.91 | 0.00 | 1.22 | -8.47 | 217.35 | -67.55 | 100.40 | 0.9309 | -497.0 | -441.8 | |
| 3.54 | 164.80 | 4.65 | 231.46 | -6.82 | 217.66 | -67.25 | 98.66 | 0.9278 | 95.2 | -381.4 | |
| 1.45 | -16.00 | 1.94 | -16.00 | -7.05 | 217.34 | -67.56 | 98.87 | 0.9300 | -120.8 | 999999 | |
| 0.00 | 2.54 | 0.00 | 3.59 | -8.87 | 216.19 | -68.71 | 100.68 | 0.9383 | -531.0 | -455.8 | |
| 1.82 | 20.07 | 2.58 | 28.43 | -8.51 | 216.08 | -68.82 | 100.28 | 0.9387 | -477.9 | -533.3 | |
| 0.00 | 1.18 | 0.00 | 1.72 | -8.41 | 215.50 | -69.40 | 100.11 | 0.9420 | -262.0 | -253.8 | |
| 10.90 | -16.00 | 15.38 | -16.00 | -6.22 | 216.00 | -68.90 | 97.84 | 0.9377 | -697.2 | 999999 | |
| 0.00 | 1.91 | 0.00 | 2.85 | -8.22 | 215.04 | -69.86 | 99.85 | 0.9445 | -465.0 | -389.2 | |
| 7.54 | -16.00 | 11.14 | -16.00 | -7.38 | 215.09 | -69.81 | 98.97 | 0.9437 | -658.7 | 999999 | |
| 0.00 | 0.73 | 0.00 | 1.06 | -6.38 | 215.25 | -69.65 | 97.94 | 0.9423 | -445.0 | -347.4 | |
| 2.54 | -16.00 | 3.77 | -16.00 | -6.89 | 214.99 | -69.91 | 98.44 | 0.9440 | -646.1 | 999999 | |
| 8.08 | -16.00 | 12.18 | -16.00 | -6.54 | 214.65 | -70.25 | 98.04 | 0.9457 | -592.9 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.41 | -5.45 | 214.80 | -70.11 | 96.90 | 0.9443 | -219.0 | -222.3 | |
| 9.53 | -16.00 | 14.85 | -16.00 | -6.36 | 213.96 | -70.94 | 97.78 | 0.9494 | -229.7 | 999999 | |
| 2.36 | 34.69 | 3.87 | 57.71 | -6.22 | 213.03 | -71.87 | 97.54 | 0.9543 | -205.6 | 194.1 | |
| 2.09 | -29.00 | 3.43 | -29.00 | -6.50 | 212.93 | -71.97 | 97.83 | 0.9550 | -197.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
