SDO HMI 2014-07-03 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.71 | 33.87 | 12.90 | 29.32 | -16.05 | 232.71 | -52.20 | 112.09 | 0.8209 | -137.1 | 66.3 | |
|
previous
or next observation for the same group /

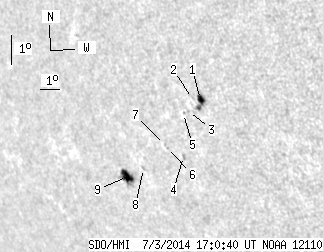

back to the solar disc SDO HMI 2014-07-03 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.54 | 9.99 | 3.64 | 8.03 | -14.34 | 235.58 | -49.33 | 110.98 | 0.7892 | 740.1 | 537.2 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -14.32 | 235.19 | -49.71 | 110.83 | 0.7930 | 376.0 | 342.3 | |
| 0.00 | 1.18 | 0.00 | 0.96 | -14.75 | 234.86 | -50.04 | 111.24 | 0.7975 | 199.0 | 203.1 | |
| 0.00 | 2.27 | 0.00 | 1.90 | -16.22 | 234.11 | -50.79 | 112.76 | 0.8090 | 431.0 | 326.8 | |
| 0.00 | 0.64 | 0.00 | 0.52 | -14.83 | 234.59 | -50.31 | 111.25 | 0.8004 | 349.0 | 330.7 | |
| 0.00 | 0.36 | 0.00 | 0.31 | -15.97 | 233.39 | -51.51 | 112.22 | 0.8150 | -527.0 | -415.5 | |
| 0.00 | 0.64 | 0.00 | 0.54 | -15.88 | 233.27 | -51.63 | 112.07 | 0.8159 | -555.0 | -421.9 | |
| 0.00 | 1.45 | 0.00 | 1.29 | -16.71 | 231.85 | -53.05 | 112.60 | 0.8312 | -506.0 | -374.1 | |
| 10.17 | 17.07 | 9.26 | 15.55 | -17.01 | 230.86 | -54.04 | 112.64 | 0.8407 | -560.5 | -237.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
