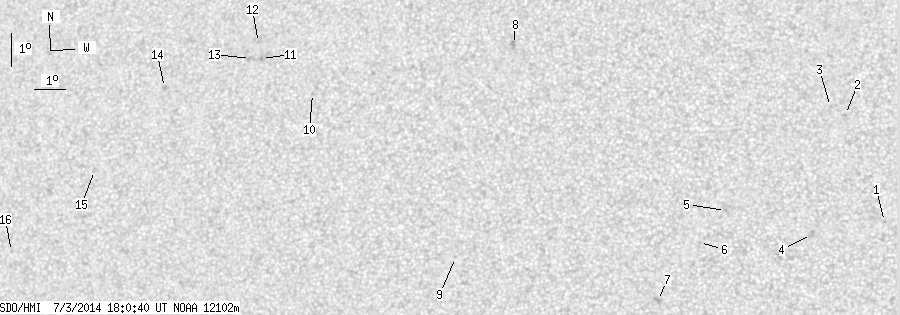

SDO HMI 2014-07-03 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 29.42 | 0.00 | 15.39 | 5.94 | 268.15 | -16.20 | 79.01 | 0.2839 | 50.1 | 93.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.50 | 3.93 | 281.02 | -3.33 | 76.38 | 0.0599 | -849.0 | -618.7 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 7.19 | 279.80 | -4.54 | 47.93 | 0.1064 | -752.0 | -595.7 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 7.44 | 279.34 | -5.01 | 49.02 | 0.1152 | -830.0 | -660.2 | |
| 0.00 | 3.72 | 0.00 | 1.85 | 3.53 | 278.78 | -5.56 | 85.76 | 0.0975 | -806.0 | -689.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 4.25 | 276.13 | -8.21 | 82.01 | 0.1445 | -894.0 | -728.5 | |
| 0.00 | 0.73 | 0.00 | 0.36 | 3.27 | 275.34 | -9.01 | 88.90 | 0.1570 | -832.0 | -603.9 | |
| 0.00 | 3.72 | 0.00 | 1.88 | 1.49 | 274.05 | -10.30 | 98.85 | 0.1816 | -942.0 | -700.8 | |
| 0.00 | 3.72 | 0.00 | 1.92 | 9.25 | 269.37 | -14.98 | 66.98 | 0.2784 | 962.0 | 799.0 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 2.73 | 267.70 | -16.64 | 90.97 | 0.2874 | 751.0 | 500.5 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 7.65 | 262.92 | -21.43 | 77.17 | 0.3729 | 703.0 | 574.2 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 8.69 | 261.16 | -23.19 | 75.43 | 0.4038 | 936.0 | 834.0 | |
| 0.00 | 0.27 | 0.00 | 0.15 | 9.18 | 261.03 | -23.32 | 74.33 | 0.4076 | 670.0 | 611.3 | |
| 0.00 | 4.09 | 0.00 | 2.22 | 8.68 | 260.79 | -23.55 | 75.64 | 0.4095 | 593.0 | 507.8 | |
| 0.00 | 2.81 | 0.00 | 1.56 | 7.73 | 257.93 | -26.42 | 78.99 | 0.4510 | 733.0 | 669.1 | |
| 0.00 | 1.73 | 0.00 | 0.97 | 5.14 | 255.65 | -28.69 | 85.02 | 0.4819 | 702.0 | 631.8 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 2.60 | 252.82 | -31.53 | 90.15 | 0.5245 | 657.0 | 499.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
