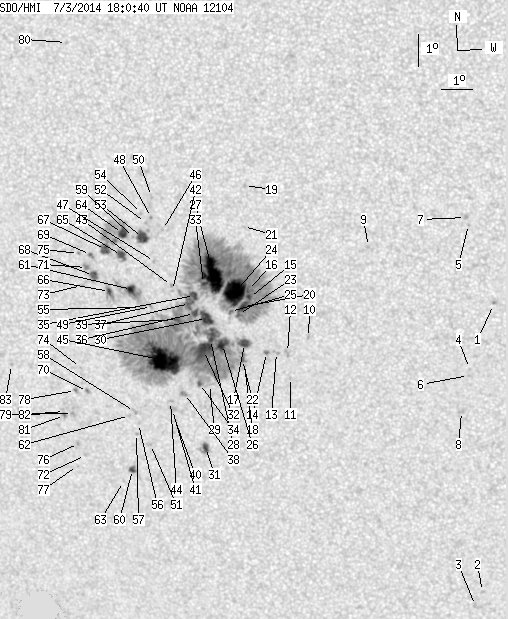

SDO HMI 2014-07-03 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 262.58 | 1332.70 | 139.89 | 710.68 | -11.34 | 268.42 | -15.93 | 132.67 | 0.3682 | 438.4 | 124.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.33 | -10.84 | 277.83 | -6.51 | 155.20 | 0.2668 | 686.0 | 741.0 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -20.08 | 277.16 | -7.19 | 163.39 | 0.4127 | 823.0 | 620.2 | |
| 0.00 | 2.18 | 0.00 | 1.19 | -20.55 | 276.91 | -7.44 | 163.19 | 0.4209 | 752.0 | 589.8 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -12.86 | 277.03 | -7.32 | 155.70 | 0.3032 | 649.0 | 489.7 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -8.34 | 277.11 | -7.24 | 147.88 | 0.2355 | 732.0 | 554.9 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -13.08 | 276.99 | -7.36 | 155.90 | 0.3069 | 779.0 | 672.4 | |
| 0.00 | 2.27 | 0.00 | 1.16 | -8.13 | 277.02 | -7.33 | 147.06 | 0.2332 | 904.0 | 718.4 | |
| 0.00 | 3.18 | 0.00 | 1.66 | -14.23 | 276.73 | -7.62 | 156.67 | 0.3260 | 629.0 | 639.5 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -9.05 | 273.97 | -10.38 | 139.77 | 0.2766 | 840.0 | 716.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -11.92 | 271.96 | -12.38 | 140.94 | 0.3345 | 884.0 | 751.3 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -13.20 | 271.32 | -13.03 | 141.90 | 0.3572 | 746.0 | 638.3 | |
| 0.00 | 3.90 | 0.00 | 2.06 | -12.41 | 271.27 | -13.08 | 140.33 | 0.3478 | 828.0 | 599.4 | |
| 0.00 | 2.45 | 0.00 | 1.30 | -12.41 | 270.91 | -13.43 | 139.60 | 0.3515 | 853.0 | 794.9 | |
| 0.54 | 2.18 | 0.29 | 1.15 | -12.41 | 270.59 | -13.75 | 138.94 | 0.3550 | 1013.0 | 850.9 | |
| 2.09 | 1109.26 | 1.10 | 590.69 | -10.69 | 270.14 | -14.21 | 134.53 | 0.3398 | 1079.1 | 113.7 | |
| 2.09 | -15.00 | 1.10 | -15.00 | -10.47 | 270.08 | -14.26 | 133.95 | 0.3379 | 1354.3 | 999999 | |
| 6.45 | -15.00 | 3.42 | -15.00 | -12.14 | 269.90 | -14.45 | 137.02 | 0.3593 | 1114.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -12.80 | 269.86 | -14.48 | 138.21 | 0.3676 | 370.0 | 480.6 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -7.20 | 270.12 | -14.22 | 126.09 | 0.3030 | 834.0 | 667.6 | |
| 7.54 | -15.00 | 3.98 | -15.00 | -10.97 | 269.93 | -14.41 | 134.73 | 0.3455 | 1048.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -8.47 | 270.05 | -14.30 | 129.23 | 0.3168 | -636.0 | -454.6 | |
| 1.18 | -15.00 | 0.63 | -15.00 | -12.65 | 269.81 | -14.54 | 137.81 | 0.3663 | 816.5 | 999999 | |
| 1.73 | -15.00 | 0.91 | -15.00 | -11.23 | 269.76 | -14.59 | 134.91 | 0.3504 | 825.9 | 999999 | |
| 39.95 | -15.00 | 21.06 | -15.00 | -10.50 | 269.70 | -14.65 | 133.27 | 0.3430 | 1457.8 | 999999 | |
| 1.00 | -15.00 | 0.53 | -15.00 | -11.13 | 269.51 | -14.84 | 134.24 | 0.3523 | 645.8 | 999999 | |
| 10.71 | -15.00 | 5.70 | -15.00 | -12.18 | 269.19 | -15.16 | 135.74 | 0.3678 | 1024.0 | 999999 | |
| 40.86 | -15.00 | 21.56 | -15.00 | -10.01 | 269.02 | -15.33 | 130.91 | 0.3459 | 1468.4 | 999999 | |
| 2.36 | -15.00 | 1.26 | -15.00 | -12.03 | 268.81 | -15.54 | 134.74 | 0.3704 | 881.1 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.46 | -13.45 | 268.69 | -15.66 | 137.20 | 0.3881 | -294.0 | -305.0 | |
| 11.62 | -15.00 | 6.18 | -15.00 | -11.37 | 268.72 | -15.63 | 133.25 | 0.3641 | 1103.3 | 999999 | |
| 3.63 | 8.26 | 1.98 | 4.50 | -15.47 | 268.40 | -15.94 | 140.14 | 0.4148 | 965.8 | 584.3 | |
| 19.25 | -15.00 | 10.29 | -15.00 | -12.38 | 268.56 | -15.78 | 134.97 | 0.3772 | -60.7 | 999999 | |
| 0.27 | -15.00 | 0.14 | -15.00 | -10.27 | 268.68 | -15.66 | 130.86 | 0.3528 | 867.7 | 999999 | |
| 1.45 | -15.00 | 0.78 | -15.00 | -13.43 | 268.36 | -15.98 | 136.57 | 0.3913 | -1149.3 | 999999 | |
| 4.27 | -15.00 | 2.27 | -15.00 | -10.65 | 268.37 | -15.97 | 131.13 | 0.3606 | 986.6 | 999999 | |
| 3.72 | -15.00 | 1.98 | -15.00 | -11.21 | 268.34 | -16.01 | 132.26 | 0.3670 | 819.7 | 999999 | |
| 6.26 | -15.00 | 3.33 | -15.00 | -10.90 | 268.20 | -16.15 | 131.36 | 0.3654 | 736.8 | 999999 | |
| 0.00 | 3.63 | 0.00 | 1.96 | -13.75 | 267.85 | -16.50 | 136.27 | 0.4007 | -1097.0 | -906.3 | |
| 2.91 | -15.00 | 1.55 | -15.00 | -11.41 | 267.78 | -16.57 | 131.69 | 0.3759 | 493.6 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -14.62 | 267.49 | -16.86 | 137.16 | 0.4145 | -730.0 | -583.5 | |
| 0.00 | 4.72 | 0.00 | 2.56 | -14.27 | 267.41 | -16.93 | 136.44 | 0.4113 | -727.0 | -723.0 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -10.50 | 267.67 | -16.68 | 129.61 | 0.3678 | 691.0 | 493.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -10.35 | 267.65 | -16.70 | 129.24 | 0.3665 | 835.0 | 675.5 | |
| 0.00 | 2.45 | 0.00 | 1.33 | -14.01 | 267.37 | -16.98 | 135.92 | 0.4090 | -880.0 | -650.8 | |
| 51.48 | -15.00 | 27.75 | -15.00 | -12.71 | 267.27 | -17.08 | 133.38 | 0.3958 | -1294.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -8.60 | 267.45 | -16.90 | 124.97 | 0.3523 | 820.0 | 555.8 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -9.60 | 267.14 | -17.21 | 126.78 | 0.3658 | 620.0 | 565.2 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -8.23 | 267.11 | -17.24 | 123.58 | 0.3535 | 971.0 | 811.9 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -11.01 | 266.96 | -17.39 | 129.52 | 0.3819 | -737.0 | -535.1 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -7.58 | 267.14 | -17.21 | 122.04 | 0.3474 | 486.0 | 492.4 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -15.40 | 266.59 | -17.75 | 137.02 | 0.4330 | -437.0 | -395.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -8.39 | 266.91 | -17.44 | 123.65 | 0.3577 | 749.0 | 677.0 | |
| 8.44 | 13.44 | 4.49 | 7.14 | -8.86 | 266.79 | -17.56 | 124.56 | 0.3635 | 1109.8 | 840.3 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -8.11 | 266.79 | -17.55 | 122.82 | 0.3568 | 939.0 | 746.0 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -11.05 | 266.60 | -17.75 | 129.03 | 0.3868 | -535.0 | -361.1 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -14.74 | 266.25 | -18.09 | 135.37 | 0.4293 | -741.0 | -565.6 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -15.06 | 266.16 | -18.19 | 135.76 | 0.4339 | -543.0 | -458.6 | |
| 0.00 | 2.27 | 0.00 | 1.24 | -14.35 | 266.15 | -18.19 | 134.56 | 0.4263 | -839.0 | -741.4 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -8.86 | 266.50 | -17.85 | 124.13 | 0.3674 | 696.0 | 619.8 | |
| 2.81 | 4.81 | 1.56 | 2.67 | -16.22 | 265.92 | -18.43 | 137.28 | 0.4493 | -1090.2 | -837.2 | |
| 5.45 | 27.42 | 2.92 | 14.71 | -10.49 | 266.34 | -18.01 | 127.47 | 0.3846 | 923.0 | 96.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -14.48 | 265.98 | -18.37 | 134.51 | 0.4297 | -809.0 | -601.1 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -16.61 | 265.57 | -18.77 | 137.38 | 0.4573 | -800.0 | -602.1 | |
| 6.45 | 53.30 | 3.44 | 28.48 | -8.74 | 266.15 | -18.20 | 123.35 | 0.3711 | 1017.2 | 351.6 | |
| 4.90 | 7.81 | 2.62 | 4.18 | -9.43 | 266.08 | -18.27 | 124.79 | 0.3782 | 1058.6 | 747.7 | |
| 2.27 | 11.26 | 1.22 | 6.07 | -10.57 | 265.62 | -18.73 | 126.55 | 0.3946 | 836.9 | 280.7 | |
| 6.08 | -64.00 | 3.26 | -64.00 | -9.25 | 265.57 | -18.78 | 123.67 | 0.3834 | 928.5 | 999999 | |
| 4.18 | 6.72 | 2.25 | 3.62 | -10.07 | 265.12 | -19.22 | 124.82 | 0.3965 | 1000.3 | 824.3 | |
| 0.64 | 2.54 | 0.34 | 1.37 | -9.42 | 265.07 | -19.28 | 123.34 | 0.3916 | 991.7 | 851.0 | |
| 0.00 | 2.18 | 0.00 | 1.20 | -13.74 | 264.65 | -19.70 | 131.25 | 0.4374 | -1083.0 | -872.0 | |
| 0.00 | 4.45 | 0.00 | 2.40 | -9.83 | 264.91 | -19.44 | 124.01 | 0.3972 | 960.0 | 804.3 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -15.80 | 264.38 | -19.97 | 134.35 | 0.4614 | -754.0 | -594.4 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -10.39 | 264.71 | -19.64 | 124.92 | 0.4049 | 617.0 | 523.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -12.98 | 264.48 | -19.87 | 129.65 | 0.4319 | -709.0 | -628.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -9.39 | 264.67 | -19.67 | 122.77 | 0.3967 | 708.0 | 577.3 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -15.41 | 264.18 | -20.16 | 133.46 | 0.4597 | -827.0 | -726.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -16.12 | 264.07 | -20.27 | 134.46 | 0.4682 | -695.0 | -570.6 | |
| 0.00 | 2.27 | 0.00 | 1.25 | -13.72 | 264.25 | -20.10 | 130.65 | 0.4419 | -809.0 | -690.6 | |
| 0.00 | 2.00 | 0.00 | 1.11 | -14.45 | 264.08 | -20.27 | 131.70 | 0.4512 | -880.0 | -753.3 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -2.88 | 264.54 | -19.80 | 106.71 | 0.3548 | 716.0 | 538.4 | |
| 0.00 | 2.27 | 0.00 | 1.26 | -14.52 | 263.80 | -20.54 | 131.44 | 0.4551 | -928.0 | -731.5 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -14.39 | 263.81 | -20.53 | 131.24 | 0.4536 | -595.0 | -554.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -12.93 | 262.17 | -22.18 | 126.56 | 0.4599 | -708.0 | -562.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
