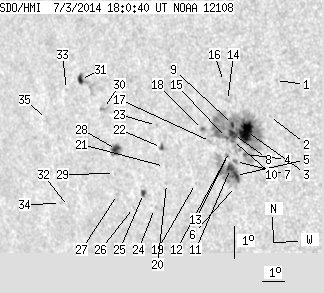

SDO HMI 2014-07-03 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.38 | 255.15 | 39.14 | 179.67 | -7.88 | 240.46 | -43.89 | 104.40 | 0.7106 | 250.0 | 126.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.67 | -5.94 | 243.29 | -41.06 | 102.46 | 0.6713 | 626.0 | 545.4 | |
| 0.00 | 0.45 | 0.00 | 0.31 | -7.07 | 242.93 | -41.42 | 103.99 | 0.6789 | 546.0 | 427.2 | |
| 20.88 | 153.08 | 14.31 | 105.40 | -7.57 | 241.92 | -42.43 | 104.38 | 0.6927 | 1040.4 | 321.1 | |
| 0.91 | -3.00 | 0.62 | -3.00 | -8.29 | 241.78 | -42.56 | 105.35 | 0.6964 | 947.2 | 999999 | |
| 5.45 | 41.86 | 3.79 | 29.28 | -8.96 | 241.26 | -43.08 | 106.11 | 0.7046 | 796.0 | -36.3 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -9.30 | 241.21 | -43.14 | 106.57 | 0.7063 | 128.0 | 120.6 | |
| 0.00 | 2.27 | 0.00 | 1.58 | -8.52 | 241.33 | -43.02 | 105.53 | 0.7026 | 876.0 | 773.6 | |
| 5.99 | -3.00 | 4.14 | -3.00 | -7.68 | 241.36 | -42.99 | 104.37 | 0.6999 | 572.6 | 999999 | |
| 1.45 | -3.00 | 1.00 | -3.00 | -7.37 | 241.35 | -42.99 | 103.93 | 0.6991 | 529.0 | 999999 | |
| 0.64 | -3.00 | 0.44 | -3.00 | -7.87 | 241.29 | -43.06 | 104.61 | 0.7012 | 575.6 | 999999 | |
| 4.90 | -5.00 | 3.42 | -5.00 | -8.75 | 241.08 | -43.26 | 105.76 | 0.7061 | 602.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -8.22 | 241.12 | -43.23 | 105.04 | 0.7042 | 555.0 | 444.4 | |
| 0.00 | 2.00 | 0.00 | 1.39 | -8.35 | 241.01 | -43.33 | 105.19 | 0.7058 | 542.0 | 390.9 | |
| 0.00 | 2.81 | 0.00 | 1.94 | -6.63 | 241.23 | -43.12 | 102.86 | 0.6987 | 463.0 | 378.9 | |
| 1.27 | -3.00 | 0.88 | -3.00 | -7.79 | 241.05 | -43.30 | 104.42 | 0.7039 | 370.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -6.05 | 241.12 | -43.22 | 102.01 | 0.6986 | 467.0 | 328.7 | |
| 0.00 | 2.09 | 0.00 | 1.47 | -7.94 | 240.34 | -44.00 | 104.41 | 0.7127 | -160.0 | -152.6 | |
| 0.64 | 1.91 | 0.45 | 1.35 | -7.57 | 240.05 | -44.30 | 103.83 | 0.7153 | -637.1 | -585.5 | |
| 0.00 | 0.36 | 0.00 | 0.26 | -9.27 | 239.49 | -44.85 | 105.97 | 0.7263 | 301.0 | 251.0 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -9.32 | 238.20 | -46.15 | 105.64 | 0.7412 | -649.0 | -593.7 | |
| 0.00 | 0.36 | 0.00 | 0.27 | -8.80 | 238.20 | -46.15 | 104.94 | 0.7398 | -451.0 | -456.8 | |
| 1.54 | 3.00 | 1.13 | 2.19 | -8.21 | 238.16 | -46.19 | 104.15 | 0.7388 | -702.7 | -560.6 | |
| 0.00 | 1.27 | 0.00 | 0.93 | -7.53 | 238.04 | -46.31 | 103.21 | 0.7386 | -563.0 | -469.5 | |
| 0.00 | 0.64 | 0.00 | 0.47 | -10.13 | 237.51 | -46.84 | 106.49 | 0.7511 | -593.0 | -539.9 | |
| 2.27 | 3.72 | 1.71 | 2.80 | -9.68 | 237.09 | -47.25 | 105.78 | 0.7545 | -718.5 | -550.5 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -10.14 | 236.55 | -47.80 | 106.21 | 0.7617 | -366.0 | -240.9 | |
| 0.00 | 1.45 | 0.00 | 1.12 | -9.76 | 235.88 | -48.47 | 105.53 | 0.7680 | -176.0 | -135.6 | |
| 5.90 | 10.62 | 4.50 | 8.11 | -8.35 | 236.09 | -48.26 | 103.78 | 0.7624 | -763.3 | -505.1 | |
| 0.00 | 0.64 | 0.00 | 0.49 | -9.11 | 235.86 | -48.49 | 104.69 | 0.7666 | 481.0 | 341.4 | |
| 0.00 | 3.09 | 0.00 | 2.36 | -7.10 | 235.68 | -48.67 | 102.06 | 0.7643 | -752.0 | -554.7 | |
| 3.54 | 12.53 | 2.75 | 9.70 | -6.24 | 234.71 | -49.64 | 100.75 | 0.7732 | -636.6 | -590.1 | |
| 0.00 | 0.82 | 0.00 | 0.66 | -10.24 | 233.42 | -50.93 | 105.47 | 0.7949 | -528.0 | -486.6 | |
| 0.00 | 0.82 | 0.00 | 0.65 | -6.58 | 233.99 | -50.35 | 101.03 | 0.7816 | -401.0 | -348.9 | |
| 0.00 | 0.91 | 0.00 | 0.74 | -10.16 | 233.04 | -51.31 | 105.28 | 0.7986 | -508.0 | -437.1 | |
| 0.00 | 2.18 | 0.00 | 1.77 | -7.56 | 232.86 | -51.49 | 102.01 | 0.7952 | -525.0 | -439.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
