SDO HMI 2014-07-03 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 253.29 | 1331.53 | 134.60 | 708.22 | -11.30 | 268.39 | -15.40 | 133.54 | 0.3613 | 413.4 | 122.6 | |
|
previous
or next observation for the same group /

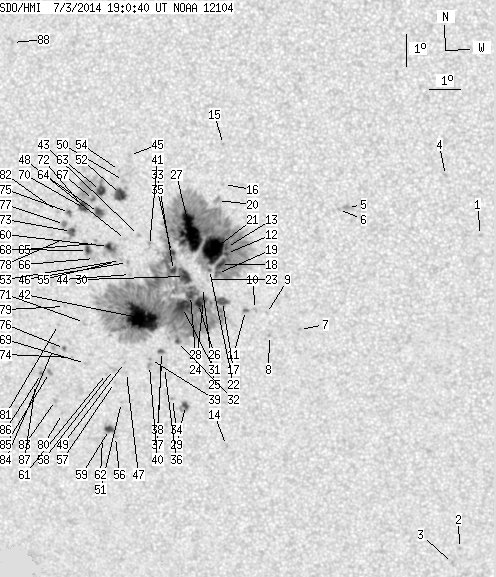

back to the solar disc SDO HMI 2014-07-03 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.84 | -10.01 | 278.11 | -5.68 | 156.78 | 0.2484 | 810.0 | 572.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -20.07 | 277.13 | -6.66 | 164.54 | 0.4103 | 793.0 | 578.2 | |
| 0.00 | 1.91 | 0.00 | 1.04 | -20.57 | 276.88 | -6.91 | 164.34 | 0.4190 | 772.0 | 619.5 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -8.15 | 277.06 | -6.73 | 149.28 | 0.2283 | 926.0 | 707.6 | |
| 0.00 | 4.36 | 0.00 | 2.24 | -9.16 | 273.98 | -9.81 | 141.61 | 0.2721 | 933.0 | 763.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.23 | 273.70 | -10.10 | 140.96 | 0.2759 | 756.0 | 560.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -13.02 | 272.31 | -11.48 | 145.03 | 0.3397 | 862.0 | 700.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -13.22 | 271.34 | -12.45 | 143.19 | 0.3517 | 837.0 | 675.1 | |
| 0.00 | 0.64 | 0.00 | 0.34 | -12.52 | 271.29 | -12.51 | 141.80 | 0.3433 | 708.0 | 569.9 | |
| 0.00 | 2.18 | 0.00 | 1.15 | -12.40 | 270.94 | -12.85 | 140.82 | 0.3453 | 994.0 | 779.3 | |
| 0.73 | 2.27 | 0.38 | 1.20 | -12.43 | 270.62 | -13.17 | 140.19 | 0.3491 | 995.4 | 805.3 | |
| 1.82 | 1099.42 | 0.95 | 583.86 | -10.64 | 270.10 | -13.69 | 135.50 | 0.3333 | 1091.8 | 109.6 | |
| 1.36 | -12.00 | 0.71 | -12.00 | -10.45 | 270.11 | -13.68 | 135.11 | 0.3310 | 1387.0 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.09 | -16.76 | 269.72 | -14.07 | 145.51 | 0.4128 | 796.0 | 557.5 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -7.25 | 270.14 | -13.65 | 127.36 | 0.2959 | 802.0 | 621.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -8.49 | 270.10 | -13.69 | 130.51 | 0.3093 | -563.0 | -475.1 | |
| 5.81 | -12.00 | 3.08 | -12.00 | -12.16 | 269.89 | -13.90 | 138.16 | 0.3535 | 1135.8 | 999999 | |
| 5.63 | -12.00 | 2.96 | -12.00 | -10.99 | 269.89 | -13.90 | 135.81 | 0.3398 | 1050.3 | 999999 | |
| 2.63 | -12.00 | 1.39 | -12.00 | -11.28 | 269.78 | -14.01 | 136.18 | 0.3443 | 843.8 | 999999 | |
| 0.00 | 4.99 | 0.00 | 2.61 | -8.99 | 269.89 | -13.91 | 131.30 | 0.3173 | 210.0 | 147.6 | |
| 40.13 | -12.00 | 21.10 | -12.00 | -10.52 | 269.69 | -14.10 | 134.40 | 0.3367 | 1460.3 | 999999 | |
| 0.54 | -12.00 | 0.29 | -12.00 | -11.15 | 269.53 | -14.26 | 135.42 | 0.3458 | 732.2 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -11.47 | 269.45 | -14.34 | 135.91 | 0.3504 | 655.0 | 512.2 | |
| 3.18 | -12.00 | 1.69 | -12.00 | -12.13 | 269.28 | -14.51 | 136.90 | 0.3600 | 1140.3 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -11.72 | 269.28 | -14.52 | 136.08 | 0.3553 | 926.0 | 805.4 | |
| 4.72 | -12.00 | 2.51 | -12.00 | -12.23 | 269.12 | -14.67 | 136.77 | 0.3630 | 980.6 | 999999 | |
| 48.30 | -12.00 | 25.43 | -12.00 | -10.00 | 268.98 | -14.81 | 131.86 | 0.3395 | 1416.2 | 999999 | |
| 4.81 | -12.00 | 2.56 | -12.00 | -11.98 | 268.87 | -14.92 | 135.81 | 0.3628 | 922.0 | 999999 | |
| 2.81 | 7.45 | 1.53 | 4.04 | -15.49 | 268.47 | -15.32 | 141.29 | 0.4087 | 1008.5 | 666.9 | |
| 12.35 | -12.00 | 6.55 | -12.00 | -11.38 | 268.72 | -15.08 | 134.31 | 0.3579 | 1094.6 | 999999 | |
| 16.07 | -12.00 | 8.57 | -12.00 | -12.36 | 268.59 | -15.20 | 136.03 | 0.3704 | 0.1 | 999999 | |
| 1.54 | -12.00 | 0.83 | -12.00 | -13.44 | 268.36 | -15.43 | 137.61 | 0.3855 | -1124.3 | 999999 | |
| 3.63 | -12.00 | 1.93 | -12.00 | -11.20 | 268.37 | -15.42 | 133.30 | 0.3599 | 849.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -15.27 | 268.07 | -15.73 | 140.20 | 0.4102 | 748.0 | 619.2 | |
| 3.18 | -12.00 | 1.68 | -12.00 | -10.63 | 268.34 | -15.45 | 132.05 | 0.3542 | 966.7 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.18 | -14.28 | 267.88 | -15.91 | 138.22 | 0.4004 | -839.0 | -461.8 | |
| 1.54 | 3.09 | 0.83 | 1.66 | -13.77 | 267.82 | -15.97 | 137.22 | 0.3952 | -1069.5 | -807.9 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -14.12 | 267.79 | -16.00 | 137.79 | 0.3995 | -865.0 | -698.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -14.03 | 267.44 | -16.35 | 137.02 | 0.4023 | -1068.0 | -814.9 | |
| 0.00 | 3.27 | 0.00 | 1.77 | -14.22 | 267.39 | -16.40 | 137.27 | 0.4050 | -927.0 | -755.9 | |
| 0.00 | 2.27 | 0.00 | 1.20 | -10.43 | 267.64 | -16.15 | 130.35 | 0.3605 | 628.0 | 603.1 | |
| 49.21 | -12.00 | 26.45 | -12.00 | -12.73 | 267.27 | -16.52 | 134.36 | 0.3896 | -1315.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -10.12 | 267.30 | -16.49 | 129.10 | 0.3616 | 809.0 | 641.8 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -11.35 | 266.97 | -16.82 | 131.14 | 0.3783 | -522.0 | -437.5 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -7.63 | 267.13 | -16.66 | 123.00 | 0.3403 | 889.0 | 609.8 | |
| 0.00 | 2.09 | 0.00 | 1.12 | -10.97 | 266.90 | -16.89 | 130.24 | 0.3754 | -805.0 | -504.7 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -14.46 | 266.62 | -17.17 | 136.38 | 0.4162 | -805.0 | -625.3 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -10.25 | 266.87 | -16.92 | 128.68 | 0.3684 | 735.0 | 593.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -14.14 | 266.58 | -17.21 | 135.76 | 0.4130 | -832.0 | -702.0 | |
| 0.00 | 1.82 | 0.00 | 0.96 | -8.41 | 266.90 | -16.89 | 124.55 | 0.3504 | 821.0 | 622.2 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -15.42 | 266.37 | -17.42 | 137.59 | 0.4297 | -372.0 | -287.5 | |
| 9.44 | 14.71 | 5.00 | 7.79 | -8.84 | 266.79 | -17.00 | 125.39 | 0.3560 | 1094.5 | 783.0 | |
| 0.00 | 0.64 | 0.00 | 0.34 | -10.91 | 266.67 | -17.12 | 129.75 | 0.3775 | -359.0 | -245.3 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -8.10 | 266.79 | -17.00 | 123.63 | 0.3491 | 782.0 | 709.8 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -10.94 | 266.54 | -17.25 | 129.61 | 0.3795 | -344.0 | -303.5 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -16.53 | 266.07 | -17.72 | 138.86 | 0.4454 | 397.0 | 197.4 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -14.79 | 266.19 | -17.60 | 136.25 | 0.4244 | -716.0 | -586.1 | |
| 0.00 | 3.63 | 0.00 | 1.98 | -14.37 | 266.20 | -17.60 | 135.54 | 0.4198 | -796.0 | -684.7 | |
| 3.90 | 7.35 | 2.16 | 4.06 | -16.30 | 265.89 | -17.90 | 138.23 | 0.4447 | -1072.4 | -664.7 | |
| 3.45 | 16.89 | 1.84 | 9.03 | -10.48 | 266.31 | -17.48 | 128.26 | 0.3778 | 924.7 | 324.7 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -14.50 | 265.95 | -17.84 | 135.38 | 0.4240 | -695.0 | -599.2 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -16.60 | 265.63 | -18.16 | 138.28 | 0.4508 | -819.0 | -626.9 | |
| 6.08 | 55.38 | 3.23 | 29.50 | -8.73 | 266.15 | -17.64 | 124.14 | 0.3635 | 1022.0 | 327.7 | |
| 4.63 | 7.90 | 2.47 | 4.21 | -9.42 | 266.05 | -17.75 | 125.55 | 0.3711 | 1093.9 | 759.1 | |
| 0.00 | 3.99 | 0.00 | 2.14 | -10.39 | 265.92 | -17.87 | 127.48 | 0.3819 | 320.0 | 2.7 | |
| 0.00 | 2.00 | 0.00 | 1.07 | -10.86 | 265.83 | -17.96 | 128.32 | 0.3876 | -8.0 | 34.1 | |
| 0.64 | -63.00 | 0.34 | -63.00 | -9.01 | 265.91 | -17.89 | 124.43 | 0.3693 | 965.3 | 999999 | |
| 3.00 | 8.81 | 1.61 | 4.73 | -10.61 | 265.62 | -18.17 | 127.48 | 0.3879 | 707.3 | 252.4 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -14.19 | 265.28 | -18.51 | 133.81 | 0.4282 | -737.0 | -633.3 | |
| 2.54 | -63.00 | 1.36 | -63.00 | -9.30 | 265.60 | -18.19 | 124.62 | 0.3760 | 968.8 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.48 | -12.89 | 265.36 | -18.43 | 131.57 | 0.4137 | -183.0 | -303.0 | |
| 3.63 | -63.00 | 1.94 | -63.00 | -9.21 | 265.54 | -18.25 | 124.33 | 0.3760 | 902.5 | 999999 | |
| 3.72 | 8.63 | 2.00 | 4.64 | -10.03 | 265.13 | -18.66 | 125.53 | 0.3888 | 1033.2 | 716.9 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -14.01 | 264.84 | -18.96 | 132.81 | 0.4314 | -710.0 | -559.7 | |
| 1.18 | 3.36 | 0.63 | 1.80 | -9.43 | 265.10 | -18.69 | 124.20 | 0.3838 | 1029.4 | 815.8 | |
| 0.64 | 2.00 | 0.35 | 1.10 | -13.73 | 264.63 | -19.16 | 132.01 | 0.4309 | -960.4 | -777.4 | |
| 0.00 | 4.27 | 0.00 | 2.29 | -9.81 | 264.92 | -18.88 | 124.76 | 0.3897 | 991.0 | 814.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -10.25 | 264.89 | -18.90 | 125.65 | 0.3940 | 680.0 | 496.0 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -12.39 | 264.74 | -19.05 | 129.71 | 0.4162 | -686.0 | -544.1 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -15.81 | 264.36 | -19.43 | 135.16 | 0.4557 | -690.0 | -574.4 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -12.97 | 264.49 | -19.30 | 130.43 | 0.4249 | -768.0 | -626.7 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -9.41 | 264.71 | -19.08 | 123.61 | 0.3888 | 777.0 | 563.9 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -15.40 | 264.17 | -19.62 | 134.21 | 0.4534 | -901.0 | -716.4 | |
| 0.00 | 2.45 | 0.00 | 1.35 | -13.73 | 264.26 | -19.53 | 131.49 | 0.4353 | -866.0 | -677.1 | |
| 0.00 | 2.81 | 0.00 | 1.56 | -14.50 | 264.06 | -19.73 | 132.54 | 0.4455 | -841.0 | -736.4 | |
| 0.45 | 2.63 | 0.25 | 1.46 | -14.54 | 263.79 | -20.01 | 132.22 | 0.4490 | -927.4 | -739.0 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -14.90 | 263.55 | -20.24 | 132.50 | 0.4553 | -645.0 | -454.7 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -4.20 | 263.47 | -20.32 | 109.76 | 0.3695 | 775.0 | 585.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
