SDO HMI 2014-07-03 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 9.17 | 0.27 | 5.40 | -11.62 | 254.60 | -29.19 | 117.60 | 0.5405 | 707.6 | 585.7 | |
|
previous
or next observation for the same group /

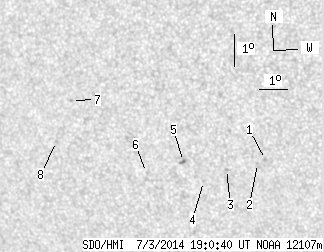

back to the solar disc SDO HMI 2014-07-03 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.78 | -11.68 | 257.71 | -26.09 | 120.18 | 0.5001 | 648.0 | 541.1 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -11.82 | 257.41 | -26.38 | 120.14 | 0.5049 | 729.0 | 596.5 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -12.03 | 256.31 | -27.49 | 119.53 | 0.5208 | 732.0 | 572.7 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -12.43 | 255.45 | -28.35 | 119.48 | 0.5347 | 751.0 | 618.8 | |
| 0.45 | 2.18 | 0.27 | 1.28 | -11.82 | 254.81 | -28.98 | 117.93 | 0.5389 | 877.0 | 714.0 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -12.20 | 253.43 | -30.36 | 117.51 | 0.5591 | 633.0 | 527.3 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -10.01 | 250.96 | -32.83 | 112.30 | 0.5792 | 745.0 | 617.2 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -11.32 | 250.24 | -33.55 | 113.95 | 0.5952 | 500.0 | 421.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
