SDO HMI 2014-07-03 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.79 | 45.86 | 12.61 | 38.14 | -15.85 | 233.40 | -50.39 | 112.48 | 0.8032 | -54.6 | 145.8 | |
|
previous
or next observation for the same group /

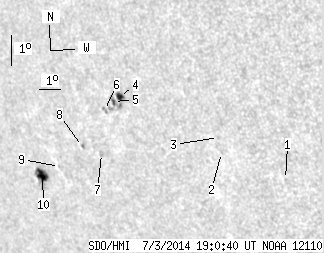

back to the solar disc SDO HMI 2014-07-03 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.64 | -16.68 | 242.36 | -41.43 | 117.21 | 0.7150 | 587.0 | 436.5 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -15.91 | 239.80 | -43.99 | 115.01 | 0.7394 | 538.0 | 444.9 | |
| 0.00 | 1.00 | 0.00 | 0.73 | -15.42 | 239.80 | -43.99 | 114.39 | 0.7375 | 604.0 | 552.6 | |
| 3.90 | 16.07 | 3.06 | 12.67 | -14.28 | 235.59 | -48.20 | 111.31 | 0.7776 | 817.9 | 368.7 | |
| 1.27 | -4.00 | 1.01 | -4.00 | -14.46 | 235.26 | -48.53 | 111.40 | 0.7816 | 441.1 | 999999 | |
| 0.00 | 2.72 | 0.00 | 2.18 | -14.77 | 234.73 | -49.06 | 111.60 | 0.7878 | 386.0 | 312.2 | |
| 0.00 | 2.91 | 0.00 | 2.38 | -16.17 | 234.13 | -49.66 | 113.09 | 0.7981 | 603.0 | 380.4 | |
| 0.00 | 1.54 | 0.00 | 1.28 | -15.98 | 233.25 | -50.54 | 112.56 | 0.8060 | -616.0 | -468.1 | |
| 0.00 | 0.91 | 0.00 | 0.78 | -16.69 | 231.81 | -51.98 | 112.92 | 0.8214 | -419.0 | -375.9 | |
| 9.62 | 18.98 | 8.54 | 16.88 | -17.02 | 230.78 | -53.01 | 112.98 | 0.8317 | -667.7 | -130.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
