SDO HMI 2014-07-03 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.70 | 0.00 | 13.60 | 5.53 | 265.05 | -18.18 | 80.16 | 0.3165 | 161.1 | 223.7 | |
|
previous
or next observation for the same group /

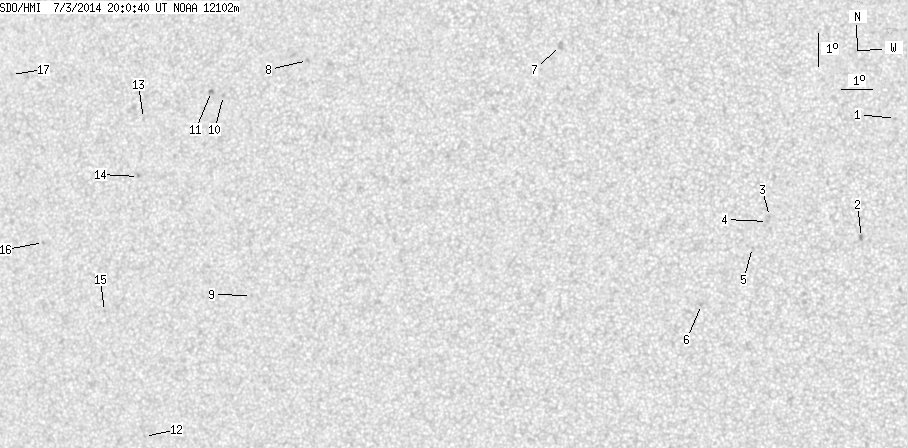

back to the solar disc SDO HMI 2014-07-03 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.50 | 7.18 | 279.90 | -3.34 | 39.39 | 0.0915 | -934.0 | -724.6 | |
| 0.00 | 2.27 | 0.00 | 1.13 | 3.55 | 278.87 | -4.36 | 84.62 | 0.0766 | -1049.0 | -865.8 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 4.18 | 276.04 | -7.19 | 81.62 | 0.1268 | -851.0 | -676.4 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 4.02 | 275.98 | -7.25 | 82.88 | 0.1275 | -891.0 | -703.1 | |
| 0.00 | 0.73 | 0.00 | 0.36 | 3.23 | 275.53 | -7.71 | 89.18 | 0.1345 | -773.0 | -551.8 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 1.48 | 273.96 | -9.27 | 99.99 | 0.1643 | -922.0 | -722.0 | |
| 0.00 | 4.45 | 0.00 | 2.28 | 9.34 | 269.40 | -13.83 | 65.11 | 0.2612 | 805.0 | 696.1 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 8.75 | 261.22 | -22.02 | 74.66 | 0.3858 | 958.0 | 785.7 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 1.55 | 259.62 | -23.61 | 93.33 | 0.4028 | 705.0 | 607.1 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 7.63 | 258.47 | -24.77 | 78.68 | 0.4252 | 904.0 | 637.7 | |
| 0.00 | 2.63 | 0.00 | 1.45 | 7.74 | 258.05 | -25.18 | 78.57 | 0.4319 | 824.0 | 722.4 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -2.84 | 255.97 | -27.26 | 102.12 | 0.4698 | 622.0 | 457.1 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 6.86 | 255.78 | -27.46 | 81.19 | 0.4652 | 423.0 | 349.6 | |
| 0.00 | 0.73 | 0.00 | 0.41 | 5.09 | 255.70 | -27.54 | 85.03 | 0.4641 | 835.0 | 694.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 0.95 | 254.63 | -28.61 | 93.79 | 0.4817 | 706.0 | 537.5 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 2.99 | 252.45 | -30.79 | 89.44 | 0.5132 | 722.0 | 610.8 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 8.08 | 251.00 | -32.24 | 79.86 | 0.5386 | 654.0 | 519.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
