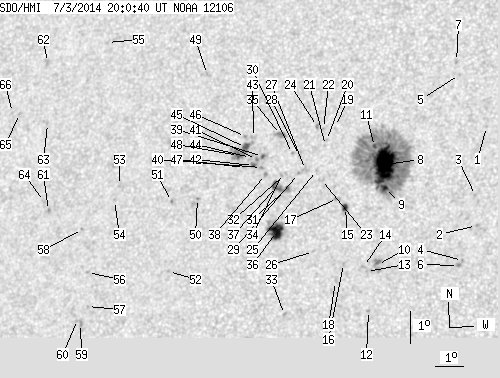

SDO HMI 2014-07-03 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.06 | 451.12 | 46.76 | 248.81 | 15.36 | 260.14 | -23.09 | 60.05 | 0.4376 | -292.8 | -164.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.44 | 16.93 | 265.02 | -18.22 | 51.15 | 0.3856 | -823.0 | -638.0 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 13.84 | 264.96 | -18.27 | 58.27 | 0.3595 | -974.0 | -795.5 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 14.77 | 264.85 | -18.38 | 56.19 | 0.3686 | -666.0 | -659.4 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 12.75 | 264.59 | -18.65 | 61.46 | 0.3566 | -907.0 | -676.6 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 18.55 | 263.93 | -19.30 | 49.40 | 0.4145 | -803.0 | -663.4 | |
| 0.00 | 1.91 | 0.00 | 1.01 | 12.59 | 264.47 | -18.77 | 62.00 | 0.3572 | -970.0 | -846.4 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 18.96 | 263.78 | -19.45 | 48.83 | 0.4202 | -672.0 | -609.9 | |
| 49.30 | 286.18 | 26.87 | 156.12 | 15.68 | 261.70 | -21.53 | 58.00 | 0.4184 | -1349.3 | -369.4 | |
| 3.36 | -8.00 | 1.82 | -8.00 | 14.97 | 261.78 | -21.45 | 59.45 | 0.4120 | -1174.7 | 999999 | |
| 0.00 | 8.35 | 0.00 | 4.50 | 12.58 | 261.77 | -21.46 | 64.86 | 0.3962 | -886.0 | -805.2 | |
| 1.45 | -8.00 | 0.80 | -8.00 | 16.24 | 261.30 | -21.94 | 57.29 | 0.4280 | -431.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 11.16 | 261.59 | -21.65 | 68.42 | 0.3909 | -734.0 | -609.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 12.36 | 261.42 | -21.81 | 65.70 | 0.3999 | -737.0 | -595.1 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 12.51 | 261.31 | -21.93 | 65.45 | 0.4025 | -775.0 | -622.5 | |
| 2.72 | 4.36 | 1.49 | 2.38 | 14.32 | 260.52 | -22.71 | 62.12 | 0.4250 | -969.7 | -732.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 12.59 | 260.63 | -22.61 | 65.86 | 0.4129 | -780.0 | -526.3 | |
| 0.00 | 2.72 | 0.00 | 1.49 | 14.60 | 260.22 | -23.02 | 61.82 | 0.4310 | -752.0 | -637.5 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 12.03 | 260.41 | -22.83 | 67.32 | 0.4130 | -700.0 | -579.6 | |
| 0.00 | 0.54 | 0.00 | 0.30 | 16.84 | 259.88 | -23.35 | 57.57 | 0.4513 | 351.0 | 424.0 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 16.40 | 259.63 | -23.61 | 58.70 | 0.4515 | 703.0 | 519.6 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 16.24 | 259.61 | -23.62 | 59.03 | 0.4506 | 714.0 | 599.1 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 16.77 | 259.47 | -23.76 | 58.12 | 0.4562 | 781.0 | 690.2 | |
| 0.00 | 2.63 | 0.00 | 1.45 | 15.18 | 259.60 | -23.63 | 61.18 | 0.4434 | -471.0 | -448.3 | |
| 0.00 | 2.18 | 0.00 | 1.21 | 16.83 | 259.26 | -23.98 | 58.21 | 0.4595 | 896.0 | 680.7 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 15.45 | 259.40 | -23.84 | 60.81 | 0.4481 | -595.0 | -417.2 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 12.94 | 259.57 | -23.66 | 65.95 | 0.4301 | -414.0 | -400.8 | |
| 0.00 | 3.09 | 0.00 | 1.71 | 15.48 | 259.01 | -24.22 | 61.11 | 0.4535 | 82.0 | 167.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 15.91 | 258.75 | -24.49 | 60.49 | 0.4599 | 898.0 | 624.8 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 15.35 | 258.79 | -24.45 | 61.57 | 0.4557 | 541.0 | 447.6 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 15.97 | 258.50 | -24.74 | 60.60 | 0.4637 | 797.0 | 732.3 | |
| 0.73 | 13.16 | 0.40 | 7.34 | 14.90 | 258.46 | -24.78 | 62.75 | 0.4574 | 762.6 | 686.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 15.34 | 258.34 | -24.90 | 61.98 | 0.4618 | 724.0 | 579.1 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 10.98 | 258.77 | -24.47 | 70.87 | 0.4322 | -754.0 | -613.5 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 15.27 | 258.20 | -25.03 | 62.22 | 0.4632 | 920.0 | 710.8 | |
| 0.00 | 5.45 | 0.00 | 3.06 | 16.55 | 258.00 | -25.24 | 59.91 | 0.4743 | 751.0 | 689.8 | |
| 15.16 | 27.51 | 8.42 | 15.28 | 13.53 | 258.24 | -25.00 | 65.73 | 0.4525 | -1046.5 | -462.1 | |
| 3.90 | -31.00 | 2.18 | -31.00 | 14.93 | 258.07 | -25.16 | 63.02 | 0.4629 | 935.6 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.17 | 15.29 | 257.64 | -25.59 | 62.65 | 0.4711 | 993.0 | 849.9 | |
| 0.82 | 3.09 | 0.46 | 1.74 | 15.85 | 257.46 | -25.77 | 61.71 | 0.4769 | 1050.6 | 785.4 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 15.51 | 257.47 | -25.76 | 62.36 | 0.4747 | 927.0 | 753.3 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 15.75 | 257.26 | -25.97 | 62.06 | 0.4790 | 1021.0 | 880.4 | |
| 0.91 | 2.54 | 0.51 | 1.43 | 15.56 | 257.18 | -26.05 | 62.49 | 0.4790 | 1017.9 | 896.8 | |
| 0.00 | 3.18 | 0.00 | 1.80 | 16.44 | 257.06 | -26.17 | 60.92 | 0.4860 | 649.0 | 441.6 | |
| 0.00 | 2.36 | 0.00 | 1.33 | 15.81 | 257.04 | -26.19 | 62.12 | 0.4824 | 807.0 | 752.7 | |
| 3.90 | 21.79 | 2.21 | 12.36 | 16.12 | 256.82 | -26.41 | 61.72 | 0.4872 | 1012.6 | 709.2 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 16.46 | 256.77 | -26.46 | 61.11 | 0.4900 | 645.0 | 422.5 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 15.49 | 256.88 | -26.36 | 62.86 | 0.4827 | 821.0 | 612.8 | |
| 2.81 | -45.00 | 1.60 | -45.00 | 15.86 | 256.61 | -26.62 | 62.36 | 0.4885 | 901.5 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.42 | 18.38 | 255.10 | -28.14 | 59.01 | 0.5241 | -699.0 | -523.4 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 14.49 | 255.34 | -27.89 | 65.87 | 0.4982 | 852.0 | 698.8 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 14.37 | 254.43 | -28.81 | 66.67 | 0.5103 | -815.0 | -684.8 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 12.21 | 254.60 | -28.63 | 70.70 | 0.4983 | 770.0 | 612.7 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 14.82 | 252.47 | -30.76 | 67.00 | 0.5392 | 696.0 | 613.3 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 14.35 | 252.36 | -30.87 | 67.90 | 0.5386 | 642.0 | 542.1 | |
| 0.00 | 1.63 | 0.00 | 0.99 | 19.29 | 251.19 | -32.05 | 60.27 | 0.5789 | 631.0 | 425.3 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 12.10 | 251.69 | -31.54 | 72.27 | 0.5391 | 700.0 | 576.9 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 11.05 | 251.82 | -31.41 | 74.12 | 0.5339 | 816.0 | 629.5 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 13.42 | 251.32 | -31.91 | 70.07 | 0.5490 | 579.0 | 515.8 | |
| 0.00 | 2.54 | 0.00 | 1.49 | 10.53 | 251.63 | -31.61 | 75.17 | 0.5351 | 776.0 | 764.0 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 10.65 | 251.50 | -31.73 | 74.99 | 0.5372 | 373.0 | 483.0 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 13.98 | 249.97 | -33.27 | 69.73 | 0.5696 | 790.0 | 641.3 | |
| 0.00 | 3.81 | 0.00 | 2.36 | 18.60 | 249.03 | -34.20 | 62.67 | 0.6019 | 639.0 | 485.6 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 16.68 | 249.44 | -33.79 | 65.49 | 0.5877 | 701.0 | 547.4 | |
| 0.00 | 2.00 | 0.00 | 1.21 | 14.25 | 249.77 | -33.46 | 69.35 | 0.5733 | 583.0 | 432.0 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 16.96 | 248.30 | -34.93 | 65.62 | 0.6036 | 680.0 | 537.7 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 16.99 | 248.02 | -35.21 | 65.72 | 0.6072 | 457.0 | 383.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
