SDO HMI 2014-07-03 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 170.26 | 786.90 | 198.33 | 917.81 | -7.70 | 218.95 | -64.28 | 100.04 | 0.9071 | 240.9 | -27.4 | |
|
previous
or next observation for the same group /

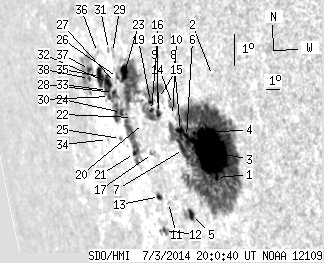

back to the solar disc SDO HMI 2014-07-03 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.73 | 506.26 | 1.85 | 547.03 | -9.09 | 221.80 | -61.44 | 101.96 | 0.8884 | 581.3 | 205.4 | |
| 0.00 | 0.73 | 0.00 | 0.75 | -5.91 | 222.32 | -60.92 | 98.46 | 0.8808 | 166.0 | 125.2 | |
| 97.15 | -1.00 | 104.28 | -1.00 | -8.29 | 221.64 | -61.60 | 101.04 | 0.8887 | 825.4 | 999999 | |
| 1.63 | -1.00 | 1.80 | -1.00 | -7.78 | 220.71 | -62.52 | 100.33 | 0.8953 | 140.4 | 999999 | |
| 4.18 | 9.81 | 4.84 | 11.43 | -10.35 | 219.69 | -63.55 | 103.01 | 0.9057 | 314.8 | -184.8 | |
| 2.18 | -1.00 | 2.45 | -1.00 | -7.90 | 220.14 | -63.10 | 100.38 | 0.8998 | 288.0 | 999999 | |
| 9.35 | -1.00 | 10.67 | -1.00 | -8.32 | 219.81 | -63.43 | 100.80 | 0.9027 | -613.1 | 999999 | |
| 4.18 | -1.00 | 4.77 | -1.00 | -7.73 | 219.77 | -63.47 | 100.15 | 0.9024 | 197.7 | 999999 | |
| 0.00 | 7.72 | 0.00 | 8.88 | -6.95 | 219.42 | -63.82 | 99.23 | 0.9043 | 77.0 | 155.7 | |
| 0.00 | 0.27 | 0.00 | 0.31 | -7.29 | 219.33 | -63.91 | 99.60 | 0.9052 | 242.0 | 247.3 | |
| 0.00 | 1.18 | 0.00 | 1.45 | -10.05 | 218.14 | -65.10 | 102.44 | 0.9163 | -511.0 | -457.7 | |
| 1.00 | 4.90 | 1.26 | 6.23 | -10.96 | 217.46 | -65.78 | 103.32 | 0.9217 | -518.9 | -477.2 | |
| 2.18 | 4.09 | 2.73 | 5.13 | -9.90 | 217.52 | -65.71 | 102.18 | 0.9203 | -508.2 | -493.0 | |
| 2.91 | 205.37 | 3.49 | 268.41 | -7.28 | 218.33 | -64.91 | 99.45 | 0.9124 | 297.2 | -487.0 | |
| 0.00 | 0.36 | 0.00 | 0.43 | -6.81 | 218.45 | -64.78 | 98.96 | 0.9111 | 211.0 | 258.2 | |
| 0.27 | -14.00 | 0.33 | -14.00 | -7.09 | 218.30 | -64.93 | 99.25 | 0.9124 | 402.0 | 999999 | |
| 0.00 | 2.91 | 0.00 | 3.62 | -8.56 | 217.48 | -65.75 | 100.73 | 0.9194 | -510.0 | -480.4 | |
| 1.73 | -14.00 | 2.11 | -14.00 | -7.21 | 217.83 | -65.41 | 99.32 | 0.9159 | 37.8 | 999999 | |
| 1.73 | -14.00 | 2.11 | -14.00 | -6.93 | 217.83 | -65.41 | 99.02 | 0.9156 | 214.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.37 | -7.65 | 217.09 | -66.14 | 99.70 | 0.9212 | -349.0 | -385.0 | |
| 1.54 | -14.00 | 2.04 | -14.00 | -8.63 | 216.05 | -67.19 | 100.62 | 0.9288 | -468.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.54 | -7.51 | 216.28 | -66.96 | 99.44 | 0.9265 | -599.0 | -544.1 | |
| 9.35 | -14.00 | 12.24 | -14.00 | -6.13 | 216.04 | -67.20 | 97.93 | 0.9270 | -765.8 | 999999 | |
| 2.09 | -14.00 | 2.82 | -14.00 | -7.40 | 215.42 | -67.81 | 99.22 | 0.9318 | -820.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.75 | -8.22 | 215.05 | -68.18 | 100.06 | 0.9347 | -505.0 | -421.3 | |
| 0.73 | -14.00 | 0.98 | -14.00 | -6.31 | 215.42 | -67.82 | 98.06 | 0.9311 | -523.5 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.37 | -6.48 | 215.21 | -68.03 | 98.22 | 0.9326 | -636.0 | -544.7 | |
| 1.27 | -14.00 | 1.75 | -14.00 | -6.80 | 214.94 | -68.29 | 98.53 | 0.9344 | -751.4 | 999999 | |
| 0.00 | 3.81 | 0.00 | 5.15 | -5.55 | 215.21 | -68.03 | 97.23 | 0.9320 | -537.0 | -420.6 | |
| 1.82 | -14.00 | 2.55 | -14.00 | -6.94 | 214.56 | -68.68 | 98.64 | 0.9368 | -549.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 2.12 | -5.48 | 214.89 | -68.34 | 97.11 | 0.9339 | -313.0 | -274.6 | |
| 8.26 | -14.00 | 11.56 | -14.00 | -6.51 | 214.52 | -68.71 | 98.18 | 0.9368 | -621.0 | 999999 | |
| 2.45 | -14.00 | 3.45 | -14.00 | -6.77 | 214.45 | -68.79 | 98.44 | 0.9374 | -538.4 | 999999 | |
| 0.00 | 0.73 | 0.00 | 1.06 | -8.31 | 213.90 | -69.34 | 100.01 | 0.9416 | -173.0 | -167.0 | |
| 9.17 | -14.00 | 13.19 | -14.00 | -6.36 | 213.96 | -69.27 | 97.95 | 0.9400 | -245.9 | 999999 | |
| 0.00 | 0.82 | 0.00 | 1.17 | -5.62 | 213.91 | -69.33 | 97.17 | 0.9399 | -119.0 | -127.4 | |
| 2.09 | 32.59 | 3.14 | 49.61 | -6.19 | 213.03 | -70.21 | 97.68 | 0.9453 | -235.0 | 153.4 | |
| 1.27 | -37.00 | 1.92 | -37.00 | -6.47 | 212.94 | -70.30 | 97.97 | 0.9460 | -133.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
