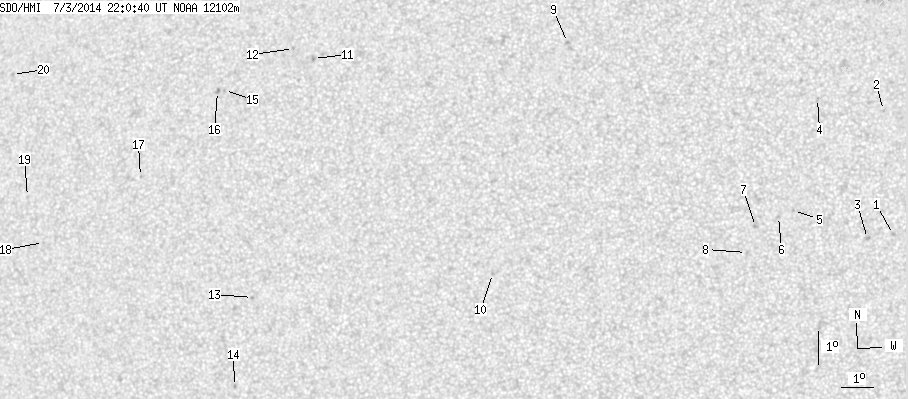

SDO HMI 2014-07-03 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 27.24 | 0.00 | 14.27 | 5.46 | 266.07 | -16.06 | 78.98 | 0.2805 | 237.6 | 196.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.77 | 3.62 | 279.65 | -2.47 | 79.26 | 0.0440 | -876.0 | -684.9 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 7.41 | 279.34 | -2.79 | 33.09 | 0.0888 | -869.0 | -650.6 | |
| 0.00 | 2.09 | 0.00 | 1.04 | 3.50 | 278.86 | -3.27 | 83.93 | 0.0575 | -1068.0 | -879.1 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 7.77 | 277.30 | -4.83 | 45.99 | 0.1164 | 766.0 | 549.0 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 4.35 | 276.59 | -5.54 | 77.69 | 0.0989 | -824.0 | -598.7 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 4.16 | 276.13 | -6.00 | 80.30 | 0.1062 | -787.0 | -564.0 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 3.86 | 275.43 | -6.70 | 83.87 | 0.1176 | -802.0 | -667.5 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 3.06 | 275.15 | -6.97 | 90.62 | 0.1218 | -675.0 | -591.8 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 9.43 | 269.46 | -12.66 | 62.94 | 0.2439 | 1037.0 | 784.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 2.35 | 267.26 | -14.86 | 92.75 | 0.2577 | 744.0 | 539.2 | |
| 0.00 | 2.45 | 0.00 | 1.31 | 8.82 | 261.30 | -20.83 | 73.79 | 0.3675 | 1049.0 | 797.9 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 9.11 | 260.62 | -21.51 | 73.47 | 0.3793 | 865.0 | 661.3 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 1.49 | 259.54 | -22.59 | 93.71 | 0.3864 | 831.0 | 690.5 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -1.24 | 258.94 | -23.19 | 100.40 | 0.4019 | 832.0 | 601.9 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 7.78 | 258.39 | -23.73 | 77.94 | 0.4095 | 798.0 | 699.8 | |
| 0.00 | 2.18 | 0.00 | 1.18 | 7.75 | 258.16 | -23.97 | 78.12 | 0.4130 | 853.0 | 734.5 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 5.09 | 255.68 | -26.44 | 84.91 | 0.4471 | 835.0 | 635.2 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 3.00 | 252.39 | -29.73 | 89.48 | 0.4972 | 673.0 | 548.5 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 4.39 | 251.78 | -30.35 | 86.71 | 0.5066 | 657.0 | 523.4 | |
| 0.00 | 1.63 | 0.00 | 0.95 | 8.09 | 251.01 | -31.12 | 79.61 | 0.5222 | 714.0 | 493.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
