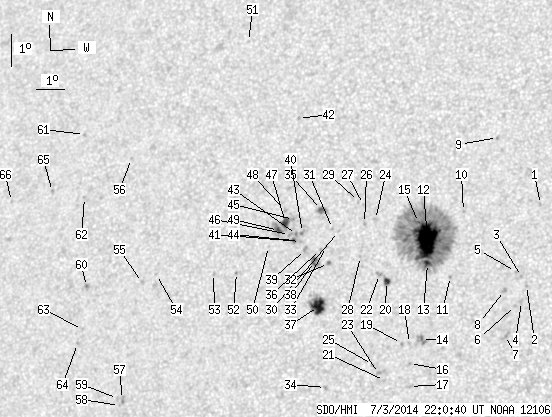

SDO HMI 2014-07-03 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.37 | 434.66 | 41.11 | 237.28 | 15.29 | 260.44 | -21.68 | 58.78 | 0.4179 | -323.9 | -225.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.68 | 16.84 | 265.42 | -16.71 | 49.06 | 0.3659 | -823.0 | -610.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 14.31 | 265.17 | -16.96 | 55.31 | 0.3453 | -906.0 | -646.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 14.58 | 264.98 | -17.15 | 54.91 | 0.3502 | -898.0 | -752.2 | |
| 0.00 | 2.36 | 0.00 | 1.24 | 13.81 | 265.04 | -17.09 | 56.74 | 0.3427 | -917.0 | -748.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 14.74 | 264.77 | -17.36 | 54.86 | 0.3543 | -696.0 | -653.9 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 13.68 | 264.85 | -17.27 | 57.33 | 0.3442 | -830.0 | -632.2 | |
| 0.00 | 4.27 | 0.00 | 2.25 | 12.75 | 264.59 | -17.54 | 60.09 | 0.3405 | -865.0 | -695.2 | |
| 0.00 | 2.36 | 0.00 | 1.25 | 14.14 | 264.45 | -17.67 | 56.75 | 0.3535 | -994.0 | -784.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 18.93 | 263.76 | -18.36 | 47.36 | 0.4068 | -731.0 | -608.5 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 16.58 | 262.87 | -19.26 | 53.37 | 0.3956 | 766.0 | 559.5 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 14.55 | 262.63 | -19.50 | 58.18 | 0.3819 | -803.0 | -649.8 | |
| 43.22 | 287.38 | 23.38 | 155.59 | 15.69 | 261.74 | -20.38 | 56.71 | 0.4028 | -1426.5 | -383.6 | |
| 3.09 | -12.00 | 1.66 | -12.00 | 14.94 | 261.82 | -20.31 | 58.26 | 0.3960 | -1186.0 | 999999 | |
| 0.00 | 6.63 | 0.00 | 3.55 | 12.58 | 261.83 | -20.30 | 63.74 | 0.3791 | -1076.0 | -825.4 | |
| 0.27 | -12.00 | 0.15 | -12.00 | 16.21 | 261.38 | -20.74 | 56.02 | 0.4119 | -644.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 11.83 | 261.49 | -20.64 | 65.91 | 0.3795 | -884.0 | -663.6 | |
| 0.00 | 2.72 | 0.00 | 1.45 | 11.13 | 261.54 | -20.58 | 67.62 | 0.3747 | -757.0 | -530.7 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 12.45 | 261.44 | -20.69 | 64.45 | 0.3840 | -713.0 | -579.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 12.44 | 261.17 | -20.95 | 64.72 | 0.3878 | -683.0 | -608.9 | |
| 3.00 | 5.54 | 1.63 | 3.01 | 14.35 | 260.49 | -21.63 | 61.01 | 0.4100 | -968.1 | -679.3 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 11.29 | 260.70 | -21.43 | 67.93 | 0.3882 | -683.0 | -488.4 | |
| 0.00 | 2.45 | 0.00 | 1.33 | 14.57 | 260.23 | -21.89 | 60.81 | 0.4151 | -924.0 | -637.0 | |
| 0.00 | 2.09 | 0.00 | 1.12 | 11.51 | 260.48 | -21.65 | 67.60 | 0.3926 | -744.0 | -567.5 | |
| 0.00 | 2.00 | 0.00 | 1.10 | 16.28 | 259.91 | -22.22 | 57.54 | 0.4320 | 819.0 | 624.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 11.78 | 260.26 | -21.87 | 67.14 | 0.3974 | -657.0 | -505.3 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 16.15 | 259.55 | -22.58 | 58.19 | 0.4358 | 845.0 | 607.2 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 16.74 | 259.44 | -22.69 | 57.11 | 0.4417 | 783.0 | 652.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 15.11 | 259.53 | -22.60 | 60.35 | 0.4287 | -605.0 | -463.6 | |
| 0.00 | 0.64 | 0.00 | 0.35 | 16.83 | 259.25 | -22.87 | 57.12 | 0.4448 | 698.0 | 573.4 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 15.88 | 258.68 | -23.44 | 59.60 | 0.4455 | 671.0 | 481.2 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 15.97 | 258.46 | -23.66 | 59.63 | 0.4491 | 950.0 | 691.3 | |
| 0.00 | 2.00 | 0.00 | 1.10 | 14.87 | 258.46 | -23.67 | 61.86 | 0.4418 | 486.0 | 553.1 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 15.40 | 258.32 | -23.80 | 60.90 | 0.4471 | 733.0 | 555.3 | |
| 0.00 | 2.18 | 0.00 | 1.19 | 11.04 | 258.73 | -23.39 | 70.04 | 0.4163 | -724.0 | -580.6 | |
| 2.09 | 5.27 | 1.16 | 2.93 | 16.55 | 258.01 | -24.12 | 58.91 | 0.4593 | 760.5 | 603.8 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 15.30 | 258.13 | -24.00 | 61.28 | 0.4492 | 809.0 | 696.4 | |
| 13.26 | 19.70 | 7.29 | 10.84 | 13.53 | 258.26 | -23.87 | 64.85 | 0.4363 | -1052.6 | -703.1 | |
| 2.72 | 7.08 | 1.51 | 3.92 | 14.93 | 257.97 | -24.16 | 62.19 | 0.4489 | 1036.8 | 774.9 | |
| 0.00 | 2.81 | 0.00 | 1.57 | 15.29 | 257.61 | -24.52 | 61.76 | 0.4562 | 984.0 | 791.5 | |
| 0.00 | 2.54 | 0.00 | 1.42 | 15.82 | 257.44 | -24.69 | 60.86 | 0.4620 | 1169.0 | 962.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 15.54 | 257.40 | -24.72 | 61.45 | 0.4606 | 937.0 | 717.0 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 19.40 | 256.77 | -25.36 | 54.82 | 0.4962 | -725.0 | -550.3 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 15.75 | 257.24 | -24.89 | 61.17 | 0.4642 | 954.0 | 881.4 | |
| 0.82 | 1.91 | 0.46 | 1.07 | 15.57 | 257.16 | -24.97 | 61.61 | 0.4641 | 1017.8 | 810.1 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 16.22 | 257.07 | -25.06 | 60.40 | 0.4695 | 879.0 | 779.1 | |
| 0.00 | 2.00 | 0.00 | 1.12 | 15.75 | 256.99 | -25.13 | 61.39 | 0.4675 | 912.0 | 760.7 | |
| 4.90 | 17.89 | 2.75 | 10.05 | 16.12 | 256.80 | -25.32 | 60.83 | 0.4725 | 999.4 | 685.3 | |
| 0.00 | 1.82 | 0.00 | 1.02 | 16.50 | 256.75 | -25.37 | 60.15 | 0.4756 | 641.0 | 491.5 | |
| 2.00 | -47.00 | 1.12 | -47.00 | 15.87 | 256.59 | -25.53 | 61.50 | 0.4737 | 908.0 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.15 | 15.36 | 256.31 | -25.82 | 62.72 | 0.4744 | 653.0 | 596.3 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 21.82 | 254.50 | -27.63 | 52.89 | 0.5420 | -635.0 | -411.7 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 14.53 | 255.29 | -26.84 | 65.10 | 0.4837 | 609.0 | 531.6 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 14.48 | 254.48 | -27.64 | 65.76 | 0.4947 | -761.0 | -553.2 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 14.39 | 252.45 | -29.68 | 67.18 | 0.5224 | 650.0 | 595.7 | |
| 0.00 | 2.09 | 0.00 | 1.22 | 14.13 | 251.98 | -30.15 | 67.92 | 0.5277 | 671.0 | 480.8 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 17.99 | 250.91 | -31.21 | 61.86 | 0.5611 | 646.0 | 471.7 | |
| 0.00 | 2.54 | 0.00 | 1.47 | 10.51 | 251.71 | -30.42 | 74.79 | 0.5179 | 973.0 | 795.8 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 10.32 | 251.62 | -30.50 | 75.18 | 0.5186 | 697.0 | 565.9 | |
| 0.00 | 1.82 | 0.00 | 1.05 | 10.53 | 251.53 | -30.60 | 74.81 | 0.5206 | 630.0 | 582.3 | |
| 0.00 | 2.36 | 0.00 | 1.40 | 13.95 | 249.94 | -32.18 | 69.28 | 0.5548 | 878.0 | 607.3 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 18.70 | 248.98 | -33.15 | 61.91 | 0.5893 | 672.0 | 534.7 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 16.72 | 249.39 | -32.74 | 64.88 | 0.5742 | 796.0 | 686.9 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 12.62 | 249.99 | -32.13 | 71.60 | 0.5491 | 673.0 | 510.2 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 12.18 | 249.87 | -32.26 | 72.43 | 0.5494 | 707.0 | 485.1 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 16.87 | 248.13 | -33.99 | 65.30 | 0.5911 | 649.0 | 530.9 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 16.52 | 246.62 | -35.51 | 66.61 | 0.6089 | 603.0 | 408.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
