SDO HMI 2014-07-03 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 134.29 | 761.18 | 79.21 | 451.11 | -19.33 | 257.47 | -24.65 | 133.97 | 0.5488 | 608.1 | 309.5 | |
|
previous
or next observation for the same group /

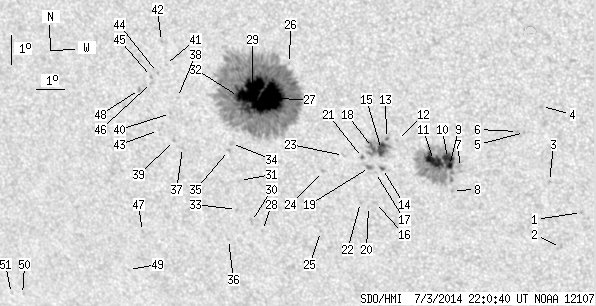

back to the solar disc SDO HMI 2014-07-03 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.67 | -22.48 | 266.97 | -15.15 | 150.74 | 0.4960 | 841.0 | 633.6 | |
| 0.00 | 2.81 | 0.00 | 1.63 | -23.69 | 266.11 | -16.02 | 150.66 | 0.5178 | 632.0 | 457.4 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -21.45 | 266.00 | -16.13 | 148.05 | 0.4904 | 729.0 | 580.4 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -18.96 | 266.00 | -16.13 | 144.96 | 0.4593 | 788.0 | 623.9 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -19.83 | 265.33 | -16.79 | 145.02 | 0.4759 | 810.0 | 673.2 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -19.80 | 265.10 | -17.03 | 144.61 | 0.4776 | 844.0 | 677.2 | |
| 0.00 | 5.99 | 0.00 | 3.45 | -21.04 | 262.96 | -19.16 | 143.03 | 0.5114 | 321.0 | 281.9 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -21.81 | 262.61 | -19.51 | 143.51 | 0.5235 | 543.0 | 477.9 | |
| 4.54 | 114.86 | 2.62 | 66.44 | -20.97 | 262.62 | -19.50 | 142.48 | 0.5138 | 1060.9 | 260.1 | |
| 8.17 | -9.00 | 4.70 | -9.00 | -20.74 | 262.59 | -19.54 | 142.13 | 0.5115 | 1137.2 | 999999 | |
| 15.98 | -9.00 | 9.24 | -9.00 | -20.82 | 262.09 | -20.03 | 141.55 | 0.5170 | 993.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -20.17 | 260.93 | -21.19 | 139.16 | 0.5210 | -264.0 | -253.8 | |
| 0.36 | 28.87 | 0.21 | 16.85 | -20.12 | 260.56 | -21.57 | 138.60 | 0.5240 | -1015.0 | -741.1 | |
| 0.82 | 1.91 | 0.48 | 1.12 | -21.12 | 260.26 | -21.86 | 139.55 | 0.5375 | -691.4 | -569.1 | |
| 7.90 | -13.00 | 4.61 | -13.00 | -20.49 | 260.33 | -21.80 | 138.80 | 0.5302 | -1054.9 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.29 | -22.27 | 259.83 | -22.30 | 140.48 | 0.5539 | -817.0 | -535.4 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -21.26 | 259.99 | -22.13 | 139.40 | 0.5416 | -669.0 | -545.3 | |
| 3.09 | -13.00 | 1.80 | -13.00 | -20.43 | 260.02 | -22.11 | 138.34 | 0.5326 | -914.7 | 999999 | |
| 0.00 | 3.81 | 0.00 | 2.24 | -21.10 | 259.81 | -22.32 | 138.96 | 0.5417 | -936.0 | -713.6 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -22.41 | 259.55 | -22.57 | 140.32 | 0.5579 | -611.0 | -531.8 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -20.77 | 259.61 | -22.51 | 138.29 | 0.5401 | -791.0 | -658.8 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -22.28 | 259.29 | -22.84 | 139.84 | 0.5590 | -436.0 | -328.2 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -20.71 | 258.95 | -23.18 | 137.42 | 0.5461 | -602.0 | -505.0 | |
| 0.00 | 2.00 | 0.00 | 1.19 | -21.27 | 258.14 | -23.98 | 137.20 | 0.5597 | 737.0 | 508.6 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -23.30 | 257.65 | -24.47 | 139.22 | 0.5846 | -629.0 | -422.8 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -17.72 | 257.51 | -24.62 | 131.54 | 0.5322 | 222.0 | 205.2 | |
| 52.21 | 556.51 | 31.00 | 331.23 | -18.88 | 256.58 | -25.54 | 132.22 | 0.5530 | 1462.2 | 419.5 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -23.32 | 255.51 | -26.61 | 136.96 | 0.6049 | -559.0 | -489.7 | |
| 37.50 | -27.00 | 22.32 | -27.00 | -18.63 | 256.05 | -26.08 | 131.30 | 0.5565 | 1258.6 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.52 | -23.02 | 255.17 | -26.96 | 136.24 | 0.6054 | -751.0 | -600.6 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -21.64 | 255.02 | -27.11 | 134.34 | 0.5944 | -540.0 | -422.9 | |
| 3.72 | -27.00 | 2.23 | -27.00 | -18.84 | 255.51 | -26.61 | 131.04 | 0.5643 | 897.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -22.63 | 254.70 | -27.43 | 135.28 | 0.6064 | -631.0 | -539.8 | |
| 0.00 | 2.00 | 0.00 | 1.22 | -20.41 | 254.97 | -27.16 | 132.66 | 0.5838 | 758.0 | 486.4 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -20.65 | 254.81 | -27.31 | 132.82 | 0.5876 | 539.0 | 440.9 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -23.66 | 254.16 | -27.96 | 136.04 | 0.6209 | -704.0 | -571.3 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -20.59 | 253.12 | -29.00 | 131.13 | 0.6047 | -672.0 | -565.3 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -18.93 | 253.27 | -28.85 | 129.00 | 0.5896 | 553.0 | 388.3 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -20.36 | 252.87 | -29.25 | 130.59 | 0.6055 | -811.0 | -676.9 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -19.47 | 252.91 | -29.22 | 129.41 | 0.5979 | -824.0 | -621.7 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -17.86 | 253.03 | -29.09 | 127.26 | 0.5837 | -545.0 | -450.2 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -17.11 | 253.02 | -29.11 | 126.17 | 0.5780 | -797.0 | -632.8 | |
| 0.00 | 0.64 | 0.00 | 0.40 | -20.05 | 252.34 | -29.78 | 129.69 | 0.6086 | -621.0 | -557.1 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -18.13 | 252.69 | -29.44 | 127.34 | 0.5897 | -725.0 | -572.3 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -18.27 | 252.44 | -29.69 | 127.32 | 0.5935 | -651.0 | -594.0 | |
| 0.00 | 1.82 | 0.00 | 1.12 | -18.47 | 252.40 | -29.72 | 127.56 | 0.5955 | -546.0 | -504.3 | |
| 0.00 | 1.36 | 0.00 | 0.89 | -23.48 | 250.92 | -31.21 | 132.86 | 0.6507 | -618.0 | -488.1 | |
| 0.00 | 2.00 | 0.00 | 1.24 | -18.71 | 251.91 | -30.22 | 127.47 | 0.6028 | -728.0 | -605.1 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -24.81 | 249.99 | -32.13 | 133.70 | 0.6700 | -554.0 | -434.6 | |
| 0.00 | 0.45 | 0.00 | 0.32 | -25.82 | 245.31 | -36.81 | 131.35 | 0.7207 | -490.0 | -524.8 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -25.80 | 244.85 | -37.27 | 131.01 | 0.7248 | -446.0 | -305.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
