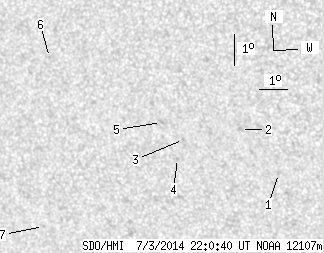

SDO HMI 2014-07-03 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.17 | 0.00 | 5.29 | -12.20 | 255.26 | -26.87 | 120.52 | 0.5144 | 500.9 | 503.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.46 | -13.38 | 258.72 | -23.41 | 125.94 | 0.4794 | 650.0 | 530.2 | |
| 0.00 | 2.36 | 0.00 | 1.33 | -12.01 | 257.56 | -24.57 | 122.27 | 0.4830 | 687.0 | 623.3 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -12.37 | 255.54 | -26.58 | 120.95 | 0.5117 | 674.0 | 517.9 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -12.98 | 255.26 | -26.86 | 121.73 | 0.5197 | 558.0 | 506.3 | |
| 0.00 | 2.45 | 0.00 | 1.42 | -11.86 | 254.83 | -27.29 | 119.42 | 0.5172 | 778.0 | 585.7 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -9.92 | 251.06 | -31.07 | 113.25 | 0.5554 | 793.0 | 584.6 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -15.29 | 250.08 | -32.04 | 121.08 | 0.5997 | -634.0 | -526.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
