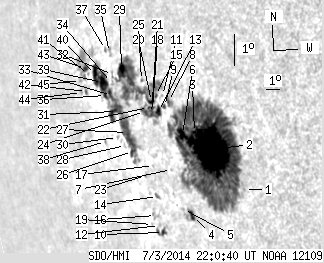

SDO HMI 2014-07-03 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 189.59 | 843.52 | 218.95 | 946.81 | -7.86 | 219.09 | -63.04 | 100.40 | 0.8982 | 100.0 | 10.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.99 | -9.42 | 223.39 | -58.73 | 102.81 | 0.8667 | 358.0 | 350.5 | |
| 89.62 | 532.35 | 92.73 | 555.45 | -8.26 | 221.68 | -60.45 | 101.20 | 0.8795 | 932.6 | 213.7 | |
| 0.64 | -2.00 | 0.68 | -2.00 | -7.78 | 220.72 | -61.41 | 100.51 | 0.8867 | 222.4 | 999999 | |
| 3.36 | 8.81 | 3.74 | 9.84 | -10.41 | 219.78 | -62.34 | 103.28 | 0.8969 | 353.9 | -97.7 | |
| 0.00 | 0.82 | 0.00 | 0.92 | -10.25 | 219.23 | -62.90 | 103.01 | 0.9009 | -299.0 | -262.3 | |
| 5.99 | -2.00 | 6.55 | -2.00 | -7.88 | 219.90 | -62.23 | 100.50 | 0.8932 | 251.4 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.31 | -9.03 | 218.82 | -63.31 | 101.60 | 0.9026 | -389.0 | -437.3 | |
| 1.09 | 5.45 | 1.21 | 6.06 | -6.90 | 219.21 | -62.92 | 99.31 | 0.8975 | 386.0 | 255.4 | |
| 0.73 | 1.54 | 0.82 | 1.74 | -7.07 | 218.89 | -63.23 | 99.45 | 0.9000 | 349.9 | 264.9 | |
| 1.63 | 6.63 | 1.98 | 8.05 | -11.06 | 217.50 | -64.63 | 103.61 | 0.9141 | -711.7 | -537.1 | |
| 0.00 | 0.91 | 0.00 | 1.02 | -6.73 | 218.84 | -63.29 | 99.07 | 0.9001 | 377.0 | 355.2 | |
| 0.00 | 2.00 | 0.00 | 2.43 | -10.85 | 217.29 | -64.84 | 103.35 | 0.9153 | -412.0 | -390.5 | |
| 4.27 | 231.08 | 4.89 | 288.38 | -7.25 | 218.43 | -63.69 | 99.58 | 0.9037 | 359.1 | -436.6 | |
| 0.00 | 2.54 | 0.00 | 3.06 | -9.93 | 217.50 | -64.62 | 102.39 | 0.9129 | -639.0 | -525.3 | |
| 0.54 | -13.00 | 0.62 | -13.00 | -6.75 | 218.35 | -63.78 | 99.03 | 0.9038 | 354.8 | 999999 | |
| 0.00 | 4.72 | 0.00 | 5.78 | -10.54 | 217.12 | -65.01 | 102.99 | 0.9162 | -450.0 | -377.4 | |
| 0.00 | 0.27 | 0.00 | 0.33 | -8.96 | 217.56 | -64.57 | 101.34 | 0.9116 | -525.0 | -523.7 | |
| 1.27 | -13.00 | 1.48 | -13.00 | -7.17 | 218.03 | -64.10 | 99.45 | 0.9065 | 96.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.34 | -10.84 | 216.77 | -65.36 | 103.26 | 0.9188 | -320.0 | -381.0 | |
| 2.27 | -13.00 | 2.64 | -13.00 | -6.96 | 218.01 | -64.11 | 99.21 | 0.9065 | 204.3 | 999999 | |
| 1.27 | -13.00 | 1.48 | -13.00 | -7.33 | 217.91 | -64.21 | 99.61 | 0.9075 | -318.8 | 999999 | |
| 0.27 | -13.00 | 0.32 | -13.00 | -7.16 | 217.75 | -64.38 | 99.40 | 0.9086 | -169.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.34 | -9.31 | 216.85 | -65.28 | 101.62 | 0.9168 | -660.0 | -602.7 | |
| 3.81 | -13.00 | 4.53 | -13.00 | -7.30 | 217.42 | -64.71 | 99.51 | 0.9110 | -488.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.40 | -6.34 | 217.45 | -64.68 | 98.46 | 0.9100 | -58.0 | -66.2 | |
| 3.09 | -13.00 | 3.89 | -13.00 | -8.60 | 216.12 | -66.01 | 100.75 | 0.9211 | -608.3 | 999999 | |
| 19.70 | -13.00 | 24.96 | -13.00 | -8.02 | 215.93 | -66.20 | 100.10 | 0.9219 | -738.2 | 999999 | |
| 0.00 | 2.18 | 0.00 | 2.80 | -8.44 | 215.63 | -66.49 | 100.51 | 0.9242 | -320.0 | -337.0 | |
| 5.54 | -13.00 | 6.91 | -13.00 | -6.04 | 216.03 | -66.09 | 97.97 | 0.9196 | -794.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.67 | -8.22 | 215.08 | -67.05 | 100.20 | 0.9276 | -493.0 | -410.4 | |
| 12.35 | -13.00 | 16.09 | -13.00 | -7.41 | 215.18 | -66.94 | 99.35 | 0.9263 | -764.4 | 999999 | |
| 0.00 | 1.91 | 0.00 | 2.46 | -6.26 | 215.28 | -66.85 | 98.12 | 0.9249 | -508.0 | -519.5 | |
| 4.00 | -13.00 | 5.23 | -13.00 | -6.92 | 215.01 | -67.11 | 98.80 | 0.9271 | -696.0 | 999999 | |
| 0.00 | 2.36 | 0.00 | 3.06 | -6.52 | 215.13 | -67.00 | 98.38 | 0.9260 | -712.0 | -618.0 | |
| 0.00 | 3.00 | 0.00 | 3.86 | -5.59 | 215.21 | -66.92 | 97.39 | 0.9248 | -566.0 | -434.8 | |
| 2.45 | -13.00 | 3.27 | -13.00 | -6.95 | 214.52 | -67.60 | 98.77 | 0.9302 | -583.1 | 999999 | |
| 0.00 | 1.63 | 0.00 | 2.14 | -5.51 | 214.91 | -67.22 | 97.27 | 0.9268 | -379.0 | -313.1 | |
| 0.00 | 1.18 | 0.00 | 1.62 | -8.40 | 214.03 | -68.10 | 100.26 | 0.9343 | -211.0 | -216.2 | |
| 13.53 | -13.00 | 18.11 | -13.00 | -6.55 | 214.39 | -67.73 | 98.34 | 0.9308 | -613.0 | 999999 | |
| 9.17 | -13.00 | 12.55 | -13.00 | -6.33 | 213.88 | -68.25 | 98.04 | 0.9338 | -247.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.92 | -6.36 | 213.27 | -68.85 | 98.01 | 0.9375 | -110.0 | -166.1 | |
| 0.64 | 1.82 | 0.91 | 2.61 | -6.91 | 212.93 | -69.20 | 98.55 | 0.9399 | 62.6 | 70.8 | |
| 2.36 | 23.06 | 3.36 | 33.11 | -6.19 | 213.06 | -69.06 | 97.80 | 0.9387 | -249.2 | 110.4 | |
| 0.00 | 1.73 | 0.00 | 2.53 | -6.96 | 212.47 | -69.66 | 98.56 | 0.9426 | 384.0 | 378.8 | |
| 0.00 | 1.09 | 0.00 | 1.59 | -6.59 | 212.50 | -69.62 | 98.17 | 0.9422 | 450.0 | 409.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
