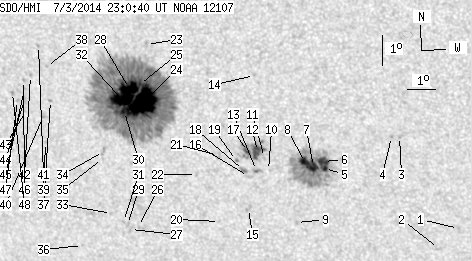

SDO HMI 2014-07-03 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 140.85 | 781.73 | 82.78 | 460.97 | -19.36 | 257.59 | -23.98 | 134.77 | 0.5422 | 658.2 | 284.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.52 | -22.91 | 266.99 | -14.58 | 152.10 | 0.4976 | 600.0 | 493.0 | |
| 0.00 | 1.91 | 0.00 | 1.10 | -23.60 | 266.22 | -15.35 | 151.60 | 0.5120 | 337.0 | 400.7 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -19.85 | 265.32 | -16.25 | 145.91 | 0.4716 | 733.0 | 642.7 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -19.86 | 265.05 | -16.52 | 145.49 | 0.4740 | 841.0 | 680.5 | |
| 4.00 | 135.66 | 2.30 | 78.17 | -20.96 | 262.63 | -18.94 | 143.25 | 0.5087 | 1073.2 | 284.2 | |
| 7.36 | -5.00 | 4.22 | -5.00 | -20.73 | 262.63 | -18.95 | 142.95 | 0.5060 | 1147.2 | 999999 | |
| 7.36 | -5.00 | 4.23 | -5.00 | -20.90 | 262.26 | -19.32 | 142.65 | 0.5114 | 1005.8 | 999999 | |
| 7.99 | -5.00 | 4.60 | -5.00 | -20.77 | 262.00 | -19.57 | 142.13 | 0.5123 | 1022.5 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -22.80 | 261.39 | -20.19 | 143.80 | 0.5408 | -768.0 | -636.5 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -21.06 | 260.67 | -20.90 | 140.72 | 0.5279 | 500.0 | 507.2 | |
| 0.00 | 0.64 | 0.00 | 0.37 | -20.63 | 260.59 | -20.98 | 140.05 | 0.5239 | -330.0 | -310.7 | |
| 8.54 | 33.05 | 4.96 | 19.22 | -20.44 | 260.38 | -21.20 | 139.52 | 0.5239 | -1045.2 | -727.6 | |
| 0.54 | 3.18 | 0.32 | 1.86 | -21.07 | 260.25 | -21.33 | 140.18 | 0.5320 | -640.5 | -392.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -17.93 | 260.61 | -20.96 | 136.33 | 0.4948 | 677.0 | 549.8 | |
| 0.00 | 3.63 | 0.00 | 2.15 | -22.36 | 259.76 | -21.81 | 141.19 | 0.5504 | -733.0 | -666.1 | |
| 0.00 | 2.72 | 0.00 | 1.60 | -21.28 | 259.93 | -21.64 | 140.05 | 0.5372 | -621.0 | -451.2 | |
| 3.00 | -12.00 | 1.74 | -12.00 | -20.44 | 260.03 | -21.55 | 139.07 | 0.5274 | -942.1 | 999999 | |
| 0.00 | 3.63 | 0.00 | 2.13 | -21.08 | 259.79 | -21.78 | 139.61 | 0.5365 | -872.0 | -675.4 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -20.75 | 259.59 | -21.98 | 138.93 | 0.5348 | -741.0 | -611.1 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -22.82 | 258.64 | -22.93 | 140.41 | 0.5656 | -588.0 | -405.5 | |
| 0.00 | 2.72 | 0.00 | 1.60 | -20.60 | 258.98 | -22.59 | 137.98 | 0.5392 | -541.0 | -555.9 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -21.25 | 258.09 | -23.48 | 137.78 | 0.5546 | 670.0 | 593.0 | |
| 0.00 | 3.00 | 0.00 | 1.74 | -17.00 | 256.99 | -24.58 | 130.51 | 0.5253 | 198.0 | 135.2 | |
| 53.12 | 551.82 | 31.39 | 326.99 | -18.90 | 256.60 | -24.97 | 132.87 | 0.5471 | 1471.5 | 408.0 | |
| 2.63 | -24.00 | 1.55 | -24.00 | -18.31 | 256.55 | -25.02 | 131.97 | 0.5422 | 1419.3 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -23.06 | 255.65 | -25.92 | 137.36 | 0.5960 | -551.0 | -507.3 | |
| 0.00 | 2.54 | 0.00 | 1.57 | -23.17 | 255.33 | -26.24 | 137.16 | 0.6001 | -754.0 | -602.8 | |
| 20.16 | -24.00 | 11.92 | -24.00 | -18.45 | 256.17 | -25.40 | 131.76 | 0.5476 | 1374.8 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.35 | -23.00 | 255.25 | -26.32 | 136.88 | 0.5992 | -829.0 | -706.1 | |
| 4.45 | -24.00 | 2.65 | -24.00 | -19.21 | 255.87 | -25.70 | 132.52 | 0.5578 | 810.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -22.90 | 255.13 | -26.45 | 136.62 | 0.5995 | -699.0 | -543.2 | |
| 21.70 | -24.00 | 12.90 | -24.00 | -18.82 | 255.86 | -25.71 | 131.96 | 0.5543 | 1096.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -22.64 | 254.74 | -26.83 | 135.90 | 0.6008 | -580.0 | -486.2 | |
| 0.00 | 3.81 | 0.00 | 2.32 | -20.56 | 254.86 | -26.71 | 133.32 | 0.5806 | 570.0 | 431.9 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -20.80 | 254.78 | -26.79 | 133.55 | 0.5836 | 272.0 | 192.1 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -23.76 | 253.40 | -28.17 | 135.97 | 0.6239 | -627.0 | -442.0 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -18.92 | 253.24 | -28.33 | 129.47 | 0.5838 | 498.0 | 390.2 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -17.80 | 253.29 | -28.28 | 127.94 | 0.5741 | -507.0 | -424.2 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -20.32 | 252.78 | -28.79 | 130.96 | 0.6003 | -849.0 | -722.7 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -19.49 | 252.83 | -28.74 | 129.88 | 0.5929 | -778.0 | -596.5 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -17.12 | 253.12 | -28.45 | 126.78 | 0.5706 | -682.0 | -649.0 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -18.11 | 252.65 | -28.92 | 127.79 | 0.5838 | -781.0 | -539.1 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -19.31 | 252.24 | -29.33 | 129.09 | 0.5978 | -484.0 | -403.0 | |
| 0.00 | 2.91 | 0.00 | 1.79 | -18.91 | 252.28 | -29.29 | 128.58 | 0.5942 | -617.0 | -603.9 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -18.55 | 252.35 | -29.22 | 128.13 | 0.5906 | -663.0 | -569.3 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -18.28 | 252.36 | -29.21 | 127.77 | 0.5884 | -703.0 | -641.1 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -18.95 | 252.01 | -29.56 | 128.39 | 0.5975 | -653.0 | -525.1 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -18.69 | 251.88 | -29.69 | 127.91 | 0.5969 | -768.0 | -632.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
