SDO HMI 2014-07-03 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.19 | 284.11 | 43.18 | 193.63 | -7.80 | 239.57 | -42.00 | 104.96 | 0.6876 | 43.6 | 88.3 | |
|
previous
or next observation for the same group /

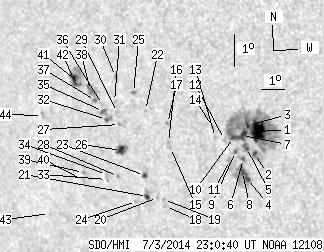

back to the solar disc SDO HMI 2014-07-03 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.98 | 145.20 | 13.10 | 95.48 | -7.57 | 242.01 | -39.57 | 105.38 | 0.6572 | 1076.9 | 383.4 | |
| 1.36 | 9.81 | 0.90 | 6.46 | -8.26 | 241.76 | -39.81 | 106.31 | 0.6624 | 849.1 | 470.9 | |
| 2.09 | -1.00 | 1.38 | -1.00 | -7.40 | 241.58 | -39.99 | 104.98 | 0.6620 | 647.2 | 999999 | |
| 2.00 | 24.61 | 1.33 | 16.43 | -9.05 | 241.38 | -40.19 | 107.32 | 0.6699 | 880.6 | 269.9 | |
| 2.45 | -1.00 | 1.62 | -1.00 | -8.08 | 241.46 | -40.11 | 105.94 | 0.6656 | 731.1 | 999999 | |
| 0.82 | 3.63 | 0.54 | 2.42 | -8.43 | 241.30 | -40.27 | 106.39 | 0.6688 | 748.6 | 581.6 | |
| 6.54 | -1.00 | 4.33 | -1.00 | -7.71 | 241.35 | -40.23 | 105.36 | 0.6660 | 606.3 | 999999 | |
| 2.81 | -4.00 | 1.88 | -4.00 | -8.84 | 241.20 | -40.37 | 106.94 | 0.6713 | 830.2 | 999999 | |
| 0.73 | 3.18 | 0.48 | 2.12 | -8.22 | 241.00 | -40.57 | 105.98 | 0.6719 | 579.0 | 439.3 | |
| 2.45 | -1.00 | 1.63 | -1.00 | -7.79 | 240.97 | -40.60 | 105.34 | 0.6709 | 273.5 | 999999 | |
| 0.00 | 3.90 | 0.00 | 2.62 | -8.51 | 240.72 | -40.85 | 106.30 | 0.6763 | -246.0 | -147.6 | |
| 0.00 | 1.45 | 0.00 | 0.97 | -7.86 | 240.60 | -40.98 | 105.32 | 0.6758 | 284.0 | 225.7 | |
| 0.00 | 1.73 | 0.00 | 1.16 | -7.82 | 240.23 | -41.34 | 105.13 | 0.6801 | 110.0 | 65.5 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -7.48 | 240.15 | -41.42 | 104.61 | 0.6802 | -770.0 | -685.1 | |
| 0.00 | 0.73 | 0.00 | 0.51 | -8.20 | 238.30 | -43.27 | 105.03 | 0.7047 | -517.0 | -615.8 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -8.05 | 238.24 | -43.33 | 104.80 | 0.7051 | -552.0 | -478.4 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -7.45 | 238.27 | -43.30 | 103.99 | 0.7031 | 456.0 | 379.0 | |
| 0.00 | 1.54 | 0.00 | 1.09 | -10.06 | 237.80 | -43.77 | 107.41 | 0.7161 | -736.0 | -582.3 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -9.84 | 237.75 | -43.82 | 107.10 | 0.7161 | -760.0 | -658.1 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -9.79 | 237.50 | -44.07 | 106.94 | 0.7188 | -633.0 | -559.8 | |
| 2.18 | 5.45 | 1.56 | 3.90 | -9.77 | 237.07 | -44.50 | 106.78 | 0.7238 | -704.8 | -590.6 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -7.09 | 237.38 | -44.19 | 103.22 | 0.7128 | -356.0 | -327.2 | |
| 1.73 | 3.81 | 1.23 | 2.72 | -9.12 | 237.05 | -44.52 | 105.89 | 0.7221 | -700.7 | -351.1 | |
| 0.00 | 2.09 | 0.00 | 1.51 | -9.95 | 236.56 | -45.01 | 106.85 | 0.7302 | 135.0 | 198.2 | |
| 0.45 | 1.36 | 0.32 | 0.97 | -6.55 | 236.93 | -44.64 | 102.35 | 0.7170 | 585.0 | 493.8 | |
| 5.72 | 9.53 | 4.14 | 6.89 | -8.37 | 236.16 | -45.41 | 104.62 | 0.7304 | -781.8 | -607.5 | |
| 0.00 | 1.36 | 0.00 | 0.98 | -7.57 | 236.19 | -45.38 | 103.54 | 0.7281 | -582.0 | -506.1 | |
| 0.00 | 1.36 | 0.00 | 0.99 | -9.19 | 235.90 | -45.68 | 105.63 | 0.7356 | 463.0 | 367.1 | |
| 0.00 | 2.54 | 0.00 | 1.83 | -7.20 | 236.15 | -45.42 | 103.03 | 0.7276 | -396.0 | -374.6 | |
| 0.54 | 1.73 | 0.39 | 1.24 | -6.08 | 236.20 | -45.37 | 101.53 | 0.7246 | 416.8 | 311.5 | |
| 0.00 | 1.27 | 0.00 | 0.92 | -6.86 | 236.06 | -45.51 | 102.55 | 0.7279 | -291.0 | -273.4 | |
| 1.18 | 9.81 | 0.86 | 7.13 | -7.43 | 235.63 | -45.94 | 103.21 | 0.7342 | -733.1 | -624.6 | |
| 0.00 | 1.54 | 0.00 | 1.14 | -9.31 | 235.34 | -46.23 | 105.62 | 0.7422 | -586.0 | -455.9 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -9.15 | 235.37 | -46.20 | 105.42 | 0.7415 | -485.0 | -372.8 | |
| 1.36 | -32.00 | 0.99 | -32.00 | -7.19 | 235.53 | -46.04 | 102.86 | 0.7348 | -843.5 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.65 | -6.97 | 235.52 | -46.06 | 102.56 | 0.7345 | -654.0 | -539.6 | |
| 0.54 | 2.00 | 0.40 | 1.46 | -6.86 | 235.22 | -46.35 | 102.34 | 0.7377 | -837.7 | -642.9 | |
| 2.27 | 8.44 | 1.66 | 6.18 | -6.56 | 235.03 | -46.54 | 101.89 | 0.7392 | -766.9 | -495.6 | |
| 0.00 | 1.36 | 0.00 | 1.02 | -9.13 | 234.33 | -47.24 | 105.09 | 0.7531 | -719.0 | -621.1 | |
| 0.00 | 2.36 | 0.00 | 1.77 | -9.38 | 234.29 | -47.29 | 105.41 | 0.7542 | -675.0 | -504.8 | |
| 0.27 | 19.52 | 0.20 | 14.45 | -6.39 | 234.61 | -46.97 | 101.56 | 0.7437 | -762.3 | -582.7 | |
| 5.72 | -41.00 | 4.24 | -41.00 | -6.25 | 234.35 | -47.22 | 101.31 | 0.7464 | -836.8 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.36 | -10.49 | 232.48 | -49.09 | 106.30 | 0.7765 | -593.0 | -495.8 | |
| 0.00 | 2.81 | 0.00 | 2.16 | -7.43 | 232.71 | -48.86 | 102.47 | 0.7671 | -584.0 | -481.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
