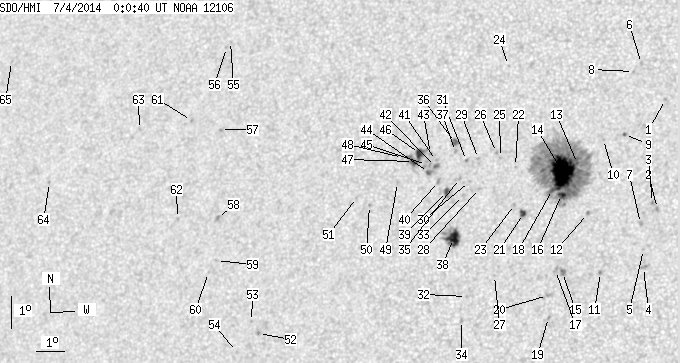

SDO HMI 2014-07-04 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.44 | 445.16 | 47.87 | 241.42 | 15.35 | 260.38 | -20.63 | 57.44 | 0.4041 | -362.0 | -199.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.73 | 18.00 | 264.94 | -16.08 | 45.60 | 0.3702 | -734.0 | -562.2 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 14.59 | 264.96 | -16.06 | 53.25 | 0.3356 | -899.0 | -783.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 14.77 | 264.78 | -16.24 | 53.08 | 0.3396 | -836.0 | -715.0 | |
| 0.00 | 2.18 | 0.00 | 1.14 | 12.75 | 264.63 | -16.39 | 58.51 | 0.3241 | -814.0 | -726.0 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 13.31 | 264.59 | -16.43 | 57.09 | 0.3292 | -800.0 | -678.7 | |
| 0.00 | 1.73 | 0.00 | 0.93 | 19.12 | 264.02 | -16.99 | 44.90 | 0.3928 | -674.0 | -457.9 | |
| 0.00 | 2.82 | 0.00 | 1.48 | 14.11 | 264.44 | -16.58 | 55.26 | 0.3383 | -861.0 | -759.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 18.87 | 263.78 | -17.24 | 45.79 | 0.3929 | -804.0 | -604.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 16.88 | 263.68 | -17.34 | 50.00 | 0.3739 | -710.0 | -511.5 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 16.71 | 262.99 | -18.03 | 51.39 | 0.3809 | 840.0 | 594.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 12.58 | 263.24 | -17.78 | 60.90 | 0.3426 | -852.0 | -678.9 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 14.40 | 262.67 | -18.35 | 57.10 | 0.3648 | -969.0 | -735.8 | |
| 0.27 | 298.68 | 0.15 | 160.58 | 15.95 | 262.19 | -18.82 | 54.18 | 0.3842 | -1004.7 | -346.3 | |
| 52.76 | -13.00 | 28.34 | -13.00 | 15.69 | 261.72 | -19.30 | 55.38 | 0.3883 | -1366.2 | 999999 | |
| 0.00 | 4.18 | 0.00 | 2.22 | 12.56 | 261.99 | -19.03 | 62.46 | 0.3605 | -1036.0 | -899.6 | |
| 3.45 | -13.00 | 1.85 | -13.00 | 14.97 | 261.75 | -19.27 | 56.95 | 0.3820 | -1167.6 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.21 | 12.61 | 261.75 | -19.27 | 62.59 | 0.3643 | -678.0 | -635.0 | |
| 1.63 | -13.00 | 0.88 | -13.00 | 15.12 | 261.44 | -19.58 | 57.00 | 0.3874 | -600.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 11.16 | 261.63 | -19.39 | 66.44 | 0.3569 | -808.0 | -734.1 | |
| 0.00 | 5.18 | 0.00 | 2.75 | 11.84 | 261.55 | -19.47 | 64.77 | 0.3622 | -1017.0 | -637.8 | |
| 2.45 | 3.90 | 1.32 | 2.10 | 14.36 | 260.54 | -20.48 | 59.79 | 0.3939 | -989.5 | -709.6 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 15.82 | 260.12 | -20.90 | 57.06 | 0.4107 | -657.0 | -511.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 14.63 | 260.21 | -20.81 | 59.54 | 0.4005 | -838.0 | -661.8 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 18.99 | 259.50 | -21.52 | 51.48 | 0.4452 | -555.0 | -385.5 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 16.09 | 259.58 | -21.44 | 57.10 | 0.4200 | 885.0 | 673.8 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 16.24 | 259.42 | -21.60 | 56.96 | 0.4233 | 778.0 | 656.3 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 12.42 | 259.74 | -21.28 | 65.12 | 0.3924 | -754.0 | -605.6 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 15.11 | 258.97 | -22.05 | 59.83 | 0.4210 | 177.0 | 159.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 16.04 | 258.83 | -22.19 | 58.01 | 0.4297 | 739.0 | 540.2 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 15.32 | 258.61 | -22.41 | 59.75 | 0.4275 | 449.0 | 370.8 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 15.97 | 258.43 | -22.59 | 58.58 | 0.4346 | 851.0 | 669.1 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 11.76 | 258.85 | -22.17 | 67.47 | 0.4016 | -667.0 | -500.9 | |
| 0.00 | 1.82 | 0.00 | 0.99 | 14.88 | 258.45 | -22.57 | 60.84 | 0.4266 | 480.0 | 442.1 | |
| 0.00 | 2.18 | 0.00 | 1.18 | 11.02 | 258.74 | -22.27 | 69.31 | 0.3994 | -811.0 | -558.2 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 15.41 | 258.25 | -22.77 | 59.92 | 0.4329 | 808.0 | 569.7 | |
| 2.09 | 4.90 | 1.15 | 2.71 | 16.53 | 257.98 | -23.04 | 57.92 | 0.4446 | 811.7 | 604.5 | |
| 0.00 | 1.73 | 0.00 | 0.95 | 16.25 | 258.02 | -23.00 | 58.44 | 0.4421 | 842.0 | 708.1 | |
| 13.17 | 24.97 | 7.18 | 13.63 | 13.54 | 258.25 | -22.77 | 63.93 | 0.4207 | -1053.0 | -467.3 | |
| 2.18 | 4.72 | 1.20 | 2.60 | 14.99 | 257.85 | -23.17 | 61.17 | 0.4355 | 1113.7 | 848.1 | |
| 0.00 | 2.45 | 0.00 | 1.35 | 15.30 | 257.54 | -23.48 | 60.83 | 0.4419 | 1041.0 | 760.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 15.95 | 257.40 | -23.62 | 59.65 | 0.4483 | 856.0 | 737.9 | |
| 0.82 | 3.00 | 0.45 | 1.66 | 15.77 | 257.38 | -23.64 | 60.03 | 0.4472 | 1080.3 | 889.6 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 16.17 | 257.16 | -23.86 | 59.44 | 0.4530 | 819.0 | 720.2 | |
| 0.82 | 2.72 | 0.45 | 1.51 | 15.57 | 257.17 | -23.85 | 60.63 | 0.4489 | 1005.7 | 880.4 | |
| 0.00 | 4.99 | 0.00 | 2.77 | 15.82 | 257.07 | -23.95 | 60.22 | 0.4519 | 699.0 | 781.0 | |
| 4.99 | 19.98 | 2.78 | 11.13 | 16.16 | 256.78 | -24.24 | 59.81 | 0.4581 | 953.5 | 703.6 | |
| 3.81 | -46.00 | 2.12 | -46.00 | 15.91 | 256.60 | -24.42 | 60.48 | 0.4587 | 888.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 16.02 | 256.20 | -24.82 | 60.60 | 0.4649 | 513.0 | 431.0 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 15.24 | 256.13 | -24.89 | 62.21 | 0.4609 | 724.0 | 494.1 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 14.50 | 255.24 | -25.78 | 64.39 | 0.4687 | 701.0 | 494.6 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 14.74 | 254.76 | -26.26 | 64.29 | 0.4768 | -641.0 | -427.1 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 10.46 | 251.79 | -29.23 | 74.43 | 0.5004 | 929.0 | 851.4 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 10.82 | 251.50 | -29.51 | 73.85 | 0.5058 | 839.0 | 666.1 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 9.89 | 251.07 | -29.95 | 75.83 | 0.5093 | 638.0 | 564.7 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 19.52 | 249.34 | -31.68 | 59.71 | 0.5754 | 552.0 | 454.1 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 19.32 | 249.23 | -31.79 | 60.09 | 0.5757 | 546.0 | 453.3 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 16.74 | 249.52 | -31.50 | 64.16 | 0.5580 | 894.0 | 720.6 | |
| 0.00 | 2.91 | 0.00 | 1.71 | 13.97 | 249.87 | -31.15 | 68.77 | 0.5406 | 857.0 | 698.7 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 12.67 | 250.02 | -31.00 | 71.04 | 0.5334 | 734.0 | 555.3 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 12.29 | 249.78 | -31.24 | 71.84 | 0.5354 | 594.0 | 490.1 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 16.99 | 248.38 | -32.64 | 64.40 | 0.5741 | 702.0 | 638.8 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 13.93 | 248.40 | -32.62 | 69.56 | 0.5606 | 682.0 | 485.3 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 16.65 | 246.46 | -34.56 | 65.96 | 0.5973 | 747.0 | 518.7 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 14.89 | 243.28 | -37.74 | 70.08 | 0.6314 | 567.0 | 502.1 | |
| 0.00 | 1.18 | 0.00 | 0.79 | 18.62 | 240.81 | -40.21 | 65.50 | 0.6746 | -71.0 | -92.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
