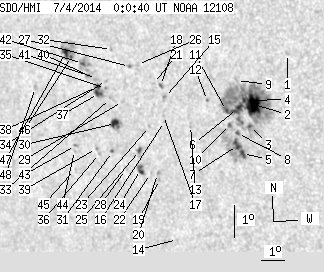

SDO HMI 2014-07-04 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.21 | 310.85 | 42.20 | 210.16 | -7.75 | 239.58 | -41.44 | 105.07 | 0.6806 | 35.9 | 78.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.21 | -5.91 | 243.50 | -37.52 | 103.60 | 0.6255 | 637.0 | 458.8 | |
| 19.80 | 155.02 | 12.87 | 101.15 | -7.54 | 242.01 | -39.01 | 105.55 | 0.6499 | 1099.9 | 408.7 | |
| 1.00 | -2.00 | 0.65 | -2.00 | -8.23 | 241.78 | -39.24 | 106.49 | 0.6552 | 864.4 | 999999 | |
| 1.45 | -2.00 | 0.95 | -2.00 | -7.43 | 241.67 | -39.35 | 105.26 | 0.6540 | 684.4 | 999999 | |
| 3.00 | 47.40 | 1.98 | 31.41 | -9.08 | 241.39 | -39.63 | 107.60 | 0.6631 | 838.8 | 143.5 | |
| 6.08 | -2.00 | 4.00 | -2.00 | -7.69 | 241.36 | -39.66 | 105.53 | 0.6587 | 611.0 | 999999 | |
| 4.45 | -5.00 | 2.94 | -5.00 | -8.84 | 241.22 | -39.80 | 107.17 | 0.6643 | 788.9 | 999999 | |
| 0.82 | -5.00 | 0.54 | -5.00 | -8.47 | 241.27 | -39.75 | 106.64 | 0.6625 | 778.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -6.82 | 241.41 | -39.61 | 104.26 | 0.6554 | 329.0 | 237.8 | |
| 0.73 | -5.00 | 0.48 | -5.00 | -8.20 | 240.98 | -40.04 | 106.14 | 0.6652 | 549.6 | 999999 | |
| 1.45 | -2.00 | 0.96 | -2.00 | -7.76 | 240.91 | -40.11 | 105.48 | 0.6647 | 254.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -7.48 | 240.17 | -40.85 | 104.82 | 0.6731 | -730.0 | -710.7 | |
| 0.00 | 1.91 | 0.00 | 1.29 | -8.28 | 239.37 | -41.65 | 105.70 | 0.6854 | -564.0 | -529.0 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -11.89 | 238.24 | -42.78 | 110.27 | 0.7109 | 441.0 | 341.6 | |
| 0.00 | 1.63 | 0.00 | 1.12 | -7.45 | 238.40 | -42.62 | 104.20 | 0.6949 | 252.0 | 180.2 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -8.20 | 238.30 | -42.72 | 105.22 | 0.6982 | -700.0 | -622.5 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -8.01 | 238.28 | -42.74 | 104.96 | 0.6978 | -477.0 | -392.9 | |
| 0.82 | 2.27 | 0.56 | 1.56 | -7.09 | 238.27 | -42.75 | 103.65 | 0.6954 | 626.0 | 436.4 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -10.03 | 237.81 | -43.21 | 107.58 | 0.7095 | -719.0 | -616.9 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -9.84 | 237.76 | -43.26 | 107.30 | 0.7096 | -772.0 | -672.5 | |
| 0.00 | 1.36 | 0.00 | 0.94 | -7.03 | 237.98 | -43.03 | 103.49 | 0.6988 | -179.0 | -157.5 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -9.85 | 237.46 | -43.56 | 107.21 | 0.7131 | -722.0 | -592.8 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -8.38 | 237.64 | -43.38 | 105.26 | 0.7066 | 442.0 | 362.9 | |
| 3.54 | 5.99 | 2.51 | 4.25 | -9.74 | 237.04 | -43.98 | 106.93 | 0.7176 | -725.2 | -489.2 | |
| 1.45 | 4.18 | 1.03 | 2.95 | -9.15 | 237.10 | -43.92 | 106.14 | 0.7152 | -766.1 | -537.4 | |
| 0.00 | 2.45 | 0.00 | 1.71 | -6.47 | 237.37 | -43.65 | 102.52 | 0.7048 | -225.0 | -123.5 | |
| 0.00 | 2.18 | 0.00 | 1.53 | -6.55 | 237.02 | -44.00 | 102.53 | 0.7092 | 687.0 | 548.4 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -9.77 | 236.39 | -44.63 | 106.74 | 0.7253 | 422.0 | 409.6 | |
| 0.00 | 1.45 | 0.00 | 1.03 | -7.65 | 236.58 | -44.43 | 103.92 | 0.7172 | -467.0 | -394.8 | |
| 5.72 | 10.17 | 4.09 | 7.28 | -8.34 | 236.18 | -44.84 | 104.76 | 0.7237 | -779.8 | -535.9 | |
| 0.45 | 1.27 | 0.33 | 0.92 | -9.23 | 235.91 | -45.11 | 105.86 | 0.7292 | 424.4 | 363.9 | |
| 0.00 | 1.45 | 0.00 | 1.03 | -6.05 | 236.30 | -44.72 | 101.66 | 0.7167 | 628.0 | 450.9 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -7.57 | 236.07 | -44.95 | 103.68 | 0.7230 | -643.0 | -589.1 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -7.02 | 235.97 | -45.05 | 102.90 | 0.7229 | -669.0 | -626.2 | |
| 0.00 | 1.36 | 0.00 | 0.98 | -7.27 | 235.90 | -45.12 | 103.22 | 0.7244 | -1013.0 | -765.7 | |
| 0.00 | 1.36 | 0.00 | 0.99 | -9.31 | 235.32 | -45.70 | 105.79 | 0.7362 | -416.0 | -393.5 | |
| 3.63 | 10.17 | 2.62 | 7.33 | -7.44 | 235.57 | -45.45 | 103.35 | 0.7286 | -758.8 | -656.7 | |
| 1.73 | -37.00 | 1.24 | -37.00 | -7.22 | 235.55 | -45.47 | 103.06 | 0.7283 | -879.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.93 | -9.16 | 235.22 | -45.80 | 105.56 | 0.7370 | -694.0 | -555.5 | |
| 0.00 | 2.18 | 0.00 | 1.57 | -7.00 | 235.53 | -45.48 | 102.76 | 0.7280 | -591.0 | -585.6 | |
| 0.64 | 16.71 | 0.46 | 12.10 | -6.89 | 235.20 | -45.82 | 102.53 | 0.7317 | -724.3 | -478.5 | |
| 1.36 | -41.00 | 0.99 | -41.00 | -6.53 | 234.98 | -46.04 | 101.98 | 0.7334 | -862.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.08 | -9.10 | 234.28 | -46.74 | 105.21 | 0.7474 | -783.0 | -622.0 | |
| 0.00 | 0.64 | 0.00 | 0.47 | -9.26 | 234.21 | -46.81 | 105.39 | 0.7486 | -561.0 | -518.4 | |
| 0.00 | 0.64 | 0.00 | 0.48 | -9.86 | 234.10 | -46.92 | 106.14 | 0.7514 | -439.0 | -449.0 | |
| 0.91 | 21.25 | 0.66 | 15.58 | -6.33 | 234.51 | -46.51 | 101.60 | 0.7384 | -740.8 | -572.1 | |
| 3.18 | -46.00 | 2.34 | -46.00 | -6.22 | 234.25 | -46.77 | 101.39 | 0.7411 | -868.3 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.38 | -7.37 | 232.73 | -48.29 | 102.53 | 0.7607 | -725.0 | -523.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
