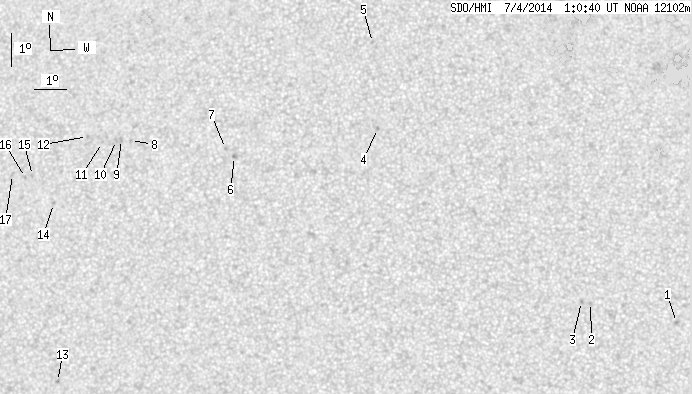

SDO HMI 2014-07-04 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.16 | 0.00 | 11.51 | 7.46 | 264.69 | -15.78 | 73.71 | 0.2828 | 519.9 | 447.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 0.90 | 3.47 | 278.88 | -1.59 | 79.76 | 0.0282 | -969.0 | -689.8 | |
| 0.00 | 0.64 | 0.00 | 0.32 | 4.07 | 276.25 | -4.22 | 77.93 | 0.0753 | -722.0 | -553.1 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 4.10 | 275.98 | -4.49 | 78.27 | 0.0801 | -867.0 | -722.8 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 9.35 | 269.57 | -10.89 | 59.85 | 0.2167 | 1066.0 | 873.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 11.99 | 269.32 | -11.15 | 50.83 | 0.2450 | 765.0 | 621.1 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 8.44 | 265.07 | -15.39 | 70.39 | 0.2800 | 1007.0 | 793.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 8.68 | 264.78 | -15.69 | 69.90 | 0.2859 | 789.0 | 608.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 8.88 | 261.70 | -18.77 | 72.19 | 0.3354 | 844.0 | 660.2 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 8.90 | 261.40 | -19.06 | 72.35 | 0.3401 | 904.0 | 729.1 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 8.87 | 261.24 | -19.23 | 72.57 | 0.3425 | 878.0 | 725.1 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 8.80 | 260.79 | -19.68 | 73.10 | 0.3493 | 598.0 | 461.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 8.98 | 260.29 | -20.18 | 72.98 | 0.3579 | 828.0 | 605.7 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 1.48 | 259.55 | -20.92 | 94.16 | 0.3594 | 871.0 | 702.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 6.91 | 259.27 | -21.19 | 79.17 | 0.3670 | 892.0 | 738.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 7.75 | 258.54 | -21.93 | 77.27 | 0.3810 | 536.0 | 548.0 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 7.68 | 258.31 | -22.16 | 77.55 | 0.3844 | 811.0 | 748.6 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 7.77 | 257.87 | -22.60 | 77.54 | 0.3916 | 607.0 | 518.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
