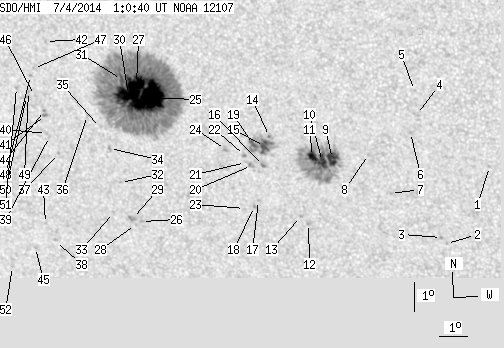

SDO HMI 2014-07-04 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 142.32 | 777.98 | 83.01 | 454.93 | -19.35 | 257.54 | -22.92 | 136.04 | 0.5314 | 587.4 | 280.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.71 | -20.98 | 267.93 | -12.53 | 153.60 | 0.4575 | 608.0 | 465.1 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -23.61 | 266.22 | -14.25 | 153.33 | 0.5046 | 755.0 | 566.5 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -23.40 | 266.07 | -14.40 | 152.90 | 0.5029 | 813.0 | 673.5 | |
| 0.00 | 2.36 | 0.00 | 1.31 | -19.29 | 265.65 | -14.82 | 147.60 | 0.4524 | 356.0 | 485.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -18.50 | 265.65 | -14.81 | 146.59 | 0.4422 | 684.0 | 498.7 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -19.88 | 265.39 | -15.08 | 147.90 | 0.4623 | 777.0 | 631.1 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -21.93 | 264.49 | -15.98 | 148.85 | 0.4956 | 789.0 | 577.5 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -20.64 | 263.89 | -16.58 | 146.39 | 0.4843 | 706.0 | 556.5 | |
| 10.99 | 131.06 | 6.27 | 75.00 | -20.79 | 262.64 | -17.82 | 144.68 | 0.4969 | 1116.5 | 291.5 | |
| 7.81 | -9.00 | 4.47 | -9.00 | -20.90 | 262.29 | -18.18 | 144.28 | 0.5013 | 1004.6 | 999999 | |
| 6.27 | -9.00 | 3.59 | -9.00 | -20.74 | 261.96 | -18.50 | 143.61 | 0.5023 | 1043.5 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.38 | -23.00 | 261.51 | -18.96 | 145.71 | 0.5328 | -791.0 | -575.6 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -22.77 | 261.27 | -19.20 | 145.10 | 0.5321 | -765.0 | -616.3 | |
| 0.00 | 2.18 | 0.00 | 1.25 | -20.10 | 260.57 | -19.90 | 140.81 | 0.5079 | -1068.0 | -817.5 | |
| 8.26 | 35.42 | 4.77 | 20.44 | -20.43 | 260.35 | -20.12 | 140.95 | 0.5137 | -1034.9 | -686.1 | |
| 0.36 | 1.09 | 0.21 | 0.63 | -21.07 | 260.22 | -20.25 | 141.61 | 0.5220 | -678.5 | -550.9 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -22.25 | 259.87 | -20.60 | 142.62 | 0.5384 | -737.0 | -640.9 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -22.46 | 259.70 | -20.77 | 142.64 | 0.5422 | -743.0 | -596.4 | |
| 3.00 | -15.00 | 1.73 | -15.00 | -20.37 | 259.97 | -20.49 | 140.37 | 0.5166 | -935.5 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.64 | -21.08 | 259.80 | -20.67 | 141.06 | 0.5260 | -825.0 | -691.8 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -20.98 | 259.61 | -20.86 | 140.68 | 0.5268 | -639.0 | -586.2 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -20.75 | 259.61 | -20.86 | 140.38 | 0.5242 | -829.0 | -663.4 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -22.53 | 259.33 | -21.14 | 142.27 | 0.5463 | -561.0 | -482.9 | |
| 0.00 | 2.82 | 0.00 | 1.64 | -20.56 | 258.97 | -21.50 | 139.31 | 0.5283 | -770.0 | -592.9 | |
| 57.04 | 555.10 | 33.42 | 326.00 | -18.89 | 256.55 | -23.91 | 134.07 | 0.5359 | 1431.7 | 408.5 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -23.06 | 255.53 | -24.94 | 138.43 | 0.5868 | -753.0 | -638.8 | |
| 19.80 | -25.00 | 11.60 | -25.00 | -18.44 | 256.16 | -24.30 | 132.98 | 0.5358 | 1385.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -23.16 | 255.29 | -25.18 | 138.30 | 0.5901 | -683.0 | -539.5 | |
| 0.00 | 3.72 | 0.00 | 2.28 | -22.96 | 255.22 | -25.25 | 137.97 | 0.5888 | -835.0 | -717.6 | |
| 23.89 | -25.00 | 14.07 | -25.00 | -18.81 | 255.82 | -24.64 | 133.12 | 0.5429 | 1090.0 | 999999 | |
| 4.90 | -25.00 | 2.88 | -25.00 | -18.32 | 255.65 | -24.82 | 132.23 | 0.5402 | 832.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -21.75 | 255.02 | -25.45 | 136.23 | 0.5790 | -733.0 | -587.2 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -22.77 | 254.56 | -25.91 | 137.04 | 0.5933 | -534.0 | -388.2 | |
| 0.00 | 2.00 | 0.00 | 1.20 | -20.62 | 254.83 | -25.63 | 134.54 | 0.5702 | 739.0 | 568.5 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -19.93 | 254.63 | -25.83 | 133.39 | 0.5659 | 503.0 | 390.0 | |
| 0.00 | 1.91 | 0.00 | 1.14 | -19.54 | 254.23 | -26.23 | 132.44 | 0.5666 | 94.0 | 129.0 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -20.83 | 252.93 | -27.54 | 132.87 | 0.5917 | -733.0 | -579.8 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -23.82 | 252.16 | -28.31 | 135.92 | 0.6258 | -435.0 | -501.8 | |
| 0.00 | 1.73 | 0.00 | 1.06 | -20.27 | 252.71 | -27.76 | 131.91 | 0.5891 | -724.0 | -596.8 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -20.18 | 252.62 | -27.85 | 131.69 | 0.5893 | -751.0 | -726.2 | |
| 0.00 | 2.09 | 0.00 | 1.27 | -19.58 | 252.70 | -27.77 | 130.95 | 0.5833 | -977.0 | -812.0 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -17.14 | 253.13 | -27.34 | 127.88 | 0.5582 | -783.0 | -666.4 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -23.21 | 251.93 | -28.54 | 134.96 | 0.6227 | -512.0 | -262.1 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -19.41 | 252.69 | -27.77 | 130.71 | 0.5820 | -846.0 | -729.8 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -24.05 | 251.34 | -29.12 | 135.43 | 0.6356 | -423.0 | -391.9 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -18.93 | 252.42 | -28.05 | 129.77 | 0.5809 | -818.0 | -689.8 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -18.04 | 252.54 | -27.92 | 128.63 | 0.5721 | -671.0 | -682.7 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -18.27 | 252.39 | -28.07 | 128.82 | 0.5757 | -709.0 | -575.6 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -18.80 | 252.22 | -28.24 | 129.41 | 0.5820 | -832.0 | -677.3 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -18.97 | 252.12 | -28.35 | 129.54 | 0.5845 | -767.0 | -700.9 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -18.68 | 251.81 | -28.66 | 128.85 | 0.5856 | -733.0 | -566.2 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -24.73 | 250.28 | -30.19 | 135.29 | 0.6514 | -342.0 | -345.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
