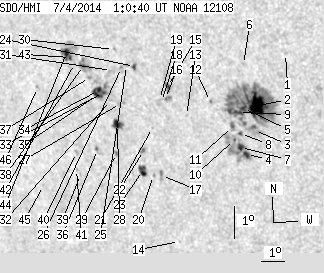

SDO HMI 2014-07-04 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.22 | 319.78 | 45.54 | 214.54 | -7.77 | 239.55 | -40.92 | 105.30 | 0.6742 | 45.2 | 100.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.52 | -5.89 | 243.29 | -37.17 | 103.70 | 0.6209 | 563.0 | 404.6 | |
| 20.71 | 151.31 | 13.36 | 97.89 | -7.54 | 242.05 | -38.42 | 105.79 | 0.6424 | 1113.3 | 409.4 | |
| 0.00 | 10.08 | 0.00 | 6.54 | -8.33 | 241.84 | -38.63 | 106.89 | 0.6478 | 629.0 | 526.4 | |
| 3.27 | 39.96 | 2.14 | 26.27 | -9.09 | 241.43 | -39.04 | 107.85 | 0.6557 | 840.1 | 147.4 | |
| 3.00 | -2.00 | 1.95 | -2.00 | -7.66 | 241.48 | -38.99 | 105.75 | 0.6501 | 681.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -6.29 | 241.62 | -38.85 | 103.73 | 0.6441 | 706.0 | 604.4 | |
| 3.27 | -4.00 | 2.14 | -4.00 | -8.88 | 241.22 | -39.25 | 107.45 | 0.6576 | 827.2 | 999999 | |
| 0.91 | -4.00 | 0.59 | -4.00 | -8.44 | 241.27 | -39.20 | 106.83 | 0.6554 | 729.7 | 999999 | |
| 3.00 | -2.00 | 1.96 | -2.00 | -7.79 | 241.27 | -39.20 | 105.86 | 0.6532 | 601.0 | 999999 | |
| 0.45 | -4.00 | 0.30 | -4.00 | -8.64 | 241.01 | -39.46 | 107.02 | 0.6594 | 471.0 | 999999 | |
| 0.64 | 4.00 | 0.42 | 2.62 | -8.23 | 240.98 | -39.49 | 106.41 | 0.6584 | 558.1 | 402.4 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -7.48 | 240.18 | -40.29 | 105.02 | 0.6661 | -718.0 | -624.7 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -7.96 | 239.15 | -41.32 | 105.35 | 0.6804 | -322.0 | -256.6 | |
| 0.00 | 0.45 | 0.00 | 0.32 | -11.93 | 238.22 | -42.25 | 110.55 | 0.7048 | 402.0 | 363.0 | |
| 2.00 | 4.18 | 1.36 | 2.84 | -7.08 | 238.47 | -42.00 | 103.88 | 0.6863 | 642.1 | 443.0 | |
| 0.36 | 3.91 | 0.25 | 2.66 | -7.46 | 238.34 | -42.13 | 104.37 | 0.6889 | 373.2 | 111.4 | |
| 0.00 | 3.91 | 0.00 | 2.71 | -9.87 | 237.83 | -42.64 | 107.58 | 0.7023 | -767.0 | -658.7 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -7.56 | 238.16 | -42.31 | 104.46 | 0.6914 | -74.0 | -32.8 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -7.50 | 238.08 | -42.38 | 104.35 | 0.6921 | -183.0 | -163.2 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -9.89 | 237.49 | -42.98 | 107.48 | 0.7064 | -700.0 | -550.6 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -8.38 | 237.67 | -42.79 | 105.46 | 0.6996 | 436.0 | 355.7 | |
| 0.64 | 2.36 | 0.44 | 1.65 | -9.12 | 237.19 | -43.28 | 106.31 | 0.7076 | -744.3 | -619.9 | |
| 5.54 | 7.72 | 3.89 | 5.42 | -9.75 | 237.04 | -43.43 | 107.13 | 0.7112 | -730.4 | -440.8 | |
| 1.45 | 2.54 | 1.01 | 1.76 | -6.51 | 237.15 | -43.32 | 102.68 | 0.7010 | 595.6 | 386.5 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -6.50 | 236.81 | -43.66 | 102.56 | 0.7050 | 506.0 | 412.2 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -6.57 | 236.59 | -43.88 | 102.60 | 0.7079 | 264.0 | 231.3 | |
| 0.00 | 3.81 | 0.00 | 2.69 | -7.69 | 236.41 | -44.06 | 104.10 | 0.7129 | -564.0 | -608.4 | |
| 5.99 | 8.45 | 4.25 | 5.99 | -8.35 | 236.19 | -44.28 | 104.94 | 0.7172 | -823.4 | -586.8 | |
| 0.00 | 1.27 | 0.00 | 0.91 | -9.26 | 236.00 | -44.47 | 106.11 | 0.7219 | 522.0 | 336.2 | |
| 0.00 | 0.54 | 0.00 | 0.38 | -6.02 | 236.31 | -44.16 | 101.77 | 0.7100 | 534.0 | 507.5 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -6.68 | 236.15 | -44.32 | 102.63 | 0.7134 | -187.0 | -211.6 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -7.61 | 235.99 | -44.48 | 103.87 | 0.7177 | -655.0 | -564.6 | |
| 1.82 | 21.89 | 1.29 | 15.60 | -7.37 | 235.71 | -44.75 | 103.47 | 0.7203 | -981.2 | -589.2 | |
| 2.91 | -33.00 | 2.07 | -33.00 | -7.32 | 235.50 | -44.96 | 103.34 | 0.7226 | -904.4 | 999999 | |
| 4.63 | -33.00 | 3.31 | -33.00 | -7.45 | 235.44 | -45.02 | 103.49 | 0.7236 | -743.9 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.84 | -9.16 | 235.19 | -45.28 | 105.73 | 0.7311 | -570.0 | -518.5 | |
| 0.00 | 1.54 | 0.00 | 1.11 | -6.93 | 235.16 | -45.31 | 102.72 | 0.7257 | -820.0 | -659.5 | |
| 1.82 | 11.17 | 1.31 | 8.03 | -6.57 | 234.94 | -45.53 | 102.17 | 0.7275 | -838.1 | -582.0 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -9.98 | 234.29 | -46.18 | 106.53 | 0.7435 | -428.0 | -399.3 | |
| 0.00 | 2.09 | 0.00 | 1.54 | -9.30 | 234.23 | -46.24 | 105.61 | 0.7423 | -716.0 | -567.7 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -9.83 | 234.13 | -46.33 | 106.29 | 0.7448 | -571.0 | -461.1 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -6.52 | 234.55 | -45.92 | 102.01 | 0.7319 | -410.0 | -308.0 | |
| 1.18 | 19.89 | 0.86 | 14.45 | -6.34 | 234.39 | -46.07 | 101.73 | 0.7334 | -874.5 | -539.5 | |
| 3.63 | -43.00 | 2.64 | -43.00 | -6.19 | 234.23 | -46.23 | 101.49 | 0.7349 | -873.0 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -10.40 | 232.51 | -47.95 | 106.53 | 0.7641 | -391.0 | -420.0 | |
| 0.00 | 1.36 | 0.00 | 1.02 | -7.34 | 232.77 | -47.69 | 102.64 | 0.7540 | -631.0 | -490.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
