groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

12102 51.84 263.14 25.96 132.16 11.92 278.08 -1.83 9.90 0.1631 -198.3 -68.7


previous   or   next   observation for the same group / back to the solar disc

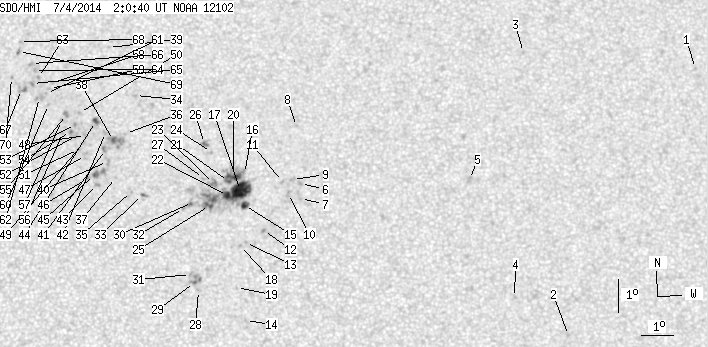

SDO HMI 2014-07-04 02:00:40 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.27 0.00 0.66 14.99 294.28 14.36 310.71 0.3175 -777.0 -561.1
2 0.00 1.00 0.00 0.50 6.83 289.88 9.97 290.50 0.1843 -810.0 -651.5
3 0.00 1.09 0.00 0.56 15.56 288.76 8.85 325.41 0.2621 -847.0 -651.5
4 0.00 1.45 0.00 0.73 8.00 288.23 8.31 300.55 0.1670 -838.0 -676.2
5 0.00 3.63 0.00 1.83 11.64 286.91 7.00 320.99 0.1904 -842.0 -689.5
6 0.00 1.91 0.00 0.96 11.54 281.64 1.72 348.54 0.1489 -815.0 -718.8
7 0.00 1.18 0.00 0.59 11.08 281.64 1.72 347.90 0.1411 -834.0 -703.6
8 0.00 1.00 0.00 0.50 13.30 281.53 1.61 351.15 0.1785 -632.0 -466.5
9 0.00 3.00 0.00 1.50 11.67 281.39 1.47 350.30 0.1502 -896.0 -627.6
10 0.00 2.82 0.00 1.41 11.23 281.26 1.35 350.65 0.1425 -887.0 -874.7
11 0.00 1.73 0.00 0.86 11.60 281.08 1.16 352.27 0.1484 -1001.0 -782.5
12 0.00 1.63 0.00 0.82 10.10 280.48 0.57 355.37 0.1212 -1158.0 -943.2
13 0.00 1.27 0.00 0.63 9.73 279.93 0.01 359.93 0.1144 -862.0 -696.6
14 0.00 1.27 0.00 0.63 7.34 279.92 0.01 359.93 0.0728 -838.0 -547.0
15 3.72 106.73 1.86 53.41 10.87 279.90 -0.02 0.15 0.1342 -1074.2 -686.5
16 0.00 1.73 0.00 0.86 11.85 279.90 -0.02 0.13 0.1513 -607.0 -354.8
17 25.61 -15.00 12.82 -15.00 11.33 279.77 -0.14 1.00 0.1423 -1203.8 999999
18 0.00 1.27 0.00 0.63 9.64 279.77 -0.15 1.28 0.1129 -989.0 -808.2
19 0.00 0.91 0.00 0.45 8.35 279.65 -0.27 2.96 0.0905 -703.0 -559.5
20 6.90 -15.00 3.46 -15.00 11.76 279.56 -0.36 2.37 0.1498 -1041.3 999999
21 1.45 -15.00 0.73 -15.00 11.61 279.40 -0.52 3.46 0.1473 -1158.9 999999
22 5.72 -15.00 2.86 -15.00 11.18 279.37 -0.55 3.86 0.1399 -1170.5 999999
23 0.00 6.99 0.00 3.50 11.55 278.93 -0.98 6.60 0.1470 -962.0 -751.4
24 0.00 1.09 0.00 0.55 12.50 278.87 -1.05 6.30 0.1635 -949.0 -749.6
25 2.09 -15.00 1.04 -15.00 10.87 278.81 -1.11 8.08 0.1356 -981.7 999999
26 0.82 4.09 0.41 2.05 12.78 278.65 -1.27 7.38 0.1688 -1027.4 -783.6
27 0.00 1.09 0.00 0.55 11.70 278.62 -1.30 8.51 0.1503 -656.0 -520.9
28 0.00 1.91 0.00 0.95 8.26 278.48 -1.44 15.70 0.0923 -912.0 -655.8
29 0.54 7.45 0.27 3.71 8.51 278.35 -1.56 16.23 0.0970 -1054.2 -873.2
30 0.00 5.81 0.00 2.91 10.96 278.28 -1.63 11.70 0.1387 -480.0 -565.6
31 0.00 1.82 0.00 0.90 8.75 278.23 -1.69 16.71 0.1017 -825.0 -666.6
32 0.00 1.18 0.00 0.59 10.78 278.00 -1.91 13.95 0.1367 -887.0 -632.5
33 0.36 2.82 0.18 1.41 11.21 276.73 -3.19 21.37 0.1505 809.8 623.1
34 0.00 1.73 0.00 0.87 14.26 276.47 -3.45 16.86 0.2017 -808.0 -639.7
35 0.00 1.09 0.00 0.55 11.30 276.38 -3.53 23.18 0.1542 681.0 547.4
36 0.00 1.00 0.00 0.50 13.09 276.17 -3.74 20.29 0.1842 664.0 507.1
37 0.00 1.18 0.00 0.59 11.73 275.88 -4.04 24.89 0.1645 821.0 608.8
38 1.63 14.08 0.82 7.09 12.87 275.80 -4.12 22.58 0.1831 1226.3 882.2
39 0.00 1.18 0.00 0.60 15.76 275.59 -4.32 18.43 0.2305 813.0 646.2
40 0.00 3.54 0.00 1.78 12.22 275.62 -4.29 24.98 0.1741 573.0 746.1
41 0.00 4.27 0.00 2.15 12.59 275.56 -4.36 24.42 0.1804 914.0 791.1
42 0.00 2.91 0.00 1.47 13.12 275.55 -4.37 23.28 0.1887 887.0 687.7
43 0.00 2.54 0.00 1.28 11.51 275.32 -4.60 28.45 0.1655 1000.0 749.9
44 1.91 3.91 0.96 1.97 13.45 275.23 -4.69 24.03 0.1962 1055.1 782.5
45 0.73 7.45 0.37 3.74 11.82 275.22 -4.69 28.07 0.1710 1129.9 973.8
46 0.00 1.27 0.00 0.64 11.69 275.01 -4.91 29.51 0.1709 944.0 714.9
47 0.00 3.72 0.00 1.88 12.40 274.93 -4.99 27.90 0.1822 462.0 671.7
48 0.00 2.18 0.00 1.10 13.02 274.92 -5.00 26.40 0.1917 599.0 498.8
49 0.00 1.27 0.00 0.64 12.80 274.86 -5.06 27.20 0.1889 950.0 822.7
50 0.00 1.45 0.00 0.74 13.73 274.72 -5.20 25.67 0.2041 1017.0 767.2
51 0.00 1.63 0.00 0.82 12.59 274.71 -5.21 28.45 0.1868 830.0 700.5
52 0.00 1.73 0.00 0.87 13.02 274.64 -5.28 27.67 0.1939 776.0 692.7
53 0.00 1.63 0.00 0.83 13.36 274.60 -5.32 27.02 0.1994 1079.0 912.2
54 0.36 1.45 0.18 0.73 13.14 274.45 -5.47 28.21 0.1973 957.8 843.3
55 0.00 3.36 0.00 1.70 13.67 274.31 -5.61 27.54 0.2063 1162.0 915.9
56 0.00 1.18 0.00 0.60 13.08 274.20 -5.72 29.44 0.1984 740.0 634.2
57 0.00 1.18 0.00 0.60 13.48 274.16 -5.76 28.61 0.2047 812.0 679.3
58 0.00 1.45 0.00 0.74 14.66 273.84 -6.07 27.21 0.2249 764.0 595.2
59 0.00 1.09 0.00 0.55 14.47 273.75 -6.16 27.95 0.2228 832.0 507.9
60 0.00 1.18 0.00 0.60 13.98 273.73 -6.18 29.14 0.2156 942.0 749.2
61 0.00 1.00 0.00 0.51 14.32 273.66 -6.26 28.64 0.2212 880.0 714.1
62 0.00 5.27 0.00 2.68 14.19 273.44 -6.47 29.76 0.2212 802.0 772.7
63 0.00 1.36 0.00 0.69 14.81 273.39 -6.52 28.55 0.2308 925.0 790.7
64 0.00 1.18 0.00 0.60 15.03 273.26 -6.66 28.57 0.2351 838.0 722.7
65 0.00 2.09 0.00 1.06 14.63 273.21 -6.71 29.64 0.2296 1068.0 916.0
66 0.00 3.00 0.00 1.53 15.25 273.16 -6.76 28.48 0.2391 753.0 600.4
67 0.00 5.09 0.00 2.59 14.44 272.87 -7.05 31.31 0.2298 726.0 777.9
68 0.00 0.82 0.00 0.42 15.93 272.75 -7.16 28.48 0.2525 727.0 546.7
69 0.00 2.18 0.00 1.11 15.62 272.73 -7.18 29.18 0.2481 944.0 783.9
70 0.00 1.36 0.00 0.69 14.81 272.54 -7.38 31.60 0.2380 832.0 616.7


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
