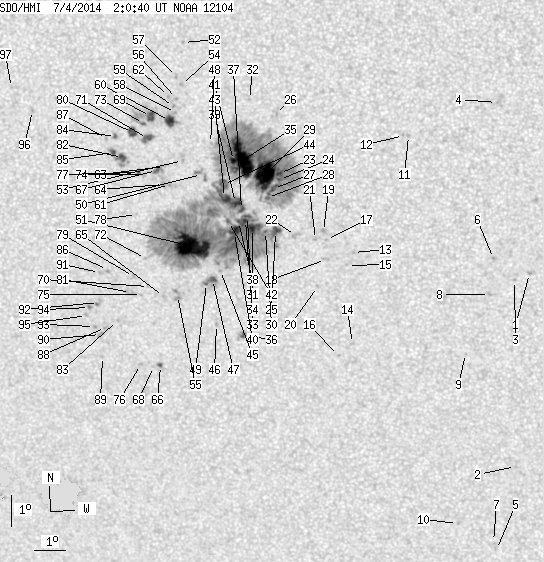

SDO HMI 2014-07-04 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 248.23 | 1304.76 | 129.73 | 683.04 | -11.41 | 268.46 | -11.46 | 142.20 | 0.3199 | 428.7 | 81.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.89 | -13.59 | 277.89 | -2.03 | 173.21 | 0.2919 | 815.0 | 698.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.85 | 277.36 | -2.56 | 173.88 | 0.3952 | 655.0 | 541.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -13.81 | 277.42 | -2.50 | 171.76 | 0.2967 | 742.0 | 594.7 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -8.21 | 276.92 | -3.00 | 165.31 | 0.2052 | 562.0 | 565.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -22.63 | 276.68 | -3.24 | 173.18 | 0.4404 | 549.0 | 416.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -13.11 | 276.77 | -3.15 | 169.20 | 0.2869 | 958.0 | 809.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -22.36 | 276.59 | -3.33 | 172.90 | 0.4364 | 195.0 | 183.5 | |
| 0.00 | 1.91 | 0.00 | 0.99 | -14.26 | 276.62 | -3.29 | 169.48 | 0.3062 | 804.0 | 581.9 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -16.16 | 275.83 | -4.09 | 168.32 | 0.3396 | 474.0 | 458.7 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -21.76 | 275.42 | -4.50 | 170.20 | 0.4297 | 619.0 | 545.3 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.25 | 274.18 | -5.74 | 155.37 | 0.2377 | 873.0 | 754.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.25 | 274.03 | -5.89 | 154.79 | 0.2388 | 837.0 | 650.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -12.94 | 272.37 | -7.54 | 155.23 | 0.3068 | 847.0 | 629.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -15.85 | 272.24 | -7.68 | 158.46 | 0.3517 | 760.0 | 639.5 | |
| 0.00 | 0.64 | 0.00 | 0.33 | -13.35 | 272.17 | -7.75 | 155.23 | 0.3144 | 721.0 | 600.3 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -16.24 | 271.77 | -8.14 | 157.73 | 0.3605 | 671.0 | 570.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -12.53 | 271.53 | -8.38 | 152.24 | 0.3069 | 822.0 | 623.8 | |
| 0.00 | 3.00 | 0.00 | 1.56 | -13.17 | 271.48 | -8.44 | 153.05 | 0.3167 | 556.0 | 550.9 | |
| 0.00 | 2.27 | 0.00 | 1.18 | -12.28 | 271.45 | -8.47 | 151.60 | 0.3039 | 939.0 | 837.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -14.03 | 271.19 | -8.72 | 153.52 | 0.3315 | 667.0 | 504.6 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -12.54 | 271.19 | -8.73 | 151.28 | 0.3097 | 963.0 | 775.0 | |
| 0.00 | 4.45 | 0.00 | 2.32 | -12.41 | 270.56 | -9.36 | 149.38 | 0.3131 | 944.0 | 752.2 | |
| 2.27 | 1091.42 | 1.18 | 570.61 | -10.46 | 270.12 | -9.79 | 144.59 | 0.2899 | 1285.4 | 67.8 | |
| 1.63 | -23.00 | 0.85 | -23.00 | -10.65 | 270.12 | -9.80 | 144.95 | 0.2926 | 1012.0 | 999999 | |
| 5.27 | -23.00 | 2.75 | -23.00 | -12.29 | 269.93 | -9.99 | 147.52 | 0.3169 | 1062.3 | 999999 | |
| 0.00 | 3.09 | 0.00 | 1.59 | -8.59 | 270.06 | -9.86 | 140.21 | 0.2658 | -517.0 | -423.9 | |
| 5.72 | -23.00 | 2.97 | -23.00 | -10.94 | 269.92 | -10.00 | 144.98 | 0.2983 | 957.7 | 999999 | |
| 1.09 | -23.00 | 0.57 | -23.00 | -11.22 | 269.72 | -10.20 | 145.00 | 0.3041 | 896.2 | 999999 | |
| 39.51 | -23.00 | 20.48 | -23.00 | -10.50 | 269.68 | -10.24 | 143.46 | 0.2948 | 1431.9 | 999999 | |
| 0.73 | -23.00 | 0.38 | -23.00 | -12.30 | 269.61 | -10.30 | 146.71 | 0.3198 | 990.8 | 999999 | |
| 10.26 | -23.00 | 5.37 | -23.00 | -12.20 | 269.21 | -10.71 | 145.52 | 0.3223 | 1020.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.16 | 269.25 | -10.66 | 136.92 | 0.2694 | -722.0 | -519.0 | |
| 2.54 | -23.00 | 1.33 | -23.00 | -11.83 | 269.06 | -10.85 | 144.47 | 0.3186 | 1112.8 | 999999 | |
| 2.00 | -23.00 | 1.04 | -23.00 | -11.95 | 268.99 | -10.92 | 144.54 | 0.3209 | 986.9 | 999999 | |
| 42.69 | -23.00 | 22.13 | -23.00 | -10.04 | 269.01 | -10.91 | 140.71 | 0.2956 | 1441.5 | 999999 | |
| 1.45 | 4.81 | 0.78 | 2.57 | -15.62 | 268.75 | -11.17 | 149.87 | 0.3732 | 1022.7 | 706.3 | |
| 3.09 | -23.00 | 1.61 | -23.00 | -11.61 | 268.88 | -11.04 | 143.61 | 0.3174 | 941.3 | 999999 | |
| 1.00 | -23.00 | 0.52 | -23.00 | -11.99 | 268.77 | -11.15 | 144.05 | 0.3235 | 752.3 | 999999 | |
| 8.81 | -23.00 | 4.60 | -23.00 | -11.39 | 268.70 | -11.22 | 142.74 | 0.3163 | 1042.5 | 999999 | |
| 10.81 | -23.00 | 5.67 | -23.00 | -12.34 | 268.63 | -11.29 | 144.35 | 0.3296 | 53.9 | 999999 | |
| 3.00 | -23.00 | 1.56 | -23.00 | -10.07 | 268.69 | -11.23 | 139.98 | 0.2995 | 1189.5 | 999999 | |
| 1.18 | -23.00 | 0.62 | -23.00 | -11.99 | 268.45 | -11.47 | 143.29 | 0.3267 | 511.8 | 999999 | |
| 11.08 | -23.00 | 5.79 | -23.00 | -11.24 | 268.36 | -11.56 | 141.60 | 0.3178 | 728.2 | 999999 | |
| 6.90 | -23.00 | 3.60 | -23.00 | -10.83 | 268.34 | -11.57 | 140.74 | 0.3127 | 1018.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -13.55 | 268.12 | -11.80 | 145.29 | 0.3505 | -1004.0 | -754.9 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -15.28 | 267.90 | -12.02 | 147.52 | 0.3757 | 695.0 | 553.4 | |
| 3.00 | 13.35 | 1.59 | 7.08 | -13.84 | 267.85 | -12.07 | 145.16 | 0.3569 | -1168.1 | -830.8 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -9.55 | 267.98 | -11.94 | 137.07 | 0.3008 | 60.0 | 62.0 | |
| 0.64 | -47.00 | 0.34 | -47.00 | -13.97 | 267.65 | -12.27 | 144.94 | 0.3604 | -1135.4 | 999999 | |
| 0.00 | 7.45 | 0.00 | 3.89 | -10.52 | 267.66 | -12.26 | 138.48 | 0.3163 | 701.0 | 650.3 | |
| 50.23 | -23.00 | 26.54 | -23.00 | -12.80 | 267.23 | -12.69 | 142.00 | 0.3493 | -1323.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -6.42 | 267.23 | -12.69 | 127.18 | 0.2751 | 772.0 | 592.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -10.09 | 267.07 | -12.84 | 136.21 | 0.3176 | 767.0 | 645.7 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -7.72 | 267.13 | -12.79 | 130.58 | 0.2901 | 576.0 | 556.4 | |
| 0.00 | 6.27 | 0.00 | 3.35 | -14.36 | 266.69 | -13.23 | 143.56 | 0.3747 | -547.0 | -762.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -8.16 | 266.96 | -12.96 | 131.34 | 0.2970 | 1025.0 | 861.0 | |
| 0.00 | 2.18 | 0.00 | 1.13 | -7.47 | 266.98 | -12.94 | 129.60 | 0.2894 | 728.0 | 625.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -8.59 | 266.91 | -13.01 | 132.34 | 0.3024 | 956.0 | 783.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -8.41 | 266.85 | -13.06 | 131.75 | 0.3010 | 992.0 | 850.2 | |
| 7.63 | 12.17 | 3.97 | 6.33 | -8.84 | 266.71 | -13.21 | 132.52 | 0.3076 | 1149.3 | 743.8 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -10.85 | 266.63 | -13.29 | 136.87 | 0.3317 | -722.0 | -480.6 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -8.10 | 266.71 | -13.21 | 130.65 | 0.2995 | 947.0 | 765.4 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -10.28 | 266.49 | -13.42 | 135.38 | 0.3266 | 724.0 | 556.5 | |
| 0.00 | 3.18 | 0.00 | 1.67 | -10.85 | 266.43 | -13.48 | 136.47 | 0.3339 | -2.0 | 20.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -14.40 | 266.24 | -13.68 | 142.70 | 0.3796 | -880.0 | -588.9 | |
| 1.18 | 2.27 | 0.64 | 1.23 | -16.62 | 265.98 | -13.93 | 145.63 | 0.4104 | -1051.2 | -885.2 | |
| 1.63 | 5.99 | 0.86 | 3.15 | -10.41 | 266.23 | -13.69 | 135.11 | 0.3312 | 906.7 | 449.8 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -16.66 | 265.75 | -14.17 | 145.25 | 0.4130 | -761.0 | -665.4 | |
| 5.00 | 24.07 | 2.61 | 12.57 | -8.73 | 266.11 | -13.80 | 130.98 | 0.3138 | 1041.5 | 373.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -14.09 | 265.77 | -14.15 | 141.25 | 0.3803 | -656.0 | -393.2 | |
| 4.36 | 8.36 | 2.28 | 4.37 | -9.41 | 265.99 | -13.93 | 132.37 | 0.3228 | 1070.3 | 802.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -13.19 | 265.73 | -14.19 | 139.60 | 0.3698 | -728.0 | -519.0 | |
| 0.54 | -69.00 | 0.28 | -69.00 | -8.95 | 265.88 | -14.04 | 131.05 | 0.3190 | 872.8 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.39 | -10.54 | 265.81 | -14.11 | 134.53 | 0.3376 | 181.0 | 224.0 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -14.34 | 265.53 | -14.39 | 141.21 | 0.3860 | -725.0 | -662.6 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -16.60 | 265.33 | -14.59 | 144.38 | 0.4161 | -811.0 | -665.2 | |
| 0.82 | 3.00 | 0.43 | 1.58 | -10.48 | 265.65 | -14.26 | 134.09 | 0.3387 | 815.1 | 637.4 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -11.80 | 265.52 | -14.40 | 136.56 | 0.3555 | -604.0 | -406.1 | |
| 0.00 | 2.63 | 0.00 | 1.41 | -13.77 | 265.31 | -14.61 | 139.81 | 0.3813 | -820.0 | -528.3 | |
| 5.63 | 7.81 | 2.95 | 4.09 | -9.23 | 265.52 | -14.40 | 131.00 | 0.3266 | 928.8 | 680.8 | |
| 0.00 | 6.36 | 0.00 | 3.42 | -14.28 | 265.17 | -14.74 | 140.44 | 0.3889 | -564.0 | -584.6 | |
| 3.63 | 18.35 | 1.91 | 9.66 | -10.02 | 265.16 | -14.75 | 132.11 | 0.3395 | 1075.8 | 724.1 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -15.19 | 264.68 | -15.23 | 141.02 | 0.4048 | -735.0 | -467.6 | |
| 0.73 | 2.45 | 0.38 | 1.29 | -9.36 | 264.97 | -14.95 | 130.26 | 0.3349 | 926.8 | 684.6 | |
| 2.18 | -82.00 | 1.15 | -82.00 | -9.87 | 264.88 | -15.03 | 131.24 | 0.3413 | 991.2 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -13.56 | 264.47 | -15.44 | 137.88 | 0.3876 | -526.0 | -618.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -9.43 | 264.68 | -15.24 | 129.87 | 0.3393 | 796.0 | 603.6 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -15.42 | 264.27 | -15.64 | 140.66 | 0.4118 | -867.0 | -733.4 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -16.36 | 264.10 | -15.82 | 141.81 | 0.4249 | -698.0 | -557.2 | |
| 0.00 | 2.54 | 0.00 | 1.38 | -15.65 | 264.09 | -15.83 | 140.70 | 0.4164 | -796.0 | -712.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -13.66 | 264.21 | -15.71 | 137.57 | 0.3916 | -593.0 | -451.5 | |
| 0.00 | 3.63 | 0.00 | 1.97 | -14.62 | 264.10 | -15.81 | 139.05 | 0.4040 | -789.0 | -790.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -15.39 | 263.91 | -16.00 | 139.98 | 0.4151 | -806.0 | -739.6 | |
| 0.00 | 2.27 | 0.00 | 1.23 | -14.78 | 263.80 | -16.12 | 138.78 | 0.4091 | -917.0 | -746.8 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -15.04 | 263.68 | -16.24 | 139.01 | 0.4134 | -619.0 | -543.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -8.59 | 262.34 | -17.58 | 124.03 | 0.3619 | -837.0 | -633.7 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -7.89 | 261.69 | -18.22 | 121.44 | 0.3646 | -783.0 | -603.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
