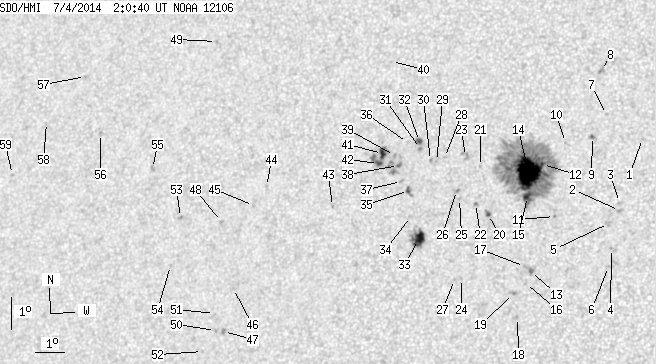

SDO HMI 2014-07-04 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.02 | 415.26 | 40.82 | 223.69 | 15.36 | 260.38 | -19.54 | 56.04 | 0.3895 | -445.7 | -208.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.48 | 16.77 | 265.43 | -14.49 | 45.36 | 0.3382 | -741.0 | -609.2 | |
| 0.00 | 2.63 | 0.00 | 1.38 | 14.52 | 264.84 | -15.08 | 51.78 | 0.3219 | -892.0 | -766.1 | |
| 0.00 | 2.36 | 0.00 | 1.24 | 14.77 | 264.82 | -15.10 | 51.19 | 0.3246 | -659.0 | -611.0 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 13.34 | 264.66 | -15.26 | 55.19 | 0.3133 | -877.0 | -738.0 | |
| 0.00 | 3.72 | 0.00 | 1.95 | 14.11 | 264.51 | -15.41 | 53.40 | 0.3224 | -919.0 | -717.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 12.78 | 264.59 | -15.32 | 56.82 | 0.3093 | -907.0 | -701.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 17.51 | 264.18 | -15.74 | 46.05 | 0.3609 | -765.0 | -560.8 | |
| 0.00 | 3.27 | 0.00 | 1.75 | 18.90 | 263.88 | -16.04 | 43.77 | 0.3794 | -806.0 | -692.1 | |
| 0.54 | 1.82 | 0.29 | 0.96 | 16.82 | 263.77 | -16.14 | 48.24 | 0.3584 | -902.2 | -633.3 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 16.62 | 262.89 | -17.02 | 50.11 | 0.3672 | 652.0 | 458.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 14.30 | 262.72 | -17.19 | 55.73 | 0.3481 | -892.0 | -713.5 | |
| 0.27 | 275.04 | 0.15 | 146.89 | 15.92 | 262.19 | -17.73 | 52.73 | 0.3695 | -1027.3 | -391.8 | |
| 0.00 | 3.09 | 0.00 | 1.63 | 12.59 | 262.06 | -17.85 | 60.99 | 0.3436 | -1180.0 | -941.1 | |
| 46.78 | -12.00 | 24.96 | -12.00 | 15.69 | 261.75 | -18.17 | 53.88 | 0.3733 | -1441.2 | 999999 | |
| 5.36 | -12.00 | 2.85 | -12.00 | 14.91 | 261.78 | -18.14 | 55.62 | 0.3660 | -1140.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 12.22 | 261.92 | -17.99 | 62.15 | 0.3429 | -688.0 | -447.8 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 12.74 | 261.85 | -18.06 | 60.86 | 0.3477 | -661.0 | -600.6 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 11.16 | 261.73 | -18.18 | 65.20 | 0.3387 | -729.0 | -595.1 | |
| 0.00 | 2.63 | 0.00 | 1.39 | 11.90 | 261.55 | -18.36 | 63.42 | 0.3462 | -883.0 | -762.7 | |
| 1.00 | 3.27 | 0.53 | 1.75 | 14.33 | 260.53 | -19.38 | 58.60 | 0.3783 | -1039.9 | -816.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 15.82 | 260.12 | -19.79 | 55.75 | 0.3958 | -559.0 | -442.3 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 14.66 | 260.07 | -19.85 | 58.39 | 0.3873 | -853.0 | -753.3 | |
| 0.00 | 5.00 | 0.00 | 2.71 | 16.12 | 259.59 | -20.33 | 55.76 | 0.4054 | 565.0 | 646.3 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 12.33 | 259.80 | -20.11 | 64.22 | 0.3747 | -685.0 | -478.5 | |
| 0.00 | 1.73 | 0.00 | 0.93 | 14.81 | 259.52 | -20.40 | 58.71 | 0.3960 | -650.0 | -513.9 | |
| 0.00 | 2.63 | 0.00 | 1.42 | 15.06 | 259.39 | -20.52 | 58.30 | 0.3996 | -515.0 | -400.5 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 12.30 | 259.57 | -20.34 | 64.54 | 0.3778 | -621.0 | -490.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 16.08 | 258.88 | -21.04 | 56.69 | 0.4145 | 718.0 | 549.0 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 15.95 | 258.62 | -21.30 | 57.26 | 0.4169 | 745.0 | 644.2 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 15.98 | 258.41 | -21.50 | 57.44 | 0.4199 | 904.0 | 690.6 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 16.35 | 258.03 | -21.89 | 57.10 | 0.4278 | 881.0 | 778.9 | |
| 2.00 | 3.63 | 1.10 | 1.99 | 16.56 | 257.97 | -21.95 | 56.72 | 0.4303 | 840.0 | 652.8 | |
| 11.90 | 20.16 | 6.44 | 10.92 | 13.51 | 258.26 | -21.66 | 62.97 | 0.4045 | -1058.2 | -572.6 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 14.22 | 257.92 | -22.00 | 61.73 | 0.4140 | -482.0 | -320.9 | |
| 1.45 | 5.00 | 0.79 | 2.73 | 15.03 | 257.77 | -22.15 | 60.13 | 0.4216 | 1065.2 | 776.9 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 16.52 | 257.56 | -22.35 | 57.24 | 0.4354 | 507.0 | 386.6 | |
| 0.00 | 1.73 | 0.00 | 0.94 | 15.30 | 257.50 | -22.42 | 59.82 | 0.4273 | 987.0 | 791.9 | |
| 0.54 | 12.17 | 0.30 | 6.69 | 15.80 | 257.34 | -22.58 | 58.95 | 0.4330 | 1081.0 | 849.8 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 16.11 | 257.16 | -22.75 | 58.49 | 0.4376 | 921.0 | 795.2 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 19.06 | 256.67 | -23.25 | 53.33 | 0.4671 | -783.0 | -631.7 | |
| 4.00 | 18.44 | 2.21 | 10.18 | 16.16 | 256.74 | -23.17 | 58.81 | 0.4436 | 1007.3 | 732.4 | |
| 2.18 | -41.00 | 1.20 | -41.00 | 15.85 | 256.64 | -23.27 | 59.54 | 0.4427 | 997.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 14.48 | 255.22 | -24.70 | 63.62 | 0.4535 | 699.0 | 476.6 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 15.05 | 252.83 | -27.09 | 64.33 | 0.4898 | 134.0 | 136.6 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 14.45 | 252.45 | -27.47 | 65.74 | 0.4919 | 770.0 | 564.9 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 11.86 | 252.06 | -27.86 | 71.04 | 0.4855 | 755.0 | 513.6 | |
| 0.00 | 3.00 | 0.00 | 1.69 | 10.53 | 251.84 | -28.07 | 73.82 | 0.4837 | 1020.0 | 780.1 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 13.92 | 251.38 | -28.54 | 67.43 | 0.5042 | 647.0 | 573.3 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 19.55 | 250.26 | -29.66 | 58.25 | 0.5505 | 704.0 | 599.1 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 10.56 | 251.56 | -28.36 | 73.90 | 0.4880 | 828.0 | 693.6 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 11.08 | 251.47 | -28.45 | 72.90 | 0.4911 | 459.0 | 388.5 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 9.90 | 251.16 | -28.75 | 75.38 | 0.4917 | 703.0 | 558.4 | |
| 0.00 | 2.00 | 0.00 | 1.16 | 14.01 | 249.89 | -30.03 | 68.12 | 0.5253 | 821.0 | 708.7 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 12.52 | 249.73 | -30.19 | 70.96 | 0.5213 | 713.0 | 605.2 | |
| 0.00 | 2.54 | 0.00 | 1.51 | 15.50 | 248.63 | -31.29 | 66.17 | 0.5492 | 612.0 | 531.4 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 16.54 | 246.48 | -33.43 | 65.59 | 0.5822 | 522.0 | 456.7 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 18.31 | 245.53 | -34.38 | 63.26 | 0.6025 | 579.0 | 460.7 | |
| 0.00 | 0.82 | 0.00 | 0.51 | 16.82 | 244.34 | -35.58 | 66.20 | 0.6109 | 684.0 | 540.7 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 15.16 | 243.35 | -36.57 | 69.24 | 0.6172 | 636.0 | 503.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
