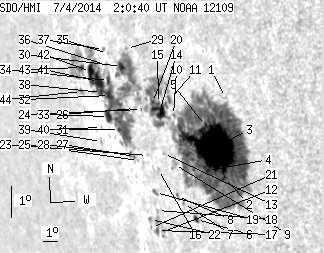

SDO HMI 2014-07-04 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 184.75 | 974.17 | 192.00 | 1020.34 | -7.74 | 218.95 | -60.96 | 100.59 | 0.8819 | 342.0 | -45.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.94 | -6.65 | 222.57 | -57.34 | 99.86 | 0.8509 | 172.0 | 229.0 | |
| 2.00 | 585.13 | 1.93 | 570.79 | -9.16 | 221.95 | -57.96 | 102.66 | 0.8598 | 620.6 | 219.1 | |
| 116.90 | -2.00 | 113.43 | -2.00 | -8.24 | 221.59 | -58.32 | 101.54 | 0.8616 | 943.4 | 999999 | |
| 2.00 | -2.00 | 1.98 | -2.00 | -8.99 | 220.99 | -58.93 | 102.29 | 0.8678 | 20.9 | 999999 | |
| 1.18 | -2.00 | 1.15 | -2.00 | -7.58 | 221.21 | -58.70 | 100.72 | 0.8641 | 468.5 | 999999 | |
| 2.00 | 3.27 | 2.07 | 3.38 | -10.57 | 219.84 | -60.08 | 103.87 | 0.8795 | 337.6 | 231.2 | |
| 0.00 | 1.18 | 0.00 | 1.24 | -10.10 | 219.17 | -60.75 | 103.23 | 0.8843 | 161.0 | 149.8 | |
| 0.00 | 2.18 | 0.00 | 2.31 | -9.90 | 218.85 | -61.07 | 102.94 | 0.8865 | -32.0 | 17.8 | |
| 0.00 | 4.45 | 0.00 | 4.69 | -8.90 | 218.96 | -60.96 | 101.84 | 0.8844 | -637.0 | -564.9 | |
| 0.00 | 1.73 | 0.00 | 1.78 | -7.36 | 219.30 | -60.62 | 100.17 | 0.8799 | 471.0 | 363.2 | |
| 1.54 | 82.47 | 1.60 | 87.80 | -6.87 | 219.16 | -60.76 | 99.60 | 0.8805 | 609.4 | -90.6 | |
| 0.00 | 3.91 | 0.00 | 4.37 | -11.06 | 217.52 | -62.40 | 104.00 | 0.8982 | -713.0 | -578.1 | |
| 0.00 | 0.73 | 0.00 | 0.78 | -8.59 | 218.34 | -61.58 | 101.39 | 0.8890 | -498.0 | -530.4 | |
| 10.35 | -11.00 | 11.02 | -11.00 | -7.28 | 218.42 | -61.50 | 99.95 | 0.8869 | 314.7 | 999999 | |
| 1.18 | -11.00 | 1.26 | -11.00 | -7.03 | 218.41 | -61.50 | 99.67 | 0.8867 | 374.6 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.99 | -9.11 | 217.85 | -62.06 | 101.90 | 0.8933 | -333.0 | -288.5 | |
| 1.27 | 7.63 | 1.44 | 8.63 | -11.05 | 217.11 | -62.80 | 103.92 | 0.9012 | -547.5 | -438.9 | |
| 0.00 | 1.09 | 0.00 | 1.22 | -10.41 | 217.35 | -62.57 | 103.26 | 0.8986 | -24.0 | -20.0 | |
| 0.00 | 2.91 | 0.00 | 3.24 | -9.85 | 217.41 | -62.50 | 102.64 | 0.8975 | -670.0 | -546.2 | |
| 1.36 | -11.00 | 1.47 | -11.00 | -7.02 | 218.02 | -61.89 | 99.60 | 0.8898 | 105.7 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.83 | -10.97 | 216.73 | -63.19 | 103.77 | 0.9039 | -454.0 | -462.8 | |
| 0.00 | 2.18 | 0.00 | 2.50 | -10.72 | 216.76 | -63.16 | 103.50 | 0.9034 | -583.0 | -528.2 | |
| 0.00 | 0.82 | 0.00 | 0.91 | -8.70 | 217.24 | -62.68 | 101.35 | 0.8976 | -497.0 | -523.4 | |
| 0.00 | 1.27 | 0.00 | 1.41 | -7.28 | 217.23 | -62.69 | 99.77 | 0.8962 | -147.0 | -156.6 | |
| 0.00 | 0.27 | 0.00 | 0.31 | -8.89 | 216.56 | -63.36 | 101.46 | 0.9028 | -348.0 | -441.3 | |
| 0.00 | 2.54 | 0.00 | 2.87 | -7.27 | 216.75 | -63.16 | 99.70 | 0.8998 | -505.0 | -497.1 | |
| 0.00 | 1.09 | 0.00 | 1.26 | -8.78 | 216.32 | -63.60 | 101.30 | 0.9045 | -581.0 | -563.5 | |
| 0.73 | 2.09 | 0.85 | 2.43 | -8.73 | 216.05 | -63.86 | 101.21 | 0.9064 | -278.5 | -362.6 | |
| 0.00 | 1.00 | 0.00 | 1.12 | -5.42 | 216.62 | -63.30 | 97.64 | 0.8991 | -439.0 | -427.9 | |
| 4.27 | 223.44 | 4.89 | 262.83 | -6.00 | 216.15 | -63.76 | 98.22 | 0.9031 | -811.7 | -551.2 | |
| 1.36 | -30.00 | 1.61 | -30.00 | -7.98 | 215.50 | -64.42 | 100.31 | 0.9096 | -838.9 | 999999 | |
| 7.36 | -30.00 | 8.81 | -30.00 | -6.95 | 215.06 | -64.85 | 99.12 | 0.9118 | -694.9 | 999999 | |
| 5.63 | -30.00 | 6.82 | -30.00 | -7.62 | 214.81 | -65.11 | 99.81 | 0.9142 | -655.4 | 999999 | |
| 2.63 | -30.00 | 3.14 | -30.00 | -6.49 | 215.11 | -64.81 | 98.62 | 0.9111 | -789.7 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.75 | -5.65 | 215.23 | -64.68 | 97.72 | 0.9095 | -530.0 | -513.6 | |
| 0.00 | 0.36 | 0.00 | 0.43 | -6.00 | 214.94 | -64.98 | 98.07 | 0.9119 | -406.0 | -442.0 | |
| 0.00 | 1.45 | 0.00 | 1.73 | -5.54 | 214.97 | -64.95 | 97.57 | 0.9114 | -497.0 | -411.7 | |
| 2.00 | -30.00 | 2.44 | -30.00 | -6.89 | 214.49 | -65.43 | 98.98 | 0.9158 | -620.8 | 999999 | |
| 0.00 | 2.18 | 0.00 | 2.74 | -8.43 | 214.02 | -65.89 | 100.59 | 0.9202 | -214.0 | -196.4 | |
| 0.00 | 1.00 | 0.00 | 1.24 | -7.99 | 214.17 | -65.75 | 100.13 | 0.9189 | -328.0 | -259.5 | |
| 10.45 | -30.00 | 12.79 | -30.00 | -6.56 | 214.35 | -65.56 | 98.60 | 0.9164 | -695.8 | 999999 | |
| 7.18 | -30.00 | 8.97 | -30.00 | -6.27 | 213.82 | -66.10 | 98.24 | 0.9199 | -299.2 | 999999 | |
| 2.54 | 29.61 | 3.27 | 38.60 | -6.19 | 213.15 | -66.77 | 98.06 | 0.9243 | -267.8 | 116.9 | |
| 0.82 | 4.00 | 1.06 | 5.22 | -6.94 | 212.94 | -66.98 | 98.85 | 0.9262 | -9.2 | 152.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
