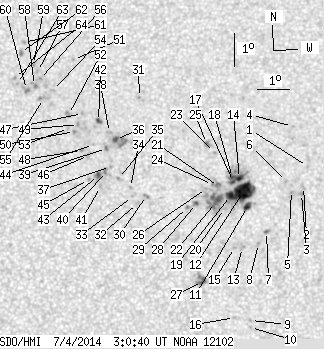

SDO HMI 2014-07-04 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.69 | 221.39 | 24.86 | 111.12 | 11.79 | 277.78 | -1.59 | 8.07 | 0.1567 | -217.4 | -73.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.59 | 12.07 | 281.78 | 2.41 | 345.07 | 0.1605 | -916.0 | -627.5 | |
| 0.00 | 2.36 | 0.00 | 1.18 | 11.46 | 281.65 | 2.28 | 344.81 | 0.1496 | -769.0 | -658.9 | |
| 0.00 | 2.36 | 0.00 | 1.18 | 11.24 | 281.59 | 2.22 | 344.83 | 0.1457 | -841.0 | -747.0 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 13.31 | 281.32 | 1.96 | 349.29 | 0.1796 | -656.0 | -605.1 | |
| 0.00 | 0.36 | 0.00 | 0.18 | 11.34 | 281.28 | 1.91 | 347.02 | 0.1460 | -555.0 | -690.2 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 11.61 | 281.12 | 1.75 | 348.43 | 0.1501 | -817.0 | -726.7 | |
| 0.00 | 2.45 | 0.00 | 1.22 | 10.08 | 280.49 | 1.12 | 350.84 | 0.1219 | -1116.0 | -861.4 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 9.71 | 280.24 | 0.88 | 352.44 | 0.1150 | -932.0 | -669.8 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 7.35 | 279.99 | 0.62 | 351.57 | 0.0736 | -864.0 | -658.6 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 7.14 | 279.99 | 0.62 | 351.12 | 0.0699 | -869.0 | -652.8 | |
| 3.72 | 74.49 | 1.86 | 37.29 | 10.85 | 279.91 | 0.54 | 356.04 | 0.1341 | -1062.8 | -644.1 | |
| 26.80 | -11.00 | 13.41 | -11.00 | 11.31 | 279.78 | 0.42 | 357.12 | 0.1419 | -1204.0 | 999999 | |
| 0.00 | 3.09 | 0.00 | 1.54 | 9.59 | 279.75 | 0.38 | 356.64 | 0.1120 | -995.0 | -735.0 | |
| 2.91 | -11.00 | 1.46 | -11.00 | 11.71 | 279.66 | 0.29 | 358.07 | 0.1488 | -1070.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 9.59 | 279.50 | 0.13 | 358.82 | 0.1119 | -839.0 | -625.7 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 7.45 | 279.50 | 0.13 | 358.27 | 0.0745 | -866.0 | -546.4 | |
| 1.18 | -11.00 | 0.59 | -11.00 | 11.62 | 279.47 | 0.11 | 359.30 | 0.1471 | -1203.6 | 999999 | |
| 1.45 | -11.00 | 0.73 | -11.00 | 11.74 | 279.44 | 0.07 | 359.51 | 0.1492 | -1016.1 | 999999 | |
| 5.54 | -11.00 | 2.77 | -11.00 | 11.19 | 279.38 | 0.01 | 359.93 | 0.1396 | -1178.4 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 10.79 | 279.19 | -0.18 | 1.30 | 0.1327 | -229.0 | -271.9 | |
| 0.00 | 5.09 | 0.00 | 2.55 | 11.46 | 279.01 | -0.36 | 2.46 | 0.1446 | -962.0 | -793.5 | |
| 0.00 | 20.08 | 0.00 | 10.04 | 10.97 | 278.91 | -0.45 | 3.29 | 0.1361 | -1145.0 | -858.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.51 | 278.88 | -0.49 | 2.93 | 0.1628 | -944.0 | -732.0 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.53 | 278.82 | -0.55 | 3.70 | 0.1458 | -808.0 | -752.6 | |
| 0.55 | 3.18 | 0.27 | 1.60 | 12.79 | 278.63 | -0.74 | 4.30 | 0.1679 | -1013.3 | -828.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.40 | 278.63 | -0.73 | 5.03 | 0.1439 | -588.0 | -486.8 | |
| 2.00 | 7.90 | 0.99 | 3.93 | 8.55 | 278.51 | -0.85 | 8.99 | 0.0949 | -1185.1 | -861.0 | |
| 0.82 | 2.63 | 0.41 | 1.32 | 10.94 | 278.32 | -1.04 | 7.56 | 0.1366 | -841.9 | -715.4 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 10.82 | 278.04 | -1.32 | 9.70 | 0.1352 | -852.0 | -671.4 | |
| 0.00 | 2.73 | 0.00 | 1.36 | 11.19 | 276.77 | -2.60 | 17.74 | 0.1467 | 787.0 | 628.3 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 14.21 | 276.52 | -2.85 | 14.13 | 0.1980 | -811.0 | -729.7 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 10.94 | 276.49 | -2.88 | 20.08 | 0.1442 | 697.0 | 618.0 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.15 | 276.33 | -3.03 | 20.55 | 0.1486 | 892.0 | 735.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.43 | 276.27 | -3.10 | 20.29 | 0.1535 | 802.0 | 602.2 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 11.71 | 275.89 | -3.48 | 21.84 | 0.1603 | 913.0 | 656.6 | |
| 1.82 | 12.17 | 0.91 | 6.13 | 12.91 | 275.78 | -3.58 | 19.84 | 0.1803 | 1259.8 | 865.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.08 | 275.64 | -3.73 | 22.38 | 0.1678 | 919.0 | 750.5 | |
| 0.00 | 2.54 | 0.00 | 1.28 | 13.13 | 275.59 | -3.77 | 20.38 | 0.1849 | 841.0 | 683.8 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 12.63 | 275.51 | -3.86 | 21.83 | 0.1775 | 1174.0 | 994.9 | |
| 0.00 | 3.27 | 0.00 | 1.64 | 11.92 | 275.52 | -3.85 | 23.41 | 0.1662 | 832.0 | 851.9 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 11.46 | 275.33 | -4.03 | 25.60 | 0.1603 | 876.0 | 656.4 | |
| 1.45 | 3.27 | 0.73 | 1.65 | 13.47 | 275.24 | -4.13 | 21.41 | 0.1925 | 1029.2 | 826.7 | |
| 1.45 | 4.36 | 0.73 | 2.19 | 11.80 | 275.27 | -4.10 | 25.06 | 0.1660 | 1175.1 | 720.9 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 12.76 | 275.10 | -4.27 | 23.60 | 0.1822 | 767.0 | 505.3 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 11.68 | 274.96 | -4.41 | 27.03 | 0.1665 | 939.0 | 759.9 | |
| 0.00 | 3.45 | 0.00 | 1.74 | 12.42 | 274.95 | -4.42 | 25.15 | 0.1780 | 812.0 | 682.1 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 13.71 | 274.74 | -4.63 | 23.24 | 0.1997 | 944.0 | 795.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.57 | 274.72 | -4.64 | 25.86 | 0.1820 | 884.0 | 748.4 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 13.37 | 274.62 | -4.75 | 24.50 | 0.1952 | 1032.0 | 902.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.16 | 274.49 | -4.87 | 25.54 | 0.1927 | 1020.0 | 876.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 15.39 | 274.42 | -4.95 | 21.48 | 0.2282 | -770.0 | -606.7 | |
| 0.00 | 2.73 | 0.00 | 1.38 | 13.68 | 274.30 | -5.07 | 25.25 | 0.2023 | 1030.0 | 909.6 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 13.25 | 274.30 | -5.06 | 26.18 | 0.1956 | 720.0 | 654.3 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 14.42 | 273.77 | -5.59 | 25.84 | 0.2176 | 804.0 | 678.7 | |
| 0.00 | 4.27 | 0.00 | 2.17 | 14.17 | 273.50 | -5.87 | 27.48 | 0.2159 | 834.0 | 792.7 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 14.76 | 273.35 | -6.01 | 26.77 | 0.2259 | 665.0 | 773.1 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 15.01 | 273.28 | -6.08 | 26.53 | 0.2302 | 808.0 | 646.6 | |
| 0.00 | 3.45 | 0.00 | 1.75 | 14.58 | 273.20 | -6.17 | 27.75 | 0.2243 | 1070.0 | 894.0 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 15.23 | 273.15 | -6.22 | 26.59 | 0.2345 | 839.0 | 704.3 | |
| 0.00 | 3.91 | 0.00 | 1.99 | 14.45 | 272.95 | -6.42 | 28.97 | 0.2245 | 982.0 | 862.6 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 15.92 | 272.81 | -6.56 | 26.47 | 0.2474 | 814.0 | 662.5 | |
| 0.00 | 2.27 | 0.00 | 1.16 | 15.60 | 272.73 | -6.64 | 27.37 | 0.2434 | 926.0 | 773.0 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 14.64 | 272.66 | -6.71 | 29.63 | 0.2296 | 836.0 | 678.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 14.82 | 272.56 | -6.81 | 29.58 | 0.2332 | 838.0 | 664.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
