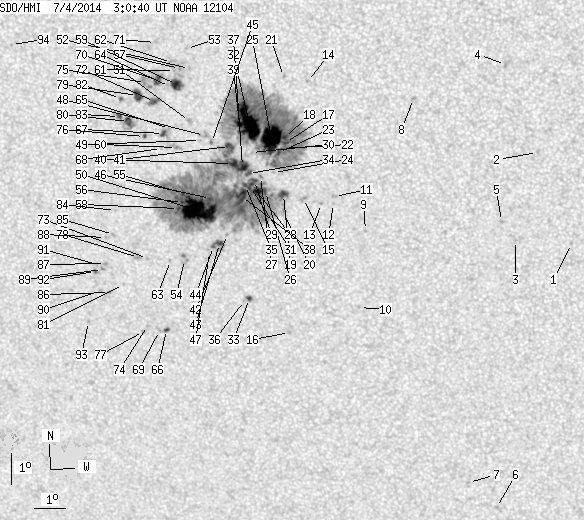

SDO HMI 2014-07-04 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 230.97 | 1301.95 | 120.49 | 680.08 | -11.43 | 268.39 | -10.98 | 143.45 | 0.3154 | 358.5 | 109.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.61 | -13.80 | 279.00 | -0.36 | 178.79 | 0.2937 | 730.0 | 494.0 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -10.92 | 277.95 | -1.41 | 174.33 | 0.2462 | 839.0 | 638.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -13.71 | 277.25 | -2.12 | 172.95 | 0.2942 | 845.0 | 702.8 | |
| 0.00 | 2.73 | 0.00 | 1.38 | -8.17 | 276.98 | -2.38 | 168.20 | 0.2022 | 912.0 | 654.9 | |
| 0.00 | 2.00 | 0.00 | 1.03 | -13.10 | 276.81 | -2.55 | 171.21 | 0.2852 | 927.0 | 768.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -22.45 | 276.50 | -2.87 | 173.90 | 0.4371 | 773.0 | 518.8 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.61 | 275.60 | -3.77 | 171.71 | 0.4257 | 824.0 | 604.0 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -9.24 | 274.13 | -5.24 | 157.27 | 0.2342 | 890.0 | 729.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -13.40 | 272.53 | -6.83 | 157.92 | 0.3092 | 625.0 | 520.7 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.87 | 272.26 | -7.11 | 159.96 | 0.3488 | 758.0 | 548.2 | |
| 0.00 | 2.54 | 0.00 | 1.32 | -12.33 | 271.59 | -7.78 | 153.67 | 0.2994 | 935.0 | 785.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -12.55 | 271.55 | -7.82 | 153.89 | 0.3030 | 764.0 | 625.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -12.55 | 271.17 | -8.19 | 152.82 | 0.3059 | 989.0 | 810.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.73 | 270.84 | -8.52 | 144.58 | 0.2539 | -745.0 | -523.8 | |
| 0.00 | 3.27 | 0.00 | 1.70 | -12.40 | 270.61 | -8.76 | 151.00 | 0.3080 | 977.0 | 783.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -16.69 | 269.98 | -9.39 | 155.29 | 0.3753 | 858.0 | 707.4 | |
| 2.09 | 1102.98 | 1.08 | 575.53 | -10.64 | 270.10 | -9.27 | 146.43 | 0.2874 | 969.8 | 95.2 | |
| 1.73 | -17.00 | 0.89 | -17.00 | -10.48 | 270.08 | -9.29 | 146.04 | 0.2855 | 1265.0 | 999999 | |
| 4.18 | -17.00 | 2.18 | -17.00 | -12.28 | 269.98 | -9.38 | 149.09 | 0.3115 | 1118.2 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.00 | -12.85 | 269.96 | -9.41 | 149.97 | 0.3198 | 503.0 | 467.1 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -8.58 | 270.10 | -9.27 | 141.93 | 0.2594 | -626.0 | -514.4 | |
| 0.55 | -17.00 | 0.28 | -17.00 | -10.83 | 269.97 | -9.40 | 146.43 | 0.2913 | 955.8 | 999999 | |
| 1.73 | -17.00 | 0.89 | -17.00 | -10.95 | 269.87 | -9.50 | 146.40 | 0.2939 | 1054.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -11.59 | 269.69 | -9.68 | 147.09 | 0.3043 | 450.0 | 302.4 | |
| 37.79 | -17.00 | 19.55 | -17.00 | -10.52 | 269.67 | -9.70 | 144.96 | 0.2899 | 1453.7 | 999999 | |
| 1.73 | -17.00 | 0.90 | -17.00 | -12.19 | 269.42 | -9.95 | 147.44 | 0.3152 | 1035.2 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -11.72 | 269.28 | -10.09 | 146.22 | 0.3099 | 1082.0 | 928.7 | |
| 5.00 | -17.00 | 2.61 | -17.00 | -12.19 | 269.16 | -10.20 | 146.79 | 0.3175 | 1032.1 | 999999 | |
| 1.18 | -17.00 | 0.62 | -17.00 | -11.84 | 269.08 | -10.29 | 145.95 | 0.3135 | 1239.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -10.96 | 269.02 | -10.35 | 144.12 | 0.3021 | 210.0 | 188.5 | |
| 2.91 | -17.00 | 1.52 | -17.00 | -12.03 | 268.95 | -10.42 | 145.96 | 0.3173 | 868.9 | 999999 | |
| 39.42 | -17.00 | 20.40 | -17.00 | -10.05 | 268.99 | -10.38 | 142.15 | 0.2904 | 1450.0 | 999999 | |
| 1.73 | 2.63 | 0.92 | 1.40 | -15.61 | 268.75 | -10.62 | 151.09 | 0.3687 | 1021.7 | 801.6 | |
| 2.00 | -17.00 | 1.04 | -17.00 | -11.62 | 268.90 | -10.47 | 145.08 | 0.3122 | 971.0 | 999999 | |
| 2.09 | -17.00 | 1.09 | -17.00 | -12.00 | 268.79 | -10.58 | 145.50 | 0.3184 | 733.3 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.21 | -15.67 | 268.58 | -10.79 | 150.81 | 0.3710 | 458.0 | 525.2 | |
| 8.90 | -17.00 | 4.64 | -17.00 | -11.41 | 268.72 | -10.65 | 144.20 | 0.3110 | 1067.0 | 999999 | |
| 11.72 | -17.00 | 6.14 | -17.00 | -12.35 | 268.65 | -10.72 | 145.78 | 0.3245 | 81.5 | 999999 | |
| 3.27 | -17.00 | 1.69 | -17.00 | -10.09 | 268.67 | -10.69 | 141.40 | 0.2941 | 1164.8 | 999999 | |
| 7.90 | -17.00 | 4.12 | -17.00 | -11.31 | 268.41 | -10.96 | 143.24 | 0.3129 | 769.0 | 999999 | |
| 4.72 | -17.00 | 2.46 | -17.00 | -10.78 | 268.33 | -11.03 | 141.98 | 0.3066 | 1029.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -13.56 | 268.15 | -11.22 | 146.64 | 0.3455 | -938.0 | -783.9 | |
| 2.82 | 11.72 | 1.49 | 6.20 | -13.85 | 267.88 | -11.49 | 146.49 | 0.3519 | -1158.5 | -851.7 | |
| 0.64 | -43.00 | 0.34 | -43.00 | -13.95 | 267.68 | -11.69 | 146.20 | 0.3550 | -1129.9 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -10.66 | 267.77 | -11.60 | 140.34 | 0.3110 | 822.0 | 715.6 | |
| 1.91 | -17.00 | 1.00 | -17.00 | -12.43 | 267.66 | -11.71 | 143.54 | 0.3349 | -1243.1 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.49 | -14.14 | 267.54 | -11.83 | 146.20 | 0.3588 | -669.0 | -637.9 | |
| 0.00 | 5.45 | 0.00 | 2.84 | -10.44 | 267.56 | -11.81 | 139.37 | 0.3105 | 639.0 | 601.8 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -10.60 | 267.42 | -11.95 | 139.39 | 0.3139 | 650.0 | 488.9 | |
| 49.42 | -17.00 | 26.06 | -17.00 | -12.81 | 267.23 | -12.14 | 143.24 | 0.3442 | -1347.8 | 999999 | |
| 0.00 | 3.72 | 0.00 | 1.94 | -10.01 | 267.10 | -12.27 | 137.35 | 0.3102 | 793.0 | 586.7 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -8.35 | 267.16 | -12.21 | 133.56 | 0.2900 | 865.0 | 651.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -7.73 | 267.08 | -12.28 | 131.78 | 0.2840 | 852.0 | 629.6 | |
| 0.00 | 4.81 | 0.00 | 2.57 | -14.38 | 266.72 | -12.65 | 144.80 | 0.3695 | -406.0 | -757.3 | |
| 1.09 | -17.00 | 0.57 | -17.00 | -12.28 | 266.80 | -12.56 | 141.32 | 0.3416 | -1059.5 | 999999 | |
| 0.82 | -17.00 | 0.43 | -17.00 | -12.56 | 266.76 | -12.61 | 141.75 | 0.3457 | -955.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -8.36 | 266.84 | -12.53 | 132.84 | 0.2939 | 1035.0 | 904.3 | |
| 0.91 | -17.00 | 0.48 | -17.00 | -12.75 | 266.62 | -12.75 | 141.80 | 0.3495 | -825.5 | 999999 | |
| 8.27 | 14.72 | 4.29 | 7.64 | -8.86 | 266.73 | -12.64 | 133.83 | 0.3010 | 1147.3 | 797.2 | |
| 0.00 | 5.27 | 0.00 | 2.76 | -10.83 | 266.65 | -12.72 | 138.10 | 0.3252 | -795.0 | -448.3 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -8.42 | 266.68 | -12.69 | 132.64 | 0.2966 | 710.0 | 645.8 | |
| 0.00 | 3.54 | 0.00 | 1.84 | -8.17 | 266.60 | -12.77 | 131.82 | 0.2949 | 524.0 | 654.9 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -14.41 | 266.27 | -13.10 | 143.91 | 0.3742 | -773.0 | -615.8 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -8.92 | 266.51 | -12.86 | 133.48 | 0.3044 | 445.0 | 540.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -10.24 | 266.45 | -12.91 | 136.39 | 0.3203 | 718.0 | 561.1 | |
| 1.27 | 2.54 | 0.69 | 1.38 | -16.64 | 265.99 | -13.38 | 146.73 | 0.4058 | -1027.9 | -844.0 | |
| 1.82 | 5.27 | 0.95 | 2.76 | -10.39 | 266.26 | -13.11 | 136.31 | 0.3244 | 871.3 | 389.6 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -10.87 | 266.17 | -13.20 | 137.13 | 0.3310 | -155.0 | -107.0 | |
| 0.00 | 3.00 | 0.00 | 1.63 | -16.67 | 265.76 | -13.61 | 146.33 | 0.4083 | -770.0 | -561.7 | |
| 4.54 | 12.45 | 2.36 | 6.47 | -8.74 | 266.13 | -13.23 | 132.23 | 0.3069 | 1064.1 | 662.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -7.56 | 266.11 | -13.26 | 129.16 | 0.2945 | 734.0 | 656.2 | |
| 2.91 | 7.72 | 1.52 | 4.03 | -9.40 | 266.01 | -13.36 | 133.54 | 0.3157 | 1121.1 | 846.1 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -14.36 | 265.53 | -13.84 | 142.32 | 0.3808 | -834.0 | -676.4 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -16.52 | 265.38 | -13.99 | 145.38 | 0.4097 | -777.0 | -651.6 | |
| 0.00 | 8.36 | 0.00 | 4.36 | -8.81 | 265.75 | -13.62 | 131.58 | 0.3124 | 378.0 | 466.6 | |
| 0.82 | 2.36 | 0.43 | 1.24 | -10.50 | 265.65 | -13.72 | 135.23 | 0.3326 | 781.6 | 620.0 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -16.71 | 265.23 | -14.14 | 145.39 | 0.4135 | -737.0 | -617.5 | |
| 0.00 | 3.45 | 0.00 | 1.85 | -14.33 | 265.24 | -14.13 | 141.70 | 0.3833 | -937.0 | -652.0 | |
| 6.00 | 8.54 | 3.13 | 4.46 | -9.22 | 265.48 | -13.89 | 132.00 | 0.3202 | 935.6 | 711.2 | |
| 4.45 | 12.35 | 2.34 | 6.49 | -10.03 | 265.16 | -14.21 | 133.22 | 0.3332 | 1024.7 | 688.7 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -15.20 | 264.69 | -14.68 | 142.08 | 0.3996 | -848.0 | -628.9 | |
| 0.36 | 2.00 | 0.19 | 1.05 | -9.32 | 264.93 | -14.43 | 131.15 | 0.3281 | 919.2 | 676.4 | |
| 1.64 | 5.00 | 0.86 | 2.63 | -9.88 | 264.88 | -14.49 | 132.32 | 0.3349 | 1036.1 | 677.1 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -12.84 | 264.59 | -14.78 | 137.82 | 0.3720 | -757.0 | -562.5 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -13.61 | 264.47 | -14.89 | 138.99 | 0.3823 | -1016.0 | -757.8 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -15.47 | 264.21 | -15.16 | 141.62 | 0.4076 | -1002.0 | -741.1 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -14.54 | 264.15 | -15.22 | 139.99 | 0.3969 | -935.0 | -828.9 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -13.71 | 264.21 | -15.16 | 138.67 | 0.3863 | -680.0 | -512.7 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -14.73 | 264.04 | -15.33 | 140.11 | 0.4004 | -990.0 | -812.6 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -15.41 | 263.92 | -15.45 | 141.00 | 0.4097 | -882.0 | -658.4 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -14.57 | 263.85 | -15.52 | 139.51 | 0.4004 | -683.0 | -533.0 | |
| 0.64 | 2.63 | 0.34 | 1.43 | -14.80 | 263.80 | -15.56 | 139.80 | 0.4036 | -876.3 | -655.0 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -16.41 | 263.44 | -15.92 | 141.73 | 0.4267 | -717.0 | -505.2 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -7.69 | 261.51 | -17.86 | 121.48 | 0.3579 | -769.0 | -625.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
