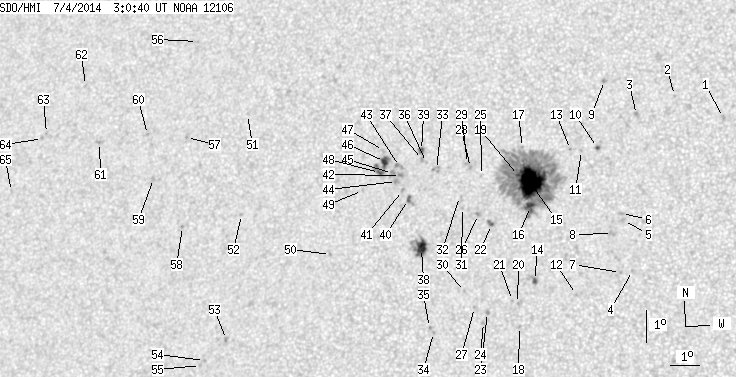

SDO HMI 2014-07-04 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.40 | 434.37 | 42.47 | 233.30 | 15.34 | 260.35 | -19.02 | 55.39 | 0.3822 | -440.2 | -207.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 0.95 | 17.76 | 267.92 | -11.45 | 36.81 | 0.3168 | -882.0 | -691.3 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 18.44 | 266.26 | -13.10 | 39.14 | 0.3422 | -701.0 | -480.1 | |
| 0.00 | 2.63 | 0.00 | 1.39 | 17.83 | 265.06 | -14.31 | 42.79 | 0.3479 | -852.0 | -689.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 12.96 | 265.26 | -14.11 | 54.21 | 0.2941 | -791.0 | -640.8 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 14.51 | 264.88 | -14.49 | 50.77 | 0.3141 | -917.0 | -781.4 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 14.72 | 264.80 | -14.57 | 50.37 | 0.3173 | -844.0 | -723.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 12.89 | 264.88 | -14.49 | 55.10 | 0.2987 | -946.0 | -749.4 | |
| 0.00 | 4.27 | 0.00 | 2.23 | 14.10 | 264.54 | -14.82 | 52.43 | 0.3144 | -916.0 | -774.2 | |
| 0.00 | 2.09 | 0.00 | 1.11 | 18.89 | 263.90 | -15.47 | 42.82 | 0.3728 | -923.0 | -793.4 | |
| 0.64 | 1.54 | 0.34 | 0.82 | 16.77 | 263.85 | -15.51 | 47.25 | 0.3502 | -890.6 | -679.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 16.67 | 263.33 | -16.03 | 48.38 | 0.3555 | 829.0 | 582.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 12.20 | 263.50 | -15.87 | 59.34 | 0.3121 | -787.0 | -566.3 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 16.70 | 262.97 | -16.40 | 48.93 | 0.3602 | 685.0 | 552.6 | |
| 1.18 | 5.00 | 0.62 | 2.63 | 12.61 | 262.10 | -17.27 | 60.19 | 0.3353 | -1102.0 | -766.4 | |
| 48.51 | 286.96 | 25.81 | 152.79 | 15.65 | 261.73 | -17.64 | 53.22 | 0.3658 | -1425.5 | -364.8 | |
| 6.45 | -15.00 | 3.42 | -15.00 | 14.90 | 261.80 | -17.57 | 54.86 | 0.3583 | -1109.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 16.74 | 261.36 | -18.00 | 51.35 | 0.3806 | -368.0 | -267.8 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 11.18 | 261.70 | -17.66 | 64.57 | 0.3310 | -851.0 | -587.6 | |
| 1.36 | -15.00 | 0.73 | -15.00 | 15.86 | 261.31 | -18.05 | 53.35 | 0.3732 | -944.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 11.89 | 261.59 | -17.77 | 62.77 | 0.3374 | -953.0 | -780.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 11.98 | 261.42 | -17.94 | 62.73 | 0.3405 | -696.0 | -575.5 | |
| 0.64 | 3.45 | 0.34 | 1.84 | 14.32 | 260.55 | -18.82 | 57.93 | 0.3704 | -982.1 | -793.7 | |
| 0.00 | 2.00 | 0.00 | 1.06 | 11.60 | 260.63 | -18.74 | 64.67 | 0.3497 | -890.0 | -768.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 11.29 | 260.52 | -18.85 | 65.61 | 0.3494 | -652.0 | -553.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 15.84 | 260.08 | -19.29 | 55.08 | 0.3892 | -533.0 | -435.6 | |
| 0.00 | 2.09 | 0.00 | 1.12 | 14.62 | 260.09 | -19.28 | 57.80 | 0.3791 | -942.0 | -677.4 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 11.74 | 260.19 | -19.18 | 64.75 | 0.3571 | -690.0 | -594.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 16.08 | 259.68 | -19.69 | 55.06 | 0.3965 | 816.0 | 706.6 | |
| 0.00 | 2.00 | 0.00 | 1.08 | 16.21 | 259.57 | -19.80 | 54.94 | 0.3990 | 613.0 | 487.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 12.23 | 259.82 | -19.54 | 63.90 | 0.3656 | -830.0 | -669.2 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 14.83 | 259.54 | -19.83 | 58.01 | 0.3883 | -678.0 | -540.2 | |
| 0.00 | 0.55 | 0.00 | 0.29 | 15.17 | 259.40 | -19.96 | 57.40 | 0.3928 | -233.0 | -321.0 | |
| 0.00 | 4.18 | 0.00 | 2.27 | 16.00 | 258.54 | -20.83 | 56.63 | 0.4110 | 477.0 | 670.2 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 10.95 | 258.89 | -20.48 | 68.05 | 0.3719 | -736.0 | -615.1 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 11.10 | 258.75 | -20.62 | 67.80 | 0.3748 | -646.0 | -573.0 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 16.21 | 258.18 | -21.19 | 56.60 | 0.4175 | 702.0 | 470.1 | |
| 0.00 | 2.27 | 0.00 | 1.24 | 16.30 | 258.03 | -21.34 | 56.58 | 0.4201 | 772.0 | 702.2 | |
| 10.90 | 23.35 | 5.88 | 12.60 | 13.54 | 258.28 | -21.09 | 62.37 | 0.3965 | -1054.5 | -483.0 | |
| 1.73 | 3.45 | 0.94 | 1.89 | 16.59 | 257.96 | -21.40 | 56.08 | 0.4232 | 802.7 | 642.2 | |
| 1.36 | 4.81 | 0.74 | 2.62 | 15.05 | 257.69 | -21.68 | 59.61 | 0.4152 | 1046.2 | 751.6 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 15.32 | 257.46 | -21.91 | 59.27 | 0.4204 | 920.0 | 760.6 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 15.79 | 257.34 | -22.03 | 58.41 | 0.4255 | 1116.0 | 983.1 | |
| 0.00 | 4.18 | 0.00 | 2.29 | 16.07 | 257.27 | -22.10 | 57.90 | 0.4285 | 773.0 | 768.3 | |
| 0.00 | 2.63 | 0.00 | 1.44 | 15.60 | 257.22 | -22.14 | 58.93 | 0.4256 | 1000.0 | 823.3 | |
| 0.00 | 4.00 | 0.00 | 2.19 | 15.85 | 257.06 | -22.31 | 58.59 | 0.4297 | 871.0 | 877.8 | |
| 4.81 | 17.17 | 2.65 | 9.45 | 16.22 | 256.74 | -22.63 | 58.16 | 0.4367 | 974.6 | 748.1 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 16.56 | 256.66 | -22.70 | 57.55 | 0.4402 | 530.0 | 426.5 | |
| 1.82 | -46.00 | 1.00 | -46.00 | 15.87 | 256.61 | -22.76 | 59.00 | 0.4359 | 968.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 15.30 | 256.09 | -23.28 | 60.69 | 0.4389 | 697.0 | 487.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 13.29 | 255.21 | -24.15 | 65.68 | 0.4388 | -743.0 | -592.7 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 17.58 | 251.72 | -27.65 | 60.08 | 0.5124 | 380.0 | 354.9 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 14.46 | 251.97 | -27.40 | 65.69 | 0.4909 | 703.0 | 505.9 | |
| 0.00 | 2.18 | 0.00 | 1.23 | 10.59 | 251.88 | -27.48 | 73.45 | 0.4752 | 885.0 | 752.8 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 9.92 | 251.17 | -28.19 | 75.12 | 0.4835 | 789.0 | 594.0 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 9.77 | 251.05 | -28.32 | 75.49 | 0.4849 | 545.0 | 478.8 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 19.84 | 249.46 | -29.91 | 57.96 | 0.5554 | 625.0 | 463.0 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 16.81 | 249.63 | -29.74 | 62.96 | 0.5352 | 862.0 | 627.7 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 14.03 | 249.91 | -29.45 | 67.77 | 0.5174 | 862.0 | 752.6 | |
| 0.00 | 1.91 | 0.00 | 1.12 | 15.50 | 248.63 | -30.73 | 65.87 | 0.5417 | 701.0 | 581.4 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 16.86 | 248.17 | -31.19 | 63.79 | 0.5546 | 744.0 | 557.4 | |
| 0.00 | 3.45 | 0.00 | 2.09 | 16.56 | 246.42 | -32.94 | 65.30 | 0.5759 | 762.0 | 448.7 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 18.34 | 245.52 | -33.85 | 62.93 | 0.5959 | 620.0 | 429.8 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 16.79 | 244.34 | -35.03 | 66.00 | 0.6037 | 714.0 | 555.1 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 16.63 | 244.22 | -35.15 | 66.31 | 0.6046 | 671.0 | 553.5 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 14.94 | 243.35 | -36.02 | 69.38 | 0.6093 | 583.0 | 472.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
