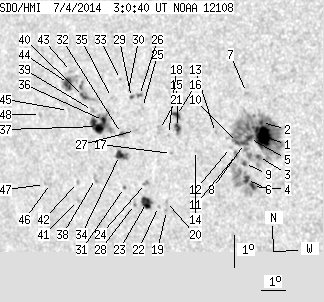

SDO HMI 2014-07-04 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.19 | 353.40 | 59.60 | 233.58 | -7.75 | 239.42 | -39.94 | 105.63 | 0.6620 | 20.8 | 76.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.16 | 173.05 | 16.62 | 110.25 | -7.56 | 242.07 | -37.29 | 106.27 | 0.6279 | 1114.5 | 387.0 | |
| 1.18 | -1.00 | 0.75 | -1.00 | -7.12 | 242.04 | -37.33 | 105.58 | 0.6269 | 787.8 | 999999 | |
| 1.00 | -1.00 | 0.64 | -1.00 | -8.19 | 241.81 | -37.56 | 107.13 | 0.6336 | 821.7 | 999999 | |
| 2.82 | 36.34 | 1.81 | 23.51 | -9.13 | 241.46 | -37.90 | 108.41 | 0.6415 | 877.0 | 139.4 | |
| 3.63 | -1.00 | 2.33 | -1.00 | -7.64 | 241.52 | -37.85 | 106.17 | 0.6354 | 694.5 | 999999 | |
| 2.63 | -4.00 | 1.70 | -4.00 | -8.92 | 241.25 | -38.11 | 108.00 | 0.6434 | 827.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -6.21 | 241.54 | -37.83 | 103.98 | 0.6305 | 624.0 | 562.5 | |
| 2.54 | -1.00 | 1.63 | -1.00 | -7.80 | 241.31 | -38.06 | 106.33 | 0.6387 | 632.1 | 999999 | |
| 1.00 | 2.36 | 0.64 | 1.52 | -8.42 | 241.24 | -38.13 | 107.25 | 0.6418 | 716.3 | 516.1 | |
| 1.54 | -1.00 | 1.00 | -1.00 | -7.78 | 241.04 | -38.33 | 106.19 | 0.6422 | 323.1 | 999999 | |
| 0.00 | 3.18 | 0.00 | 2.06 | -8.15 | 240.95 | -38.41 | 106.73 | 0.6445 | 579.0 | 455.5 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -7.94 | 240.74 | -38.63 | 106.33 | 0.6465 | 235.0 | 126.5 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -7.50 | 240.20 | -39.17 | 105.45 | 0.6520 | -812.0 | -658.5 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -8.09 | 239.33 | -40.04 | 106.01 | 0.6649 | -676.0 | -564.9 | |
| 3.18 | 6.36 | 2.12 | 4.24 | -7.40 | 238.68 | -40.69 | 104.77 | 0.6709 | 507.8 | -15.5 | |
| 3.18 | 4.91 | 2.12 | 3.26 | -7.02 | 238.68 | -40.69 | 104.23 | 0.6698 | 744.6 | 506.6 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -8.21 | 238.34 | -41.03 | 105.84 | 0.6777 | -690.0 | -571.5 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -7.63 | 238.29 | -41.08 | 104.97 | 0.6765 | 227.0 | 135.3 | |
| 0.00 | 1.18 | 0.00 | 0.81 | -10.01 | 237.87 | -41.50 | 108.21 | 0.6892 | -740.0 | -673.2 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -9.72 | 237.92 | -41.45 | 107.83 | 0.6877 | -663.0 | -542.8 | |
| 0.00 | 4.91 | 0.00 | 3.31 | -7.48 | 237.93 | -41.43 | 104.65 | 0.6805 | -261.0 | -198.2 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -9.89 | 237.56 | -41.81 | 107.93 | 0.6926 | -715.0 | -546.7 | |
| 8.36 | 10.81 | 5.76 | 7.46 | -9.79 | 237.07 | -42.29 | 107.60 | 0.6980 | -738.2 | -414.5 | |
| 0.00 | 2.91 | 0.00 | 2.00 | -9.19 | 237.12 | -42.24 | 106.79 | 0.6955 | -754.0 | -640.8 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -6.83 | 237.31 | -42.06 | 103.51 | 0.6864 | 429.0 | 300.1 | |
| 0.82 | 2.63 | 0.56 | 1.79 | -6.46 | 237.22 | -42.15 | 102.96 | 0.6865 | 692.3 | 537.0 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -7.55 | 236.93 | -42.44 | 104.42 | 0.6930 | -211.0 | -200.7 | |
| 0.00 | 1.73 | 0.00 | 1.20 | -9.87 | 236.55 | -42.81 | 107.53 | 0.7044 | 655.0 | 513.7 | |
| 0.64 | 1.54 | 0.43 | 1.06 | -6.53 | 236.88 | -42.49 | 102.96 | 0.6909 | 456.7 | 316.9 | |
| 0.00 | 0.55 | 0.00 | 0.37 | -6.32 | 236.78 | -42.59 | 102.63 | 0.6916 | 472.0 | 367.0 | |
| 0.45 | 1.00 | 0.32 | 0.70 | -9.35 | 236.21 | -43.15 | 106.69 | 0.7069 | 423.0 | 319.0 | |
| 1.00 | 4.36 | 0.69 | 3.02 | -7.67 | 236.33 | -43.04 | 104.40 | 0.7006 | -863.1 | -661.1 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -5.99 | 236.48 | -42.89 | 102.08 | 0.6945 | 503.0 | 396.8 | |
| 4.54 | 8.54 | 3.16 | 5.94 | -8.36 | 236.15 | -43.22 | 105.30 | 0.7047 | -762.8 | -671.7 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -6.56 | 236.04 | -43.33 | 102.77 | 0.7013 | -363.0 | -318.6 | |
| 3.54 | 32.34 | 2.48 | 22.66 | -7.29 | 235.61 | -43.76 | 103.66 | 0.7083 | -969.2 | -555.2 | |
| 12.26 | -36.00 | 8.63 | -36.00 | -7.49 | 235.33 | -44.04 | 103.85 | 0.7122 | -769.7 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.75 | -9.12 | 235.01 | -44.36 | 105.97 | 0.7204 | -421.0 | -509.5 | |
| 0.00 | 3.00 | 0.00 | 2.11 | -7.00 | 235.17 | -44.19 | 103.13 | 0.7127 | -815.0 | -607.7 | |
| 2.18 | 12.17 | 1.54 | 8.59 | -6.58 | 234.84 | -44.53 | 102.46 | 0.7158 | -856.6 | -639.6 | |
| 0.00 | 1.36 | 0.00 | 0.99 | -9.84 | 234.14 | -45.23 | 106.66 | 0.7324 | -677.0 | -564.5 | |
| 0.00 | 1.64 | 0.00 | 1.18 | -9.27 | 234.19 | -45.17 | 105.92 | 0.7302 | -766.0 | -567.3 | |
| 0.00 | 2.54 | 0.00 | 1.81 | -5.83 | 234.40 | -44.97 | 101.31 | 0.7193 | -429.0 | -360.7 | |
| 6.54 | 14.99 | 4.67 | 10.68 | -6.20 | 234.23 | -45.14 | 101.78 | 0.7221 | -851.6 | -529.9 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -7.04 | 234.13 | -45.24 | 102.90 | 0.7252 | -556.0 | -445.9 | |
| 0.00 | 0.55 | 0.00 | 0.40 | -9.35 | 232.98 | -46.39 | 105.66 | 0.7442 | -120.0 | -131.8 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -9.40 | 232.70 | -46.67 | 105.63 | 0.7474 | -523.0 | -523.4 | |
| 0.00 | 1.82 | 0.00 | 1.33 | -7.22 | 232.86 | -46.50 | 102.80 | 0.7403 | -411.0 | -418.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
