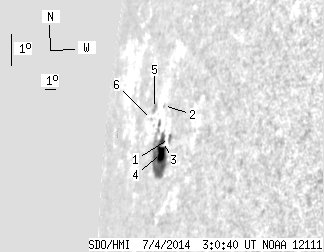

SDO HMI 2014-07-04 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.99 | 63.05 | 23.76 | 127.15 | 5.93 | 203.60 | -75.77 | 84.69 | 0.9693 | -277.9 | 11.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.18 | 0.00 | 5.94 | 6.25 | 204.46 | -74.90 | 84.39 | 0.9655 | -574.0 | -477.6 | |
| 0.00 | 0.73 | 0.00 | 1.47 | 7.20 | 203.28 | -76.09 | 83.38 | 0.9706 | -85.0 | -103.4 | |
| 2.18 | 55.05 | 4.33 | 110.80 | 6.11 | 203.66 | -75.71 | 84.51 | 0.9691 | -213.6 | 23.7 | |
| 9.81 | -3.00 | 19.43 | -3.00 | 5.74 | 203.68 | -75.69 | 84.89 | 0.9690 | -350.8 | 999999 | |
| 0.00 | 3.82 | 0.00 | 8.33 | 7.05 | 202.14 | -77.23 | 83.50 | 0.9752 | 308.0 | 228.6 | |
| 0.00 | 0.27 | 0.00 | 0.61 | 6.69 | 201.90 | -77.47 | 83.86 | 0.9761 | 377.0 | 346.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
