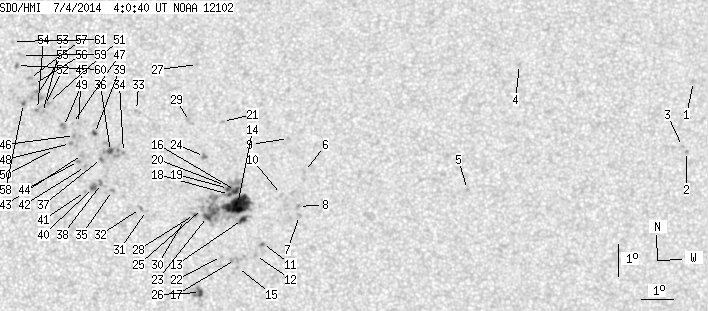

SDO HMI 2014-07-04 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.34 | 252.55 | 25.70 | 126.89 | 12.01 | 278.32 | -0.50 | 2.16 | 0.1622 | -229.0 | -141.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 1.24 | 14.96 | 294.32 | 15.50 | 308.54 | 0.3316 | -741.0 | -538.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 12.79 | 293.94 | 15.12 | 303.51 | 0.3065 | -847.0 | -685.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 12.95 | 293.82 | 15.00 | 304.15 | 0.3062 | -694.0 | -545.0 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 15.56 | 288.72 | 9.90 | 322.36 | 0.2725 | -871.0 | -718.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 11.70 | 286.92 | 8.10 | 317.09 | 0.2035 | -900.0 | -749.9 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.29 | 281.82 | 3.01 | 342.04 | 0.1669 | -771.0 | -633.1 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 10.94 | 281.65 | 2.83 | 340.17 | 0.1438 | -808.0 | -707.4 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 11.21 | 281.62 | 2.81 | 341.00 | 0.1481 | -900.0 | -777.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.31 | 281.34 | 2.52 | 346.32 | 0.1816 | -748.0 | -638.4 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 11.59 | 281.10 | 2.28 | 345.03 | 0.1516 | -904.0 | -683.3 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 10.08 | 280.50 | 1.68 | 346.46 | 0.1238 | -957.0 | -896.2 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 9.71 | 280.28 | 1.46 | 347.51 | 0.1167 | -1013.0 | -853.2 | |
| 3.45 | 115.56 | 1.73 | 57.83 | 10.82 | 279.88 | 1.06 | 352.17 | 0.1344 | -1084.2 | -688.4 | |
| 30.71 | -13.00 | 15.37 | -13.00 | 11.28 | 279.73 | 0.91 | 353.67 | 0.1420 | -1226.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 9.35 | 279.72 | 0.90 | 351.74 | 0.1086 | -824.0 | -559.1 | |
| 3.27 | -13.00 | 1.64 | -13.00 | 11.71 | 279.67 | 0.85 | 354.39 | 0.1494 | -1056.0 | 999999 | |
| 0.00 | 5.54 | 0.00 | 2.76 | 9.59 | 279.66 | 0.84 | 352.59 | 0.1127 | -567.0 | -785.4 | |
| 1.00 | -13.00 | 0.50 | -13.00 | 11.59 | 279.48 | 0.66 | 355.56 | 0.1470 | -1185.5 | 999999 | |
| 1.64 | -13.00 | 0.82 | -13.00 | 11.78 | 279.45 | 0.63 | 355.85 | 0.1501 | -989.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 11.87 | 279.36 | 0.54 | 356.50 | 0.1516 | -547.0 | -591.3 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 13.85 | 279.27 | 0.45 | 357.63 | 0.1857 | 734.0 | 438.9 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 9.69 | 279.23 | 0.41 | 356.43 | 0.1136 | -730.0 | -552.1 | |
| 3.09 | -13.00 | 1.54 | -13.00 | 10.91 | 278.80 | -0.02 | 0.16 | 0.1348 | -1004.5 | 999999 | |
| 0.00 | 3.18 | 0.00 | 1.60 | 12.76 | 278.70 | -0.11 | 0.67 | 0.1669 | -1091.0 | -839.3 | |
| 0.00 | 3.36 | 0.00 | 1.68 | 11.16 | 278.64 | -0.18 | 1.26 | 0.1391 | -284.0 | -404.9 | |
| 2.27 | 9.36 | 1.13 | 4.66 | 8.58 | 278.58 | -0.24 | 2.54 | 0.0943 | -1224.7 | -834.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 15.62 | 278.49 | -0.33 | 1.49 | 0.2161 | -651.0 | -514.8 | |
| 0.36 | 3.45 | 0.18 | 1.73 | 10.98 | 278.39 | -0.43 | 3.09 | 0.1361 | -972.2 | -679.9 | |
| 0.00 | 4.18 | 0.00 | 2.11 | 13.85 | 278.23 | -0.58 | 3.07 | 0.1858 | -634.0 | -631.6 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 10.82 | 278.08 | -0.74 | 5.44 | 0.1338 | -883.0 | -608.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 11.10 | 276.90 | -1.92 | 13.43 | 0.1419 | 527.0 | 401.2 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 11.16 | 276.72 | -2.10 | 14.58 | 0.1437 | 784.0 | 664.0 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 14.19 | 276.57 | -2.25 | 11.30 | 0.1952 | -788.0 | -657.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 12.89 | 276.17 | -2.65 | 14.98 | 0.1750 | 882.0 | 781.2 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 11.71 | 275.84 | -2.98 | 18.97 | 0.1573 | 1049.0 | 775.5 | |
| 1.91 | 14.54 | 0.96 | 7.32 | 12.92 | 275.76 | -3.05 | 17.10 | 0.1774 | 1223.7 | 819.6 | |
| 0.00 | 2.73 | 0.00 | 1.37 | 12.70 | 275.49 | -3.33 | 18.96 | 0.1754 | 1166.0 | 917.3 | |
| 0.00 | 3.45 | 0.00 | 1.73 | 11.93 | 275.49 | -3.32 | 20.49 | 0.1628 | 1047.0 | 834.1 | |
| 1.18 | 2.54 | 0.60 | 1.28 | 13.47 | 275.26 | -3.56 | 18.71 | 0.1892 | 1107.6 | 870.9 | |
| 1.82 | 4.00 | 0.91 | 2.01 | 11.81 | 275.25 | -3.57 | 22.17 | 0.1624 | 1116.9 | 956.9 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 11.68 | 275.00 | -3.82 | 23.86 | 0.1621 | 1002.0 | 779.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.45 | 274.99 | -3.83 | 22.07 | 0.1744 | 1015.0 | 786.0 | |
| 0.00 | 2.82 | 0.00 | 1.42 | 12.82 | 274.89 | -3.93 | 21.78 | 0.1809 | 911.0 | 757.7 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 12.61 | 274.77 | -4.05 | 22.86 | 0.1783 | 987.0 | 793.9 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 13.78 | 274.75 | -4.07 | 20.56 | 0.1971 | 892.0 | 730.9 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 13.41 | 274.63 | -4.19 | 21.84 | 0.1919 | 1034.0 | 895.4 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 13.78 | 274.56 | -4.26 | 21.43 | 0.1983 | 814.0 | 652.8 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 13.16 | 274.51 | -4.31 | 22.92 | 0.1888 | 996.0 | 857.3 | |
| 0.00 | 3.45 | 0.00 | 1.74 | 13.69 | 274.28 | -4.54 | 22.89 | 0.1986 | 1095.0 | 855.7 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 12.97 | 274.01 | -4.81 | 25.68 | 0.1894 | 839.0 | 636.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.43 | 273.79 | -5.03 | 23.53 | 0.2135 | 858.0 | 781.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 14.34 | 273.67 | -5.15 | 24.23 | 0.2130 | 904.0 | 813.2 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 14.12 | 273.61 | -5.21 | 24.91 | 0.2100 | 837.0 | 767.9 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 14.21 | 273.45 | -5.37 | 25.38 | 0.2126 | 971.0 | 851.8 | |
| 0.00 | 10.36 | 0.00 | 5.26 | 14.65 | 273.41 | -5.41 | 24.67 | 0.2196 | 198.0 | 715.3 | |
| 0.00 | 2.09 | 0.00 | 1.06 | 14.99 | 273.30 | -5.52 | 24.42 | 0.2256 | 777.0 | 626.0 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 15.18 | 273.17 | -5.65 | 24.57 | 0.2294 | 761.0 | 632.5 | |
| 0.64 | 1.91 | 0.32 | 0.97 | 14.40 | 273.00 | -5.82 | 26.79 | 0.2188 | 1065.6 | 859.2 | |
| 0.00 | 2.73 | 0.00 | 1.39 | 15.89 | 272.90 | -5.92 | 24.28 | 0.2424 | 442.0 | 331.2 | |
| 0.00 | 2.45 | 0.00 | 1.25 | 15.58 | 272.75 | -6.07 | 25.39 | 0.2386 | 941.0 | 698.0 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 16.33 | 272.60 | -6.22 | 24.57 | 0.2512 | 805.0 | 577.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
