SDO HMI 2014-07-04 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 145.82 | 781.21 | 84.10 | 451.92 | -19.27 | 257.29 | -21.53 | 137.68 | 0.5165 | 711.0 | 283.1 | |
|
previous
or next observation for the same group /

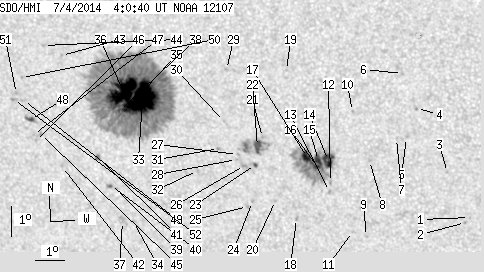

back to the solar disc SDO HMI 2014-07-04 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.20 | -22.67 | 267.27 | -11.54 | 157.02 | 0.4748 | 647.0 | 665.2 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -22.84 | 267.12 | -11.69 | 156.91 | 0.4781 | 670.0 | 557.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -21.16 | 266.67 | -12.15 | 154.49 | 0.4577 | 164.0 | 123.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -19.05 | 265.81 | -13.01 | 150.58 | 0.4350 | 777.0 | 580.6 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -20.01 | 265.40 | -13.42 | 150.96 | 0.4511 | 741.0 | 669.6 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -17.90 | 265.44 | -13.38 | 148.46 | 0.4226 | 778.0 | 570.0 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -20.05 | 265.06 | -13.76 | 150.40 | 0.4542 | 807.0 | 541.6 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -20.80 | 264.08 | -14.74 | 149.58 | 0.4716 | 808.0 | 631.8 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -23.36 | 263.70 | -15.12 | 151.74 | 0.5078 | 661.0 | 525.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -19.18 | 263.67 | -15.15 | 146.92 | 0.4540 | 722.0 | 551.7 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -23.20 | 263.23 | -15.58 | 150.85 | 0.5090 | 469.0 | 533.0 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -21.55 | 262.68 | -16.14 | 148.18 | 0.4924 | 685.0 | 602.5 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -21.86 | 262.61 | -16.21 | 148.42 | 0.4968 | 620.0 | 513.0 | |
| 11.45 | 100.75 | 6.47 | 57.14 | -20.82 | 262.69 | -16.13 | 147.33 | 0.4830 | 1101.0 | 273.6 | |
| 5.91 | -14.00 | 3.34 | -14.00 | -20.82 | 262.35 | -16.47 | 146.80 | 0.4859 | 1025.7 | 999999 | |
| 4.36 | -14.00 | 2.47 | -14.00 | -21.02 | 262.29 | -16.53 | 146.96 | 0.4889 | 861.0 | 999999 | |
| 9.63 | -14.00 | 5.46 | -14.00 | -20.73 | 261.99 | -16.83 | 146.12 | 0.4878 | 1001.8 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.05 | -22.79 | 261.35 | -17.47 | 147.59 | 0.5183 | -871.0 | -691.6 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -17.86 | 261.59 | -17.23 | 141.71 | 0.4568 | 746.0 | 549.2 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -22.19 | 260.70 | -18.11 | 145.97 | 0.5164 | -665.0 | -555.7 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -20.09 | 260.53 | -18.29 | 143.11 | 0.4930 | -1025.0 | -814.5 | |
| 5.63 | 27.35 | 3.21 | 15.62 | -20.39 | 260.32 | -18.50 | 143.19 | 0.4984 | -1059.7 | -764.2 | |
| 0.91 | 3.00 | 0.52 | 1.72 | -20.99 | 260.17 | -18.65 | 143.75 | 0.5068 | -822.6 | -689.5 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -22.24 | 259.90 | -18.92 | 144.88 | 0.5238 | -853.0 | -697.6 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -22.41 | 259.70 | -19.12 | 144.81 | 0.5275 | -639.0 | -540.1 | |
| 0.00 | 3.45 | 0.00 | 1.99 | -21.03 | 259.79 | -19.03 | 143.25 | 0.5107 | -807.0 | -690.9 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -20.67 | 259.59 | -19.22 | 142.52 | 0.5083 | -740.0 | -621.3 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -20.83 | 259.54 | -19.28 | 142.65 | 0.5107 | -571.0 | -524.7 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -17.86 | 259.57 | -19.25 | 138.64 | 0.4769 | 671.0 | 510.5 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -19.58 | 259.29 | -19.53 | 140.65 | 0.4988 | -657.0 | -504.3 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -20.48 | 258.96 | -19.86 | 141.40 | 0.5120 | -840.0 | -658.4 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -21.23 | 258.12 | -20.69 | 141.24 | 0.5282 | 697.0 | 559.7 | |
| 59.23 | 588.33 | 34.28 | 341.30 | -18.87 | 256.55 | -22.27 | 136.04 | 0.5187 | 1475.0 | 403.8 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -23.00 | 255.56 | -23.26 | 140.27 | 0.5709 | -735.0 | -583.2 | |
| 3.27 | -33.00 | 1.91 | -33.00 | -19.25 | 255.90 | -22.92 | 135.78 | 0.5292 | 916.2 | 999999 | |
| 41.61 | -33.00 | 24.15 | -33.00 | -18.66 | 255.92 | -22.90 | 134.96 | 0.5231 | 1256.2 | 999999 | |
| 0.00 | 5.91 | 0.00 | 3.57 | -23.01 | 255.16 | -23.66 | 139.82 | 0.5747 | -919.0 | -642.3 | |
| 0.27 | -33.00 | 0.16 | -33.00 | -19.29 | 255.68 | -23.14 | 135.57 | 0.5318 | 625.3 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -21.90 | 255.11 | -23.71 | 138.37 | 0.5638 | -826.0 | -674.4 | |
| 0.55 | 2.36 | 0.33 | 1.42 | -21.80 | 254.95 | -23.87 | 138.06 | 0.5644 | -774.7 | -687.0 | |
| 0.91 | 3.00 | 0.54 | 1.79 | -20.87 | 254.65 | -24.17 | 136.51 | 0.5581 | 899.9 | 698.3 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -21.20 | 253.32 | -25.49 | 135.48 | 0.5745 | -503.0 | -438.0 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -17.53 | 253.91 | -24.91 | 130.98 | 0.5342 | -842.0 | -644.2 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -17.21 | 253.32 | -25.50 | 129.88 | 0.5380 | -640.0 | -543.0 | |
| 0.00 | 1.64 | 0.00 | 0.98 | -20.15 | 252.72 | -26.10 | 133.44 | 0.5709 | -888.0 | -698.5 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -20.35 | 252.50 | -26.32 | 133.49 | 0.5750 | -857.0 | -623.2 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -20.16 | 252.47 | -26.35 | 133.18 | 0.5736 | -718.0 | -594.2 | |
| 2.09 | 5.54 | 1.26 | 3.33 | -19.66 | 252.45 | -26.37 | 132.48 | 0.5693 | -977.7 | -722.4 | |
| 0.00 | 2.00 | 0.00 | 1.20 | -19.04 | 252.31 | -26.51 | 131.47 | 0.5653 | -671.0 | -617.7 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -18.28 | 252.36 | -26.46 | 130.45 | 0.5580 | -862.0 | -628.4 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -18.81 | 252.09 | -26.73 | 130.93 | 0.5656 | -781.0 | -703.9 | |
| 0.00 | 2.00 | 0.00 | 1.20 | -19.01 | 251.95 | -26.87 | 131.07 | 0.5690 | -726.0 | -659.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
